PROFINET to RS232-422-485/ Modbus
Part No.: MPADFW-PROFINET-to-RS232-422-485-Modbus
This series of products allows to integrate a PROFINET network with a serial RS232, RS485 or RS422 net.
產品介紹
PROFINET / Modbus - Converter
This series of products allows to integrate a PROFINET network with a serial RS232, RS485 or RS422 net. On serial side, it is possible to use Modbus protocol or generic RS232/RS485/RS422 communication.
The HD67601 is a PROFINET / Serial Converter and it allows you to connect some PROFINET devices (for example a SIEMENS PLC..) with a serial net in order to exchange the informations between the networks.
The HD67602 is a PROFINET / Modbus Master Converter and it allows you to connect some Modbus slaves with an existing PROFINET network (for example a SIEMENS PLC..).

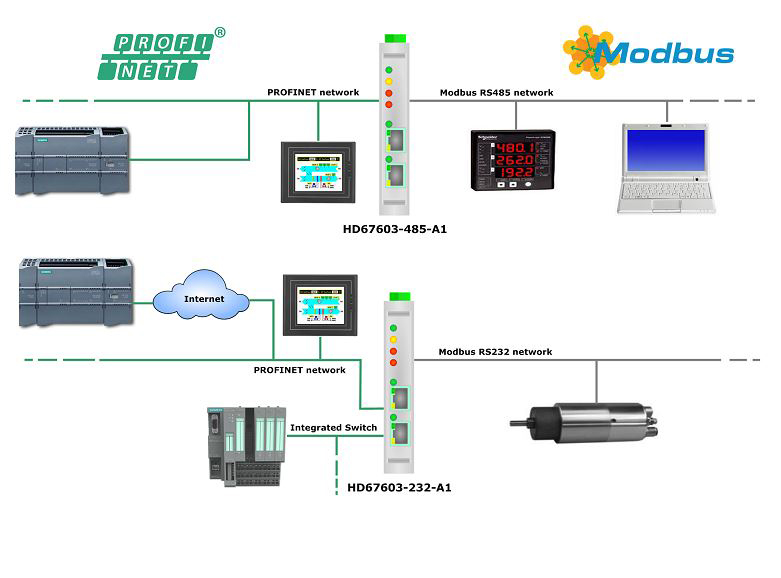

The HD67603 is a PROFINET / Modbus Slave Converter and it allows you to connect a PROFINET network (for example a SIEMENS PLC..) with a Modbus Master (for example a PLC, HMI..) in order to exchange the informations between the networks.
The HD67B70 is a PROFINET Master / Serial Converter and it allows you to connect some PROFINET devices with a serial net in order to exchange the informations between the networks.
The HD67B71 is a PROFINET Master / Modbus Slave Converter and it allows you to connect a PROFINET network with a Modbus Master (for example a PLC, HMI..) in order to exchange the informations between the networks.
In all devices are installed 2 LAN ports with RJ45 connectors that allow you to not use the switch and extend the PROFINET line.
The converters are available also in another version, ideal for STRONG applications.
The corresponding models are:
- HD674-A022 - PROFINET / Serial (RS232/RS485), STRONG Converter
- HD674-A006 - PROFINET / Modbus Master, STRONG Converter
- HD674-A007 - PROFINET / Modbus Slave, STRONG Converter
These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between Ethernet/Serial - Ethernet/Power Supply - Serial/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40 C to +105 C, features required by AUTOMOTIVE applications.
Series PROFINET from/to Modbus Master
HD67602-232-A1
PROFINET / Modbus Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS232; 2xPROFINET | |
|---|---|---|
| Data Rates Serial | Up to 115200bps | |
| Data Rates PROFINET | 100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
|
Mechanical Fixing
|
35mm DIN Rail montage | |
| Software | SW67602 | |
HD67602-485-A1
PROFINET / Modbus Master - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 2xPROFINET | |
|---|---|---|
| Data Rates Serial | Up to 115200bps | |
| Data Rates PROFINET | 100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67602 | |
PROFINET / Modbus Master Converter
Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between PROFINET / Modbus - Modbus / Power Supply – PROFINET / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.
HD674-A006-2-E4V
PROFINET / Modbus Master Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )
| Ports | 1xRS232, 1xEthernet | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way Mini-Fit® | |
| PROFINET Connector | RJ45 | |
| Power Supply Connector | 2way Mini-Fit® | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40°C/+105°C (-40°F/+221°F) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A006 | |
HD674-A006-2-E4R
PROFINET / Modbus Master Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
| Ports | 1xRS232, 1xEthernet | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way Mini-Fit® | |
| PROFINET Connector | RJ45 | |
| Power Supply Connector | 2way Mini-Fit® | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40°C/+105°C (-40°F/+221°F) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A006 | |
HD674-A006-2-E7V
PROFINET / Modbus Master Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )
| Ports | 1xRS232, 1xEthernet | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way SuperSeal 1.5 | |
| PROFINET Connector | 4way SuperSeal 1.5 | |
| Power Supply Connector | 2way SuperSeal 1.5 | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40ºC/+105ºC (-40ºF/+221ºF) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A006 | |
HD674-A006-2-E7R
PROFINET / Modbus Master Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
| Ports | 1xRS232, 1xEthernet | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way SuperSeal 1.5 | |
| PROFINET Connector | 4way SuperSeal 1.5 | |
| Power Supply Connector | 2way SuperSeal 1.5 | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40ºC/+105ºC (-40ºF/+221ºF) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A006 | |
Series PROFINET from/to Modbus Slave
HD67603-232-A1
PROFINET / Modbus Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS232; 2xPROFINET | |
|---|---|---|
| Data Rates Serial | Up to 115200bps | |
| Data Rates PROFINET | 100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67603 | |
HD67603-485-A1
PROFINET / Modbus Slave - Converter ( Ethernet Switch Inside for enter/exit connection, Housing type: A, Terminal Blocks Connectors )
| Ports | 1xRS485; 2xPROFINET | |
|---|---|---|
| Data Rates Serial | Up to 115200bps | |
| Data Rates PROFINET | 100 Base-T Autosensing | |
| Modbus Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67603 | |
PROFINET / Modbus Slave Converter
Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between PROFINET / Modbus - Modbus / Power Supply – PROFINET / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.
HD674-A007-2-E4V
PROFINET / Modbus Slave Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )
| Ports | 1xRS232, 1xEthernet | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way Mini-Fit® | |
| PROFINET Connector | RJ45 | |
| Power Supply Connector | 2way Mini-Fit® | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40°C/+105°C (-40°F/+221°F) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight |
200g approx
|
|
| Software | SW674-A007 | |
HD674-A007-2-E4R
PROFINET / Modbus Slave Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
| Ports | 1xRS232, 1xEthernet | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way Mini-Fit® | |
| PROFINET Connector | RJ45 | |
| Power Supply Connector | 2way Mini-Fit® | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40°C/+105°C (-40°F/+221°F) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A007 | |
HD674-A007-2-E7V
PROFINET / Modbus Slave Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )
| Ports | 1xRS232, 1xEthernet | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way SuperSeal 1.5 | |
| PROFINET Connector | 4way SuperSeal 1.5 | |
| Power Supply Connector | 2way SuperSeal 1.5 | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40ºC/+105ºC (-40ºF/+221ºF) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A007 | |
HD674-A007-2-E7R
PROFINET / Modbus Slave Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
| Ports | 1xRS232, 1xEthernet | |
|---|---|---|
| Data Rates RS232 | Up to 115200 bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way SuperSeal 1.5 | |
| PROFINET Connector | 4way SuperSeal 1.5 | |
| Power Supply Connector | 2way SuperSeal 1.5 | |
| Power Supply | 10..40V DC; 8..26V AC | |
| Operating Temperature | -40ºC/+105ºC (-40ºF/+221ºF) | |
| Dimensions Without Fixing Lugs | 76x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs A | 105x86x40 (LxWxH) | |
| Dimensions With Fixing Lugs B | 83x112.5x40 (LxWxH) | |
| Dimensions With Fixing Lugs C | 105x112.5x40 (LxWxH) | |
| Weight | 200g approx | |
| Software | SW674-A007 | |
HD67B71-232-A1
PROFINET / Modbus Slave - Converter ( Ethernet Switch Inside for enter/exit connection,Housing type: A, Terminal Blocks Connectors,Modbus Port: RS232 )
| Ports | 1xRS232; 2xEthernet | |
|---|---|---|
| RS232 Protocol | Modbus Slave | |
| Ethernet Protocol | PROFINET Master | |
| Data Rates RS232 | Up to 115200bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS232 Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B71 | |
HD67B71-485-A1
PROFINET / Modbus Slave - Converter ( Ethernet Switch Inside for enter/exit connection,Housing type: A, Terminal Blocks Connectors,Modbus Port: RS485 )
| Ports | 1xRS485; 2xEthernet | |
|---|---|---|
| RS485 Protocol | Modbus Slave | |
| Ethernet Protocol | PROFINET Master | |
| Data Rates RS485 | Up to 115200bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS485 Connector | 3way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B71 | |
HD67B71-422-A1
PROFINET / Modbus Slave - Converter ( Ethernet Switch Inside for enter/exit connection,Housing type: A, Terminal Blocks Connectors,Modbus Port: RS422 )
| Ports | 1xRS422; 2xEthernet | |
|---|---|---|
| RS422 Protocol | Modbus Slave | |
| Ethernet Protocol | PROFINET Master | |
| Data Rates RS422 | Up to 115200bps | |
| Data Rates PROFINET | 10/100 Base-T Autosensing | |
| RS422 Connector | 5way 5mm terminal block | |
| PROFINET Connector | RJ45 | |
| Power Supply | 8..24V AC; 12..35V DC | |
| Power Supply Connector | 2way 5mm terminal block | |
| Operating Temperature | -40° to +85° (-40°F to +185°F) | |
| Dimensions | 120x23x107 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | 35mm DIN Rail montage | |
| Software | SW67B71 | |
.JPG)
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC67402 | Cable Super Seal 1.5 MALE 2-pole - 1.0 Meters |
| AC67402-3 | Cable Super Seal 1.5 MALE 2-pole - 3.0 Meters |
| AC67403 | Cable Super Seal 1.5 MALE 3-pole - 1.0 Meters |
| AC67403-3 | Cable Super Seal 1.5 MALE 3-pole - 3.0 Meters |
| AC67404 | Cable Super Seal 1.5 MALE 4-pole - 1.0 Meters |
| AC67404-3 | Cable Super Seal 1.5 MALE 4-pole - 3.0 Meters |
| AC67410 | Accessory Automotive Devices - Support for rail DIN |
| AC34107 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m |
| AC34114 | Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m |
