Modbus TCP to DMX

Part No.: MPADFW-Modbus-TCP-to-DMX
This series of products allows to integrate a DMX network with a Modbus TCP net.

產品介紹

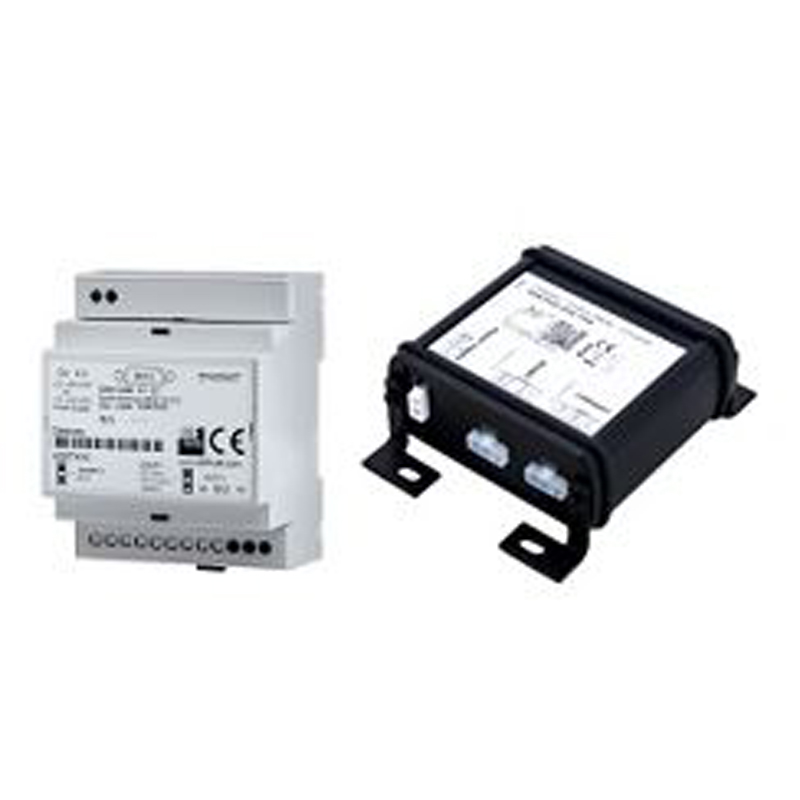

DMX / Modbus TCP - Converter

This series of products allows to integrate a DMX network with a Modbus TCP net.

The HD67509 is a DMX / Modbus TCP Slave Converter and it allows you to connect some DMX devices (for example a Light System...) with a Modbus TCP network (for example a PLC, a PC...) in order to exchange the informations between the networks.

The HD67519 is a DMX / Modbus TCP Master Converter and it allows you to connect some DMX devices (for example a Light System...) with some Modbus TCP slaves.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

  • HD674-A027 - DMX / Modbus TCP Slave, STRONG Converter
  • HD674-A032 - DMX / Modbus TCP Master, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between DMX/Modbus TCP - DMX/Power Supply - Modbus TCP/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.



DMX / Modbus TCP Slave series



HD67509-B2

DMX / Modbus TCP Slave Converter ( Housing type: B, Fixed Terminal Blocks )





Ports 1xRS485; 1xEthernet
Modbus TCP Protocol Modbus TCP slave
RS485 Protocol DMX512
Data Rates Modbus TCP 10/100 Base-T Autosensing
Data Rates DMX 250 kbps
Modbus TCP Connector RJ45
DMX Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67509



DMX /Modbus TCP Slave - Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between DMX / Modbus TCP – DMX / Power Supply – Modbus TCP / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.



HD674-A027-E4V

DMX /Modbus TCP Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485, 1xEthernet
Data Rates DMX 250 kbps
Data Rates Modbus TCP 10/100 Base-T Autosensing
DMX Connector 3way Mini-Fit®
Modbus TCP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A027



HD674-A027-E4R

DMX /Modbus TCP Slave - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS485, 1xEthernet
Data Rates DMX 250 kbps
Data Rates Modbus TCP 10/100 Base-T Autosensing
DMX Connector 3way Mini-Fit®
Modbus TCP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A027



HD674-A027-E7V

DMX /Modbus TCP Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485, 1xEthernet
Data Rates DMX 250 kbps
Data Rates Modbus TCP 10/100 Base-T Autosensing
DMX Connector 3way SuperSeal 1.5
Modbus TCP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A027



HD674-A027-E7R

DMX /Modbus TCP Slave - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS485, 1xEthernet
Data Rates DMX 250 kbps
Data Rates Modbus TCP 10/100 Base-T Autosensing
DMX Connector
3way SuperSeal 1.5
Modbus TCP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A027



DMX / Modbus TCP Master series



HD67519-B2

DMX / Modbus TCP Master Converter ( Housing type: B, Fixed Terminal Blocks )





Ports 1xRS485; 1xEthernet
Modbus TCP Protocol Modbus TCP Master
RS485 Protocol DMX512
Data Rates Modbus TCP 10/100 Base-T Autosensing
Data Rates DMX 250 kbps
Modbus TCP Connector RJ45
DMX Connector 3way 5mm terminal block
Power Supply 8..24V AC; 12..35V DC
Power Supply Connector 2way 5mm terminal block
Operating Temperature -40° to +85° (-40°F to +185°F)
Dimensions 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail montage
Software SW67519



DMX /Modbus TCP master - Converter

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between DMX / Modbus TCP – DMX / Power Supply – Modbus TCP / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.



HD674-A032-E4V

DMX /Modbus TCP master - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485, 1xEthernet
Data Rates DMX 250 kbps
Data Rates Modbus TCP 10/100 Base-T Autosensing
DMX Connector 3way Mini-Fit®
Modbus TCP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A032



HD674-A032-E4R

DMX /Modbus TCP master - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS485, 1xEthernet
Data Rates DMX 250 kbps
Data Rates Modbus TCP 10/100 Base-T Autosensing
DMX Connector 3way Mini-Fit®
Modbus TCP Connector RJ45
Power Supply Connector 2way Mini-Fit®
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40°C/+105°C (-40°F/+221°F)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A032



HD674-A032-E7V

DMX /Modbus TCP master - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )





Ports 1xRS485, 1xEthernet
Data Rates DMX 250 kbps
Data Rates Modbus TCP 10/100 Base-T Autosensing
DMX Connector 3way SuperSeal 1.5
Modbus TCP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A032



HD674-A032-E7R

DMX /Modbus TCP master - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )





Ports 1xRS485, 1xEthernet
Data Rates DMX 250 kbps
Data Rates Modbus TCP 10/100 Base-T Autosensing
DMX Connector 3way SuperSeal 1.5
Modbus TCP Connector 4way SuperSeal 1.5
Power Supply Connector 2way SuperSeal 1.5
Power Supply 10..40V DC; 8..26V AC
Operating Temperature -40ºC/+105ºC (-40ºF/+221ºF)
Dimensions Without Fixing Lugs 76x86x40 (LxWxH)
Dimensions With Fixing Lugs A 105x86x40 (LxWxH)
Dimensions With Fixing Lugs B 83x112.5x40 (LxWxH)
Dimensions With Fixing Lugs C 105x112.5x40 (LxWxH)
Weight 200g approx
Software SW674-A032



Accessories


Order Code Description
AC34011 Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC
AC34012 Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC
AC67402 Cable Super Seal 1.5 MALE 2-pole - 1.0 Meters
AC67402-3 Cable Super Seal 1.5 MALE 2-pole - 3.0 Meters
AC67403 Cable Super Seal 1.5 MALE 3-pole - 1.0 Meters
AC67403-3 Cable Super Seal 1.5 MALE 3-pole - 3.0 Meters
AC67404 Cable Super Seal 1.5 MALE 4-pole - 1.0 Meters
AC67404-3 Cable Super Seal 1.5 MALE 4-pole - 3.0 Meters
AC67410 Accessory Automotive Devices - Support for rail DIN
AC34107 Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m
AC34114 Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m
