DMX / Ethernet - Converter

This series of products allows to integrate a DMX network with an Ethernet net.

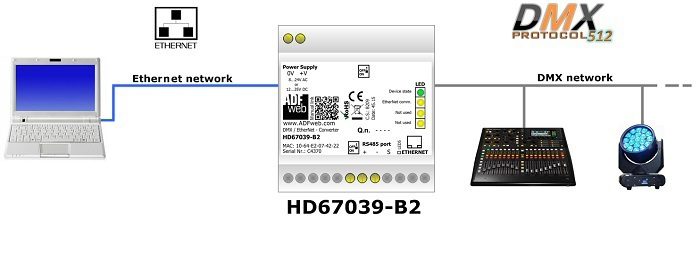

The HD67039 is a DMX / Ethernet Converter and it allows you to connect some DMX devices (for example a Light System...) with an Ethernet network (for example a PC, Supervisory System...) in order to exchange the informations between the networks.

The converters are available also in another version, ideal for STRONG applications.

The corresponding models are:

• HD674-A025 - DMX / Ethernet, STRONG Converter

These converters are contained in a metal housing, so it is STRONG and RESISTANT to the vibrations and shocks. The electrical parts are with triple isolation of 4000 V between DMX/Ethernet - DMX/Power Supply - Ethernet/Power Supply.
Particularly suitable for the installation on cars, trains, boats, industrial sector and in fragile environments.
Two versions, one with Varnished PCB and one with Resined PCB.
Varnished treatment gives dust and humidity protection, Resined treatment gives high water, dust and vibrations protection.
Excellent range of temperature resistance from -40°C to +105°C, features required by AUTOMOTIVE applications.

DMX / Ethernet series

HD67039-B2

DMX / EtherNet - Converter ( Housing type: B, Fixed Terminal Blocks )

DMX /EtherNet - Converter

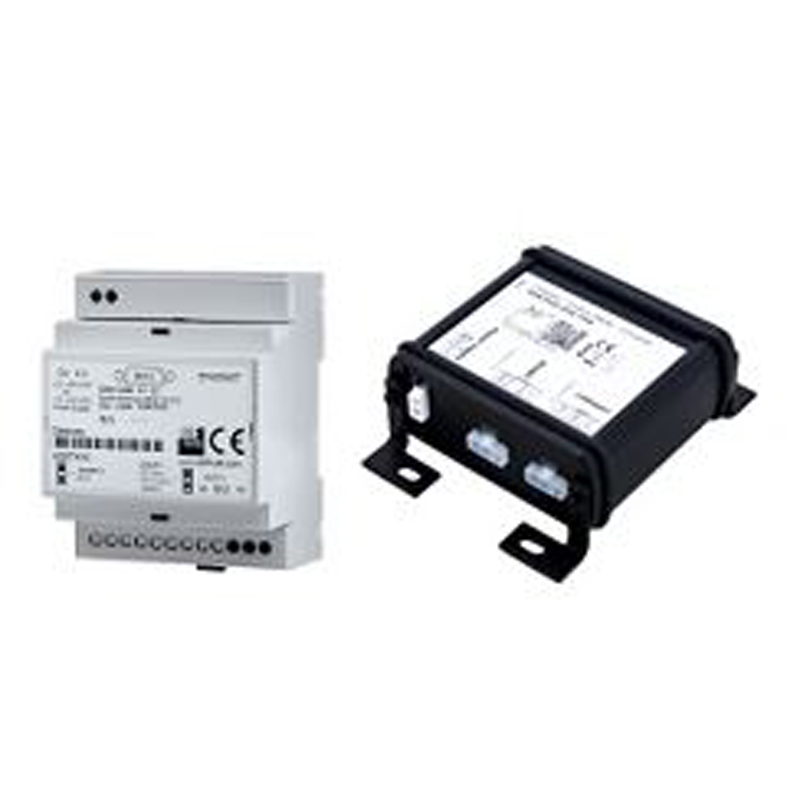

Products supplied with metal housing (Housing type: E), are STRONG and RESISTANT to mechanical stress (such as vibration and shock), electrical parts with a triple insulation 4 kV between DMX / Ethernet – DMX / Power Supply – Ethernet / Power Supply.
Particularly suitable for installation in cars, trucks, trains, boats, in the industrial sector and in fragile environments.
Two versions, one with a coating of the PCB (suffix code V) that ensures total protection to the dust (IP65) and another encapsulation-based resin (suffix code R) which gives to device the high performance safety and insulation for wet environments and to resist to noise.
This product can be mounted on any type of surface (horizontal, vertical and oblique) with four fixing lugs, also you can choose the type of connector, Mini-Fit or Superseal 1.5.
Excellent range of temperature resistance from -40° C to +105° C, features required by AUTOMOTIVE.

HD674-A025-E4V

DMX /EtherNet - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD674-A025-E4R

DMX /EtherNet - Converter ( Housing type: E, Mini-Fit Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )

HD674-A025-E7V

DMX /EtherNet - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Varnished )

HD674-A025-E7R

DMX /EtherNet - Converter ( Housing type: E, SuperSeal 1.5 Connectors, Triple Galvanic Isolation: 4KV, PCB Treatment: Resined )
