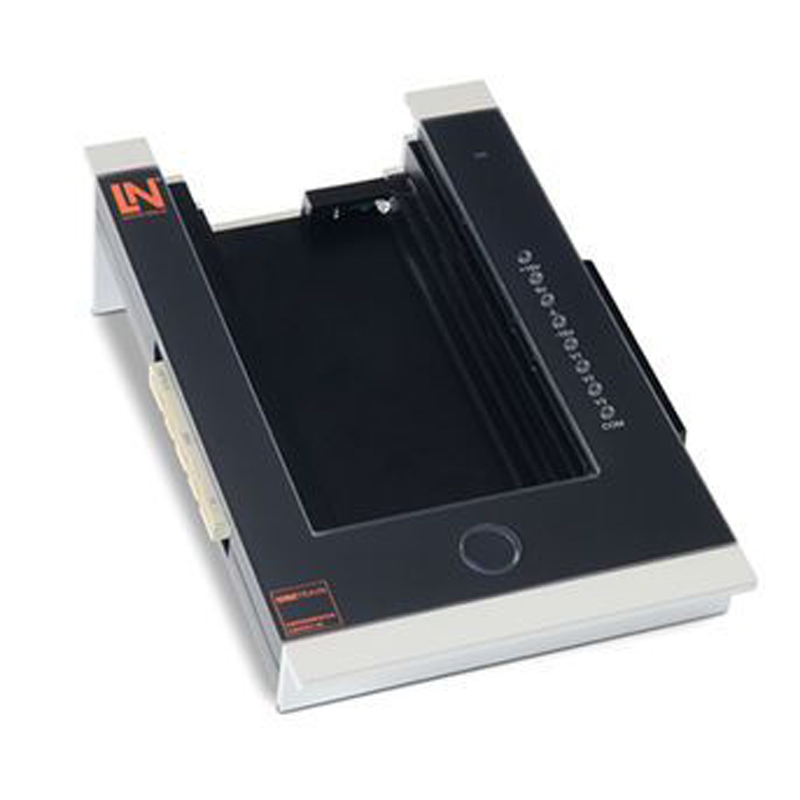

UniTrain Experimenter

Part No.: MPLCNL-UniTrain-Experimenter
For coupling to the UniTrain Interface or to other Experimenter modules.

產品介紹

UniTrain Experimenter for coupling to the UniTrain Interface or to other Experimenter modules.

Equipment:

  • Connects to the UniTrain Interface and additional Experimenters via UniTrain bus
  • UniTrain bus connection for experiment cards
  • High-quality designer casing with aluminium feet and surface-hardened Plexiglas front window
  • Suitable for accommodating training panel frames for DIN A4 training panels
  • Fixed and variable voltages available via 8 2-mm sockets
  • Designed for connection of 2-mm safety measuring leads
  • Accommodates UniTrain experiment cards
  • Eject mechanism for UniTrain experiment cards with return spring
  • Accommodates a breadboard for experimenting with discrete components and integrated circuits
  • Accommodates a multimeter using IrDa interface
  • Dimensions: 29.6 x 19 x 8.6 cm
  • Weight: 1.0 kg
