US-101-I (Silicon Lab)

Part No.: MP-US-101-I
USB To RS-232/422/485 Converter, 1-Port

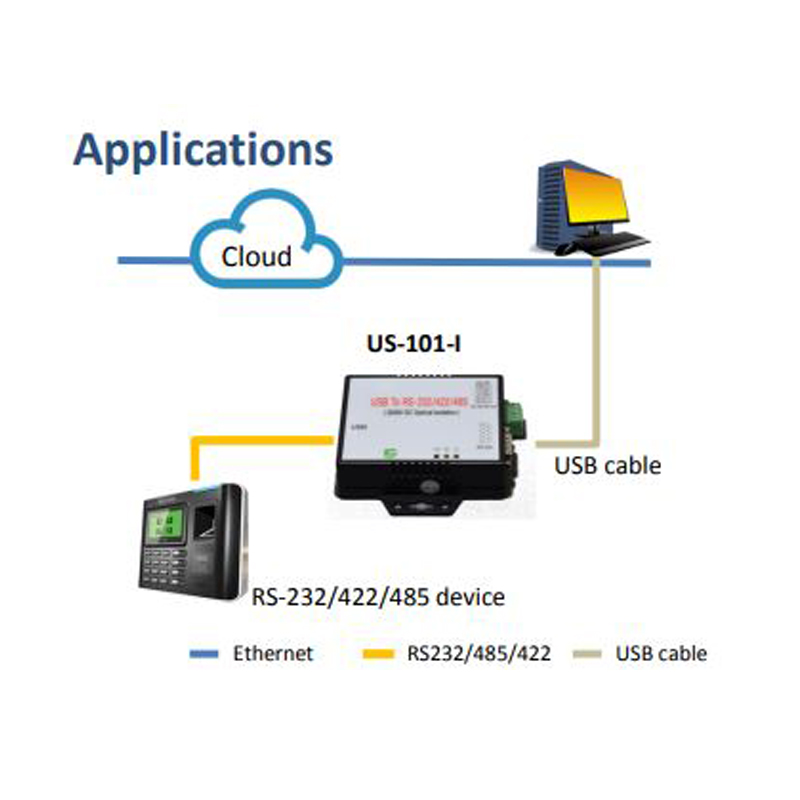

產品介紹

Features

  • Plug & Play installation
  • 3000V DC isolation protection
  • Built in 15KV ESD protection for signals
  • RS-422/485 surge & over current protection
  • Built in 100 ohm Termination resistor
  • Windows, MAC OS, Linux driver support

Specifications



Serial Interface

  • Port number: 1
  • Port Type: RS-232 x 1 Port ( DB9 ) or RS-422/485 x 1 Port (4-pin Terminal Block, Auto Select)
  • Connector: Male DB9 / 4-pin Terminal Block
  • RS-232 Speed: 300 bps ~ 921.6 Kbps
  • 422/485 Speed: 300 bps ~ 230.4 Kbps
  • Parity: None, Odd, Even, Mark, Space
  • Data Bit: 5, 6, 7, 8
  • Stop Bit: 1, 1.5, 2
  • RS-232: Rx, Tx, GND, RTS, CTS, DTR, DSR,
  • RS-422: Rx+, Rx-, Tx+, Tx-
  • RS-485: Data+, Data-
  • Built–in: RS-422/485 pull high/ low Resistor
  • Protection: 422/485 Surge & Over Current Protection Built in 15KV ESD protection for all signals
  • Isolation: 3000V DC Optical isolation protection
  • Termination: Built in 100 Ohm Termination resistor
  • Resistor: switch On/Off
  • Distance: Up to 1250m

Power

  • Input: USB Bus power, DC5V, 50mA

Driver Support

  • Windows: 98SE/ 2000/XP/ 2003/ Server/ VISTA/ WIN 7/ WIN 8/ WinCE 5.0/ 6.0
  • MAC: OS OSX/ OS9
  • Linux: 2.4 / 2.6

USB Interface

  • Chipset: Silicon Lab CP2102
  • USB spec: USB 1.0, 1.1, 2.0
  • Connector: USB Type B
  • Baud Rates: Full speed 12Mbps

Environment

  • Temperature:
    • Operating: 0°C ~ 65°C (32°F ~ 149°F)
    • Storage: -20°C ~ 70°C (-4°F ~ 158°F)
  • Humidity:
    • Operating: 10% ~ 95% non-condensing
    • Storage: 5% ~ 95% non-condensing

Dimension & Weight

  • Dimension: 85 x 80 x 28 mm
  • Weight: 90g

LED

  • SYS (PWR), Rx, Tx

Regulatory Approval

  • FCC: Part15 Class A
  • CE: EN55022 Class A, EN55024
  • RoHS: Compliance

Warranty

  • 1 Year
