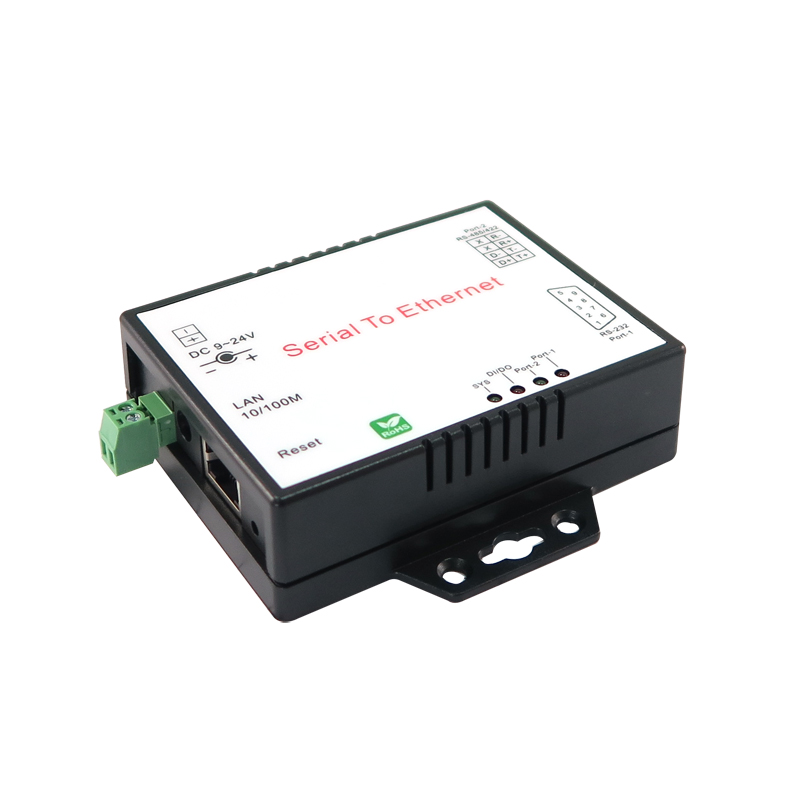

E-P732-X

Part No.: MP-E-P732-X
2 Ports Serial To Ethernet & WiFi Converter

產品介紹

Features

  • Multi Serial interfaces
  • Operation Modes: TCP server; TCP client; UDP; Virtual COM; Paring
  • Powerful Cortex M4 CPU
  • Built in 15KV ESD protection for all signals
  • Web Browser configuration
  • Easy installation Windows utility
  • On line F/W upgrade
  • PoE is an option

Specifications



Hardware

  • CPU: 32-bit ARM-Cortex-M4 CPU , 120 MHz
  • RAM: 128K bytes SDRAM
  • ROM: 512K bytes Flash ROM
  • Watchdog: Built in H/W Watchdog timer

Ethernet

  • Port number: 1
  • Port Type: RJ-45 Connector
  • Speed: 10 / 100 Mbps ( Auto Detect )
  • Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, TELNET
  • Mode: TCP Server / TCP Client / UDP / Virtual Com / Pairing
  • Setup: HTTP Browser Setup (IE, Chrome, Firefox)
  • Security: Login Password
  • Protection: Built-in 1.5KV Magnetic Isolation

Serial Interface

  • Port number: 2
  • Port Type: RS-232 x 1 Port ( DB9 ) ,
  • RS-422/485 x 1 Port (Auto Detect)
  • Connector: Male DB9 / 7-pin Terminal Block
  • Speed: 300 bps ~ 115.2 Kbps
  • Parity: None , Odd , Even , Mark , Space
  • Data Bit: 5, 6 , 7 , 8
  • Stop Bit: 1 , 2
  • Port 1 RS-232: Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
  • Port 2 RS-422: Rx+ , Rx- , Tx+ , Tx-
  • RS-485: Data+ , Data-
  • Built–in: RS-422/485 pull high / low Resistor
  • Protection: 422/485 Surge & Over Current Protection
  • Built in 15KV ESD protection for all signals

LED

  • SYS (PWR), DI/DO, Port-2, Port-1

Regulatory Approval

  • FCC Part15 Class A
  • CE EN55022 Class A, EN55024
  • RoHS Compliance

Environment

  • Temperature: Operating: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage: -20°C ~ 70°C (-4°F ~ 158°F)
  • Humidity: Operating: 10% ~ 95% non-condensing
  • Storage: 5% ~ 95% non-condensing

Software Features

  • OS Supported: Windows 2000/2003/XP/Vista/Win 7/Win 8
  • Configuration: Window Utility, Web Browser

Power

  • Input: DC 9 ~24V, 300mA@ 12VDC
  • Consumption < 4W

Warranty

  • 1 Year
