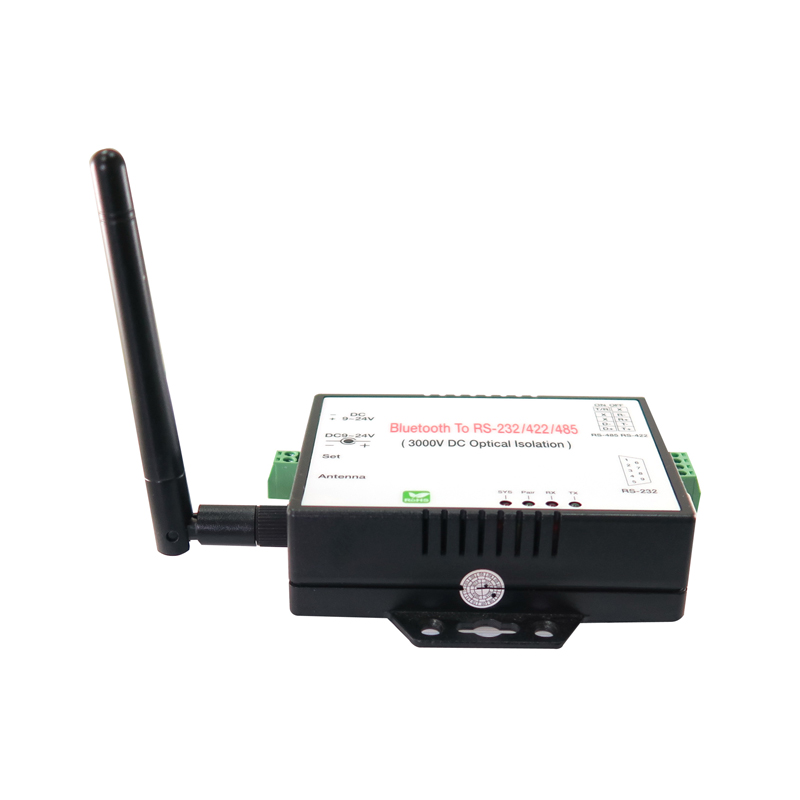

BS-101

Part No.: MP-BS-101
Bluetooth (2.1) To RS-232/ 422/ 485 Converter, 1-Port

產品介紹

Features

  • Supports Bluetooth 2.1+EDR
  • Built in 15KV ESD protection for signals
  • RS-422/485 surge protection
  • Transmission range up to 100 Meters.
  • Bluetooth Windows utility

Specifications



Bluetooth Interface

  • Port number: 1
  • Spec: BT 2.1+EDR (Enhance Data Rate)
  • SPP: Support (Serial Port Profile)
  • Frequency: 2.4 ~ 2.483 Ghz
  • Distance: up to 100M

Serial Interface

  • Port number: 1
  • Port Type: RS-232 x 1 Port ( DB9 ) or RS-422/485 x 1 Port (4-pin Terminal Block)
  • Speed 1200 bps ~ 115.2 Kbps
  • Parity: None, Odd, Even
  • Data Bit: 8
  • Stop Bit: 1, 2
  • RS-232: Rx, Tx, GND, RTS, CTS
  • RS-422: Rx+, Rx-, Tx+, Tx-
  • RS-485: Data+, Data-
  • Built–in: RS-485 pull high/ low 100ohms Terminal Resistor, Dip switch On/Off.
  • Protection: 422/485 Surge Protection, Built in 15KV ESD protection for all signals

Utility Support

  • Windows 98SE/ 2000/XP/ 2003/ VISTA/ WIN 7/ 8/ 10

Power

  • Input: DC 9 ~24V, 150mA@ 9VDC, 60mA@24VDC.

LED

  • SYS (PWR), Pairing, Rx, Tx

Environment

  • Temperature:
    • Operating: 0°C ~ 70°C (32°F ~ 158°F)
    • Storage: -25°C ~ 80°C (-13°F ~ 176°F)
  • Humidity:
    • Operating: 10% ~ 95% non-condensing
    • Storage: 5% ~ 95% non-condensing

Dimension & Weight

  • Dimension: 85 x 75 x 25 mm
  • Weight: 150g

Regulatory Approval

  • FCC: Part15 Class A
  • CE: EN55022 Class A, EN55024
  • RoHS: Compliance

Warranty

  • 1 Year
