SC-101-I

Part No.: MP-SC-101-I

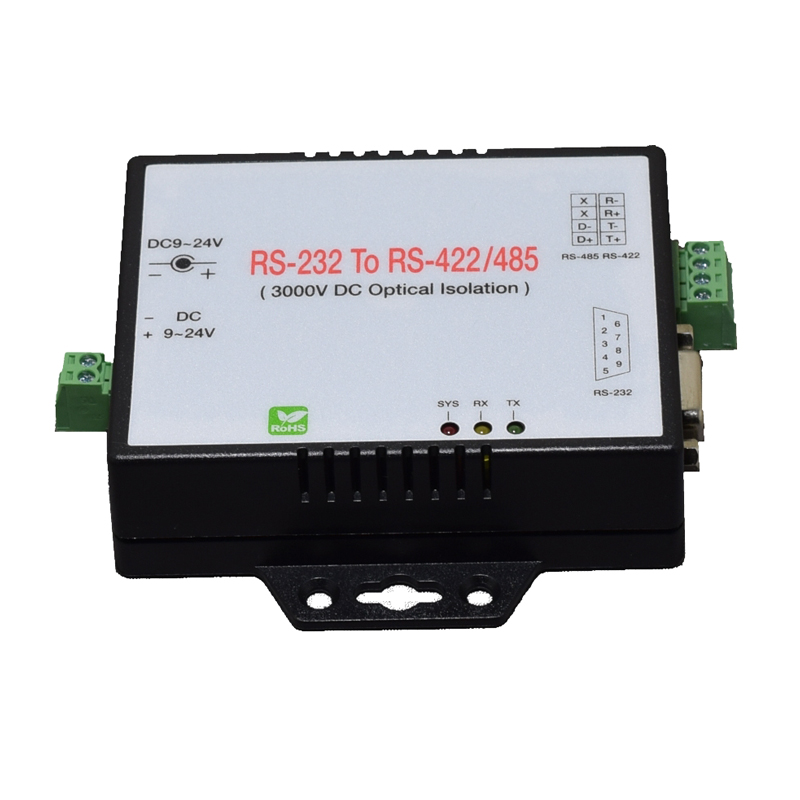

RS-232 to RS-422/485 Converter, 3KVDC Isolation

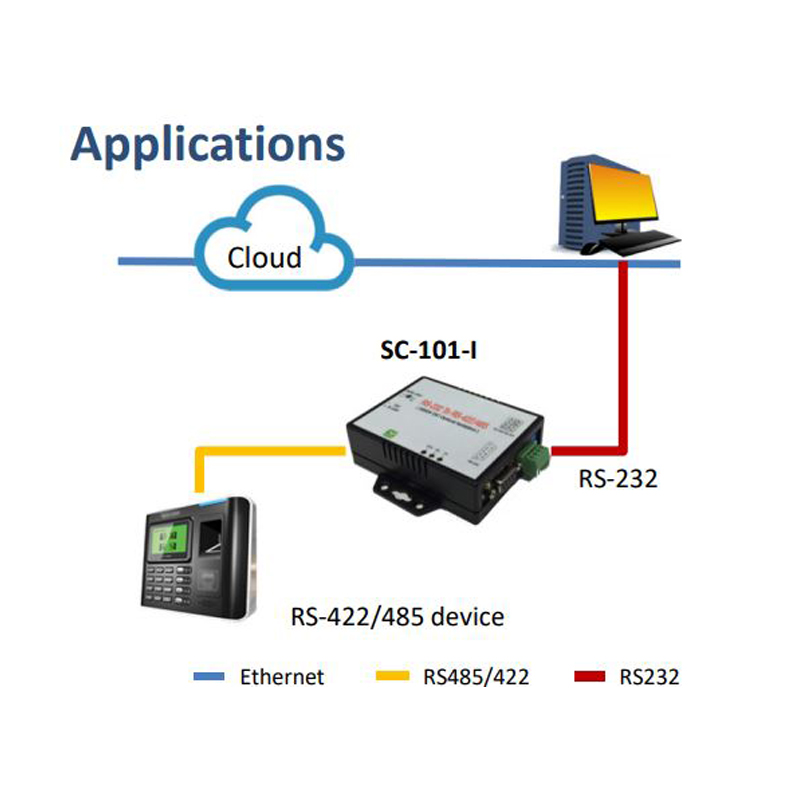

產品介紹

Features

  • Plug & Play installation
  • 3000V DC isolation protection
  • Built in 15KV ESD protection for signals
  • RS-422/485 surge & over current protection
  • Built in 100 ohm Termination resistor
  • Dual modes power input – DC jack/ Screw terminal

Specifications


Serial Interface

  • Port number: 2
  • Port Type: RS-232 x 1 Port ( DB9 ), RS-422/485 x 1 Port (4-pin Terminal Block, Auto Select)
  • Connector: Male DB9/ 4-pin Terminal Block
  • Speed: 300 bps ~ 115.2 Kbps
  • Parity: None, Odd, Even, Mark, Space
  • Data Bit: 5, 6, 7, 8
  • Stop Bit: 1, 2
  • Port 1
    • RS-232: Rx, Tx, GND, RTS, CTS, DTR, DSR,
    • RS-422: Rx+, Rx-, Tx+, Tx-
    • RS-485: Data+, Data-
  • Built–in: RS-422/485 pull high/ low Resistor
  • Protection: 422/485 Surge & Over Current Protection Built in 15KV ESD protection for all signals
  • Isolation: 3000V DC Optical isolation protection Termination Built in 100 Ohm Termination resistor Resistor switch On/Off
  • Distance: Up to 1250m

Power

  • Input: DC 9 ~ 24V, 150mA@ 12VDC
  • Dual modes: 2-pin screw terminal & DC jack adapter
  • Consumption: <2w
  • Protection: 3000V DC to DC isolation protection Wrong polarity input protection

LED

  • SYS (PWR), Rx, Tx

Regulatory Approval

  • FCC: Part15 Class A
  • CE: EN55022 Class A, EN55024
  • RoHS: Compliance

Environment

  • Temperature:
    • Operating: 0°C ~ 65°C (32°F ~ 149°F)
    • Storage: -20°C ~ 70°C (-4°F ~ 158°F)
  • Humidity:
    • Operating: 10% ~ 95% non-condensing
    • Storage: 5% ~ 95% non-condensing

Dimension & Weight

  • Dimension: 88 x 91 x 27 mm
  • Weight: 94g

Warranty

  • 1 Year
