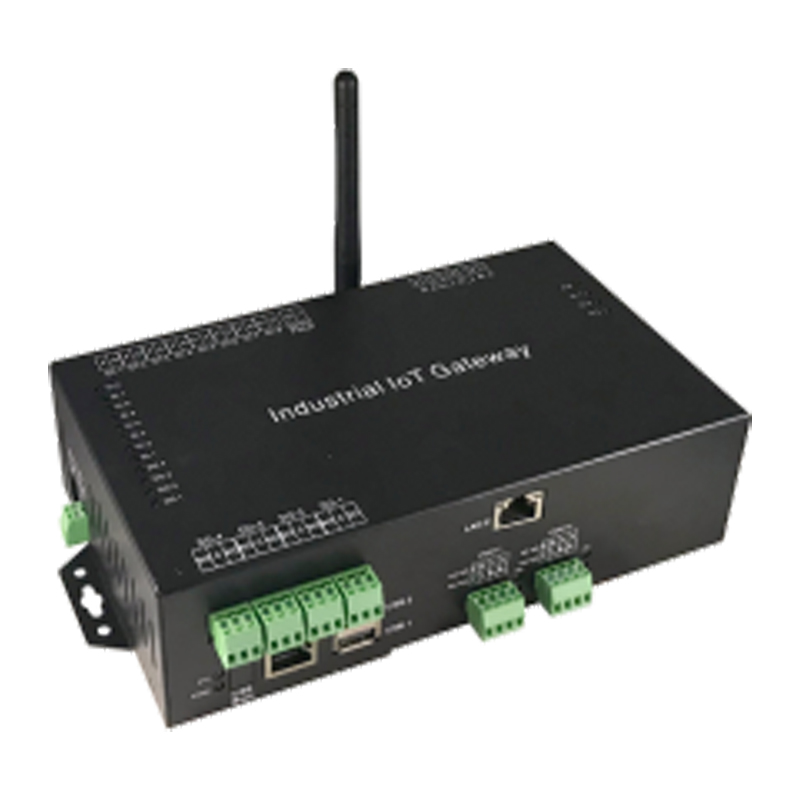

WPC-632-4-DIO-5G

Part No.: MP-WPC-632-4-DIO-5G
2 Ports Programmable Serial To Ethernet Controller

產品介紹

Features

  • Built-in Raspberry Pi 4
  • Wide Range Input Power (9~32V)
  • Multiple Serial Interfaces
  • Powerful Computing capability
  • CPU Heatsink Transfer Heat To Metal Housing

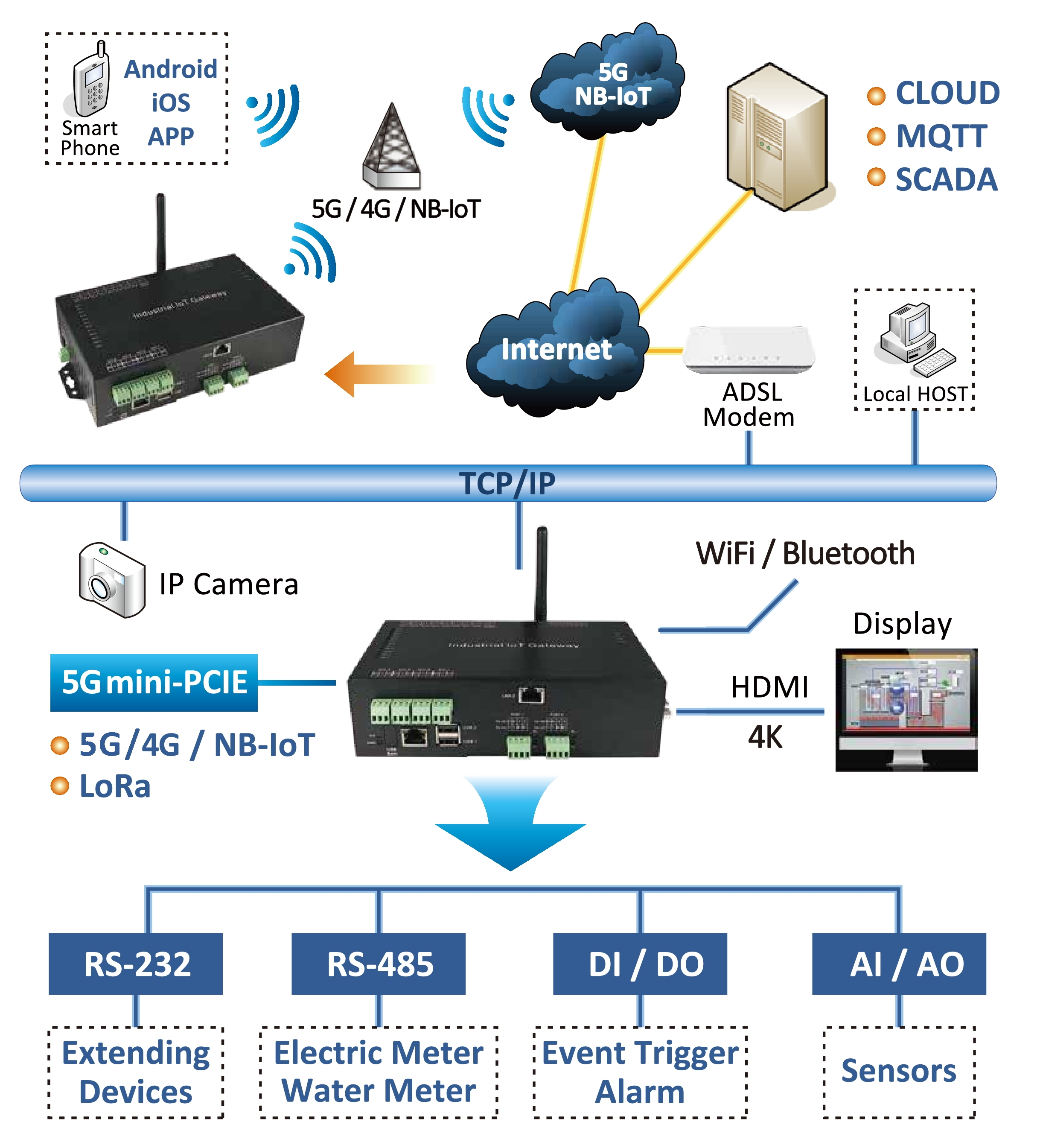

  • Ethernet, WiFi, Bluetooth, Serial Port, GPIO, HDMI, I2C, SD Interface, USB, RTC, Buzzer, Mini-PCIE ,M.2 (Option For 5G/ 4G / LoRa Module).

Specifications


System

  • CPU : ARM v8 A72 Quad Core 64-bit SOC , 1.5 GHz
  • RAM : 2/ 4/ 8 G Bytes LPDDR4 SRAM (option)
  • ROM : 8 /16 / 32 G Bytes ( Micro SD card )
  • GPU : OpenGL ES 3.0 graphics
  • OS :  Linux Debian OS

Ethernet Giga LAN *1 (2nd LAN optional)

  • Port Type : RJ-45 Connector

WiFi 2.4 GHz and 5.0 GHz IEEE 802.11ac


Bluetooth 5.0 BLE


5G M.2 TO USB 3.0 Interface (option)


4G/NB-IOT mini-PCI-e To USB 2.0 (option)


Micro HDMI *2 for Video / Audio (up to 4k p60 )

  • H.265 (4Kp60 decode);
  • H.264 (1080p60 decode, 1080p30 encode)

4-pole stereo audio and composite video port


Serial Ports *2

  • Port : RS-232 *2 Ports ( full function *1 )
  • Port : RS-422/485 *2 Ports ( Surge Protect )

USB 3.0 *2, USB 2.0 *2


Other Features

  • SD Interface: micro SD card ( 8/ 16/ 32G OS & storage )
  • RTC: Real Time Clock * 1
  • Buzzer * 1
  • Console port * 1 ( RS-232 or UART )
  • Watch Dog Function
  • I2C Interface * 1 port (build-in)
  • SPI Interface ( on pcb )
  • Display Port Interface ( DSI on raspberry pi pcb board )
  • Camera Port Interface ( CSI on raspberry pi pcb board )

Mechanical and Environment

  • Operating Temperature : -10℃〜65℃
  • Storage Temperature: -15℃〜70℃
  • Dimensions : 200 * 120 * 50 mm ( W * D * H )
  • Weight : 850 ± 5gm
  • Housing: metal.

Power

  • DC 9~32V, 1000mA, 500mA@12V, support DC Jack & Terminal Input

Digital Input / Output GPIO * 16 pins

  • Digital Input: Digital Input * 8 Pins ( Active High / Active Low Selectable )
    • Dry contact :
      • Logic level 0 : close to GND ,
      • Logic level 1 : open
    • Wet contact :
      • Logic level 0 : 0~3 V,
      • Logic level 1 : 10 ~ 30 V
  • Digital Output * 4 Pins ( Active High / Active Low Selectable )
    • 120VAC @ 10A, 240VAC @ 7A, 24VDC @ 10A

LED

  • SYS (PWR) , LAN , LED 1 , LED 2 ( User Define )

Warranty

  • Warranty period: 1 year.
