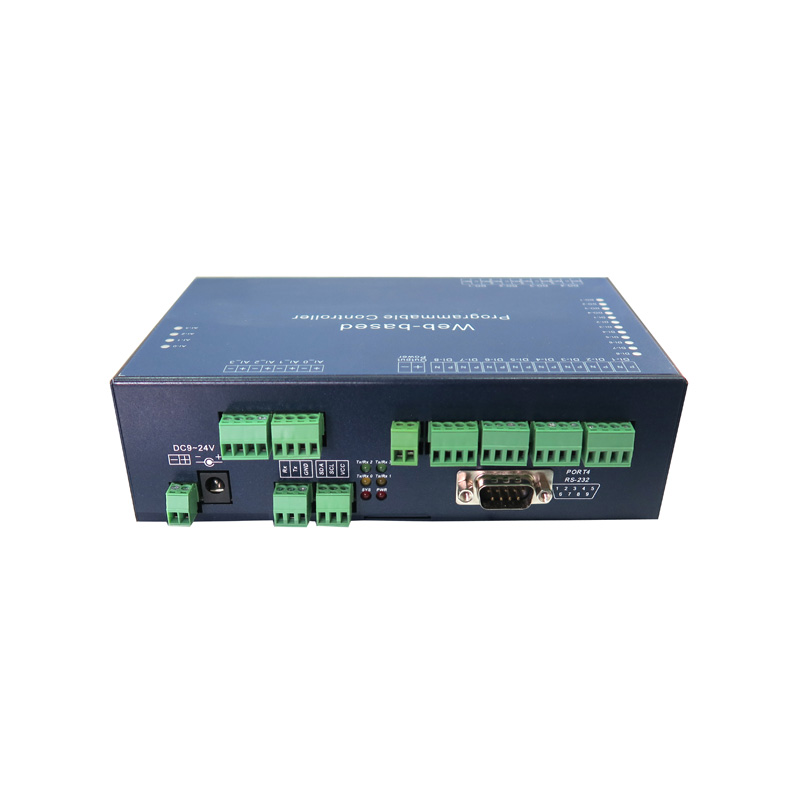

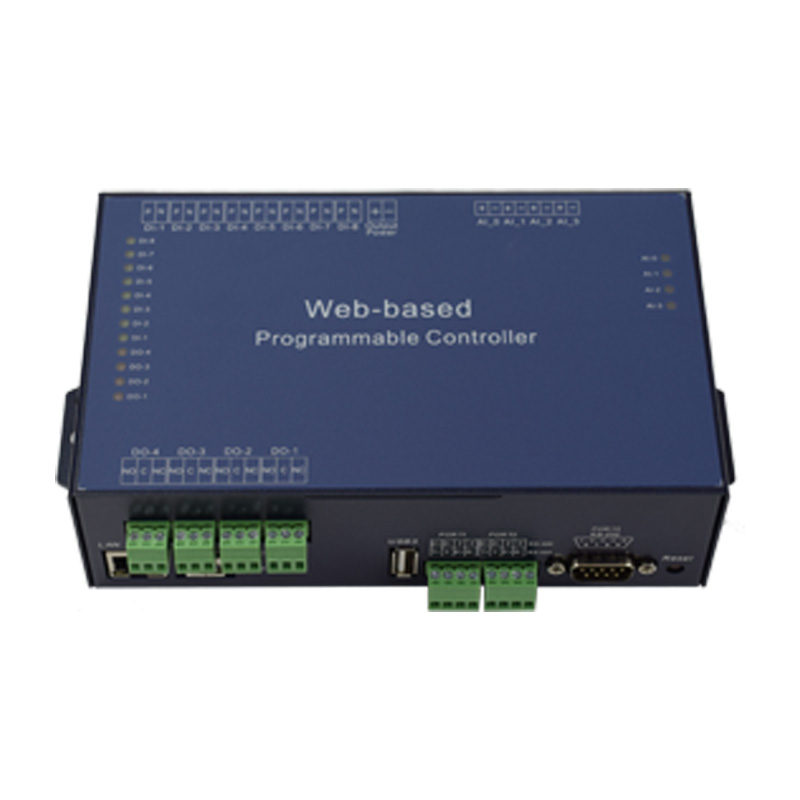

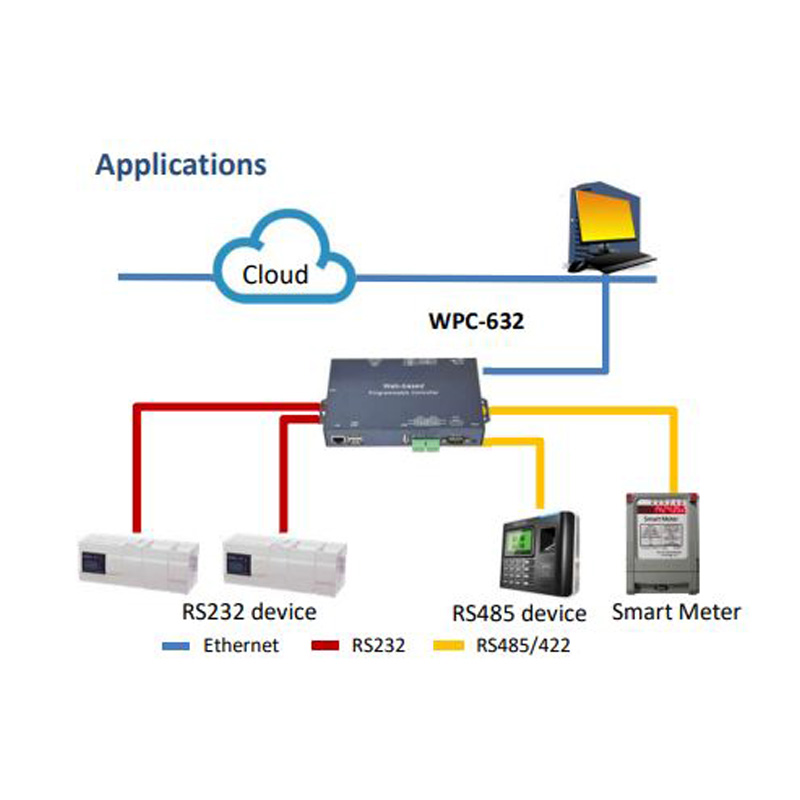

WPC-632-3-DIO84-AI

Part No.: MP-WPC-632-3-DIO84-AI
4 Ports Programmable Serial To Ethernet with Digital I/O & AI

產品介紹

Features

  • Linux OS, S/W Programmable
  • API/CGI for AP layer Application
  • 2 x RS-232 + 2 x RS-422/485
  • Dual Power Inputs (DC Jack / TB)
  • Powerful Computing capability
  • On board 8 DI / 4 DO
  • Optional 4 Analog Input
  • Web Browser configuration
  • Easy installation Windows utility

Specifications



Hardware

  • CPU: ARM Cortex A53 CPU, 1.2 GHz
  • RAM: 1 GBytes SDRAM
  • ROM: 8G Bytes Flash ROM (Micro SD card)
  • OS: Linux OS, API & CGI available
  • Watchdog: Built in H/W Watchdog timer
  • RTC: Built in RTC

Ethernet

  • Port number: 1
  • Port Type: RJ-45 Connector
  • Speed: 10 / 100 Mbps ( Auto Detect )
  • Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, PPPoE, DDNS, NTP, FTP, TELNET
  • Mode: TCP Server/ TCP Client/ UDP
  • Setup: HTTP Browser Setup (IE, Chrome, Firefox),
  • Security: Login Password
  • Protection: Built-in 1.5KV Magnetic Isolation

Serial Interface

  • Port number: 4
  • Port Type: RS-232 x 1 Port ( DB9, Full ) , UART x 1 Port ( DB9, Tx, Rx, GND, PW)RS-422/485 x 2 Port (Software select)
  • Connector: Male DB9 x 2 / 4-pin Terminal Block x 2
  • Speed: 300 bps ~ 230.4 Kbps
  • Parity: None, Odd, Even, Mark, Space
  • Data Bit: 5, 6, 7, 8
  • Stop Bit: 1, 2
  • Protection: 422/485 Surge & Over Current Protection Built in 15KV ESD protection for all signals

Storage Interface

  • Micro SD slot: Micro SD card (for OS)
  • USB

Display Interface

  • Port number: HDMI x 1  for Video & Audio output

USB Interface

  • Port number: 2
  • Function: Storage, WiFi Dongle, Bluetooth Dongle

Software Features

  • OS Supported: Windows 2000/ 2003/ XP/ Vista/ Win 7/ Win 8
  • Configuration: Window Utility, Web Browser

Digital I/O

  • Digital Input: 8 (active High/ Low selectable)
  • Digital Output: 4 (active High/ Low selectable)
  • DO x 4:
    • Relay output, 120V AC@10A
    • 240V AC@7A, 24V DC@10A
  • DI x 8: 3000V DC isolation protect
  • Dry Contact:
    • Logic level 0: close to GND
    • Logic level 1: open
  • Wet Contact:
    • Logic level 0: 0 ~ 3 V
    • Logic level 1: 10 ~ 30 V

LED

  • PWR, SYS, Tx/Rx0, Tx/Rx1, Tx/Rx2, Tx/Rx3

Power

  • Input: DC 12 ~ 24V, 1000mA@ 12VDC

Environment

  • Temperature:
    • Operating: 0°C ~ 65°C (32°F ~ 149°F)
    • Storage: -10°C ~ 70°C (-14°F ~ 158°F)
  • Humidity:
    • Operating: 10% ~ 95% non-condensing
    • Storage: 5% ~ 95% non-condensing

Regulatory Approval

  • FCC: Part15 Class A
  • CE: EN55022 Class A, EN55024
  • RoHS: Compliance

Warranty

  • 1 Year
