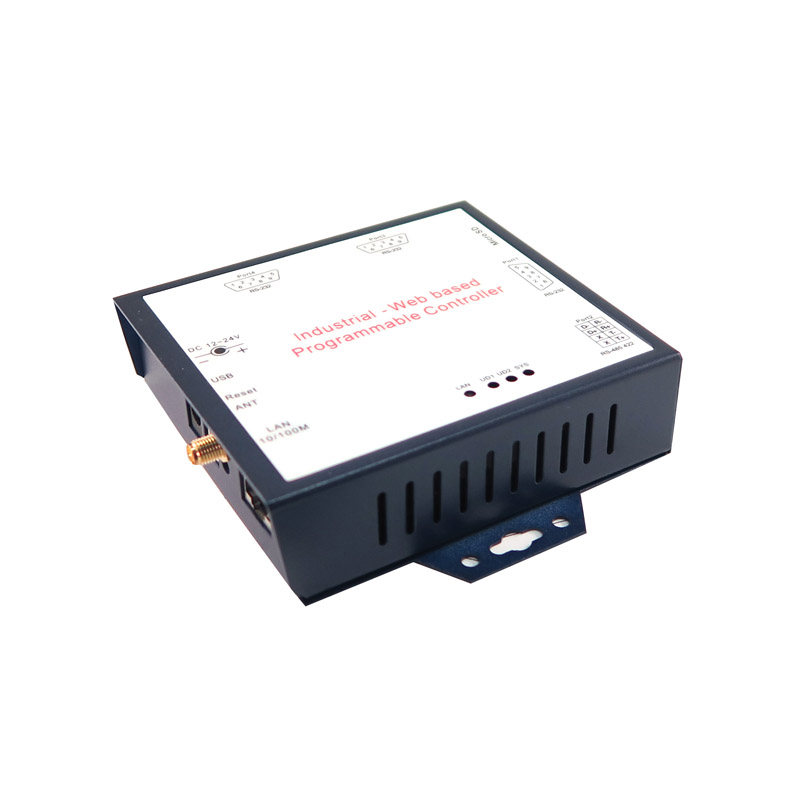

WPC-332

Part No.: MP-WPC-332
4 Ports Programmable Serial To Ethernet Controller

產品介紹

Features

  • Linux S/W Programmable
  • API/CGI for Customization
  • Multi Serial interfaces
  • Powerful Computing capability
  • Web Browser configuration
  • Easy installation Windows utility
  • On line F/W upgrade

Specifications



Hardware

  • CPU: ARM-Cortex A7 CPU, 900 MHz
  • RAM: 1G bytes LPDDR2
  • ROM: 1G bytes Flash ROM (Micro SD card)
  • OS: Linux OS, API & CGI available
  • Watchdog: Built in H/W Watchdog timer

Ethernet

  • Port number: 1
  • Port Type: RJ-45 Connector
  • Speed: 10 / 100 Mbps ( Auto Detect )
  • Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, PPPoE, DDNS, NTP, FTP, TELNET
  • Mode: TCP Server/ TCP Client/ UDP
  • Setup: HTTP Browser Setup (IE, Chrome, Firefox),
  • Security: Login Password
  • Protection: Built-in 1.5KV Magnetic Isolation

Serial Interface

  • Port number: 4
  • Port Type:
    • RS-232 x 1 Port ( DB9, Full ) ,
    • RS-232 x 2 Port ( DB9, Tx, Rx, GND)
    • RS-422/485 x 1 Port (Software select)
  • Connector: Male DB9 x 2 / 4-pin Terminal Block x 2
  • Speed: 300 bps ~ 230.4 Kbps
  • Parity: None, Odd, Even, Mark, Space
  • Data Bit: 5, 6, 7, 8
  • Stop Bit: 1 , 2
  • Protection: 422/485 Surge & Over Current Protection
  • Built in 15KV ESD protection for all signals

Storage Interface

  • Micro SD slot: Micro SD card (Max. 16GB)

Display Interface

  • Port number: HDMI x 1 for Video & Audio output

USB Interface

  • Port number: 3,
  • Function: Storage, WiFi dongle, Bluetooth dongle

Regulatory Approval

  • FCC: Part15 Class A
  • CE: EN55022 Class A, EN55024
  • RoHS: Compliance

Warranty

  • 1 Year

Environment

  • Temperature:
    • Operating: 0°C ~ 65°C (32°F ~ 149°F)
    • Storage: -10°C ~ 70°C (-14°F ~ 158°F)
  • Humidity:
    • Operating: 10% ~ 95% non-condensing
    • Storage: 5% ~ 95% non-condensing

Software Features

  • OS Supported: Windows 2000/2003/XP/Vista/Win 7/Win8
  • Configuration : Window Utility, Web Browser

Power

  • Input: DC 12 ~ 24V, 1000mA@ 12VDC

LED

  • SYS (PWR), LAN, LED1, LED2 (User Define)
