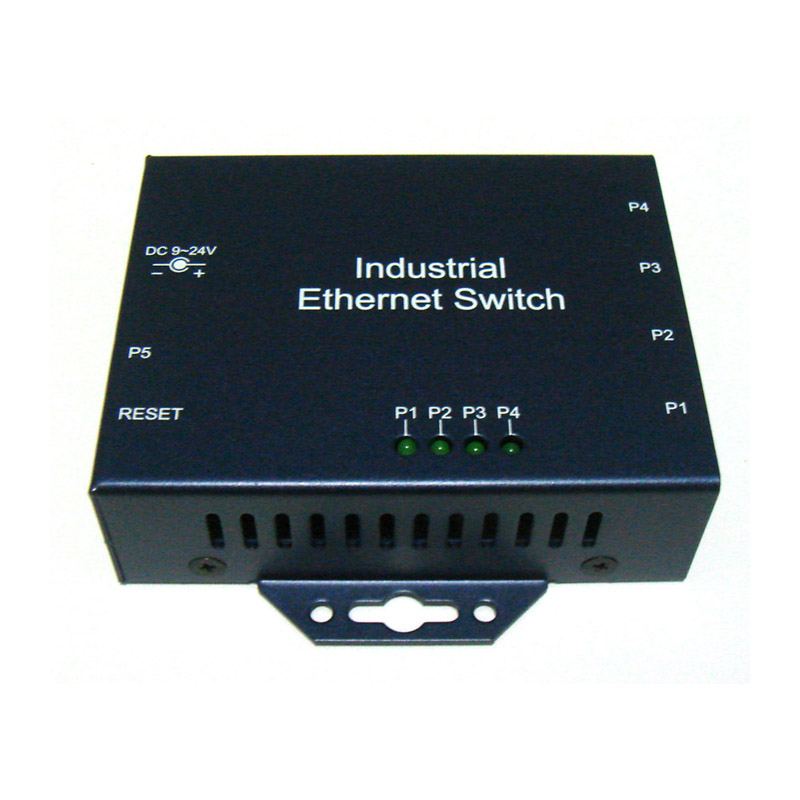

IES-501-I

Part No.: MP-IES-501-I
5-Port Industrial Ethernet Switch

產品介紹

Features

  • Wide operating temperature range
    • IP175DLFI (-40°C to 85°C)
  • Up to 2K MAC addresses
  • Support auto-polarity for 10Mbps
  • Broadcast storm protection
  • Auto MDI-MDIX
  • Layer2-4 Multi-Field classifier
    • Support traffic policy
  • 5 to 30VDC Power inputs
  • Industrial plastic case
  • Supports Terminal Blockor DC-Jack
  • Low power consumption

Specifications


Technology

  • Standards:
    • IEEE802.1Q  IEEE802.3  IEEE802.3u  IEEE802.3x
  • Max forwarded packet length 1792 bytes (MAX)
  • Address Table Size:
    • 2K MAC addresses
    • 4-way Hashing Algorithm
    • Individual/Multicast MAC
  • Processing Type:
    • Store-and-Forwar
    • Half-duplex back-pressure and IEEE802.3x full-duplex flow control

Power

  • Input Voltage: 5 to 30VDC Terminal Block or DC-JACK
  • Reverse Polarity Protection
  • Overload Current Protection
  • Power Consumption:
    • 2W Max. 0.35A@5VDC>

Mechanical

  • Casing: metal case
  • Dimensions: 70mm (W) x 90mm (D) x 28mm (H)
  • Weight: 0.2Kg (0.44lb.)
  • Installation: screw terminal OR DC-JACK

Environment

  • Operating Temperature: -20°C to 70°C
  • Storage Temperature: -40°C to 85°C
  • Ambient Relative Humidity: 5% to 95% (non-condensing)
