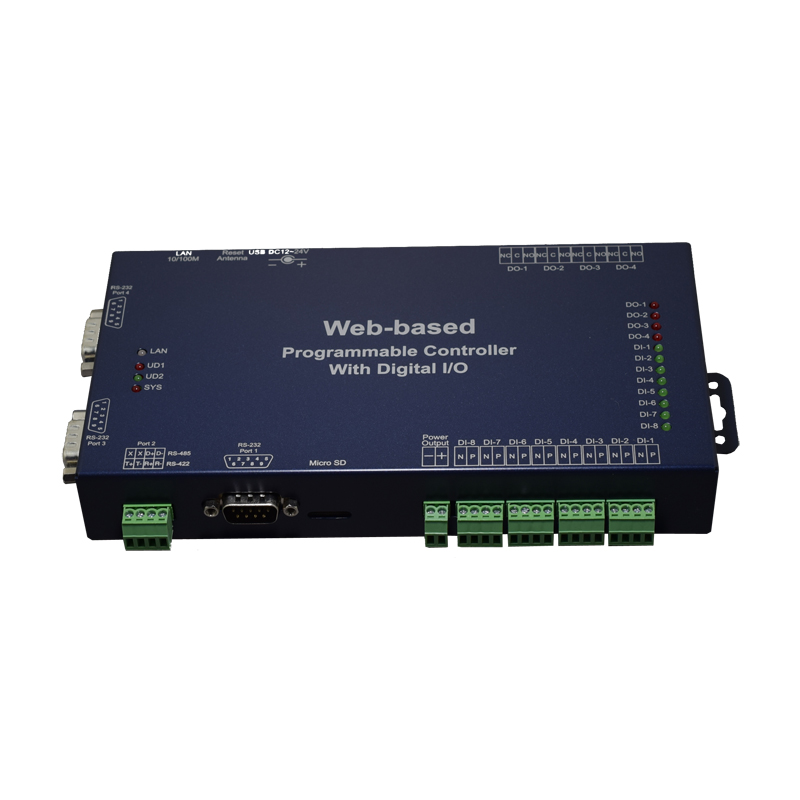

WPC-332-DIO84-Modbus

Part No.: MP-WPC-332-DIO84-Modbus

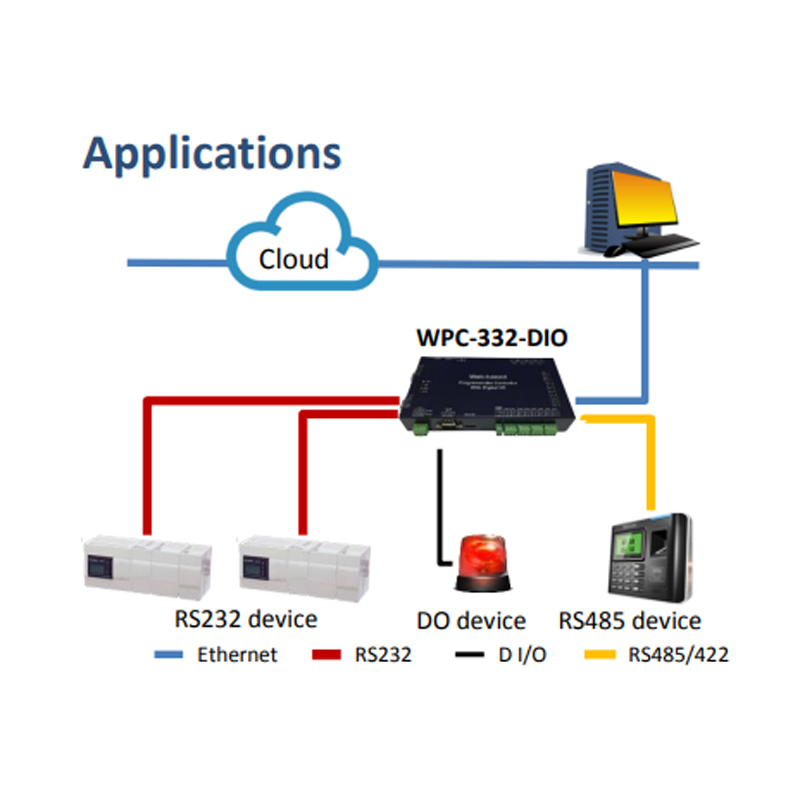

Programmable 4-Port Serial To Ethernet with Digital I/O

產品介紹

Features

  • μClinux S/W Programmable
  • Multi Serial interfaces with Ethernet IO
  • Ditial IO Controlled by TCP socket
  • Support 8 DI; 4 DO
  • DI support 3K VDC Isolation Protection
  • Web Browser configuration
  • Easy installation Windows utility
  • On line F/W upgrade

Specifications


Hardware

  • CPU: 32-bit ARM 7 CPU, 80 MHz
  • RAM: 16M bytes SDRAM
  • ROM: 8M bytes Flash ROM (4MB for program)
  • OS: µClinux OS
  • Watchdog: Built in H/W Watchdog timer

Software Features

  • OS Supported: Windows 2000/2003/XP/Vista/Win 7/Win 8
  • Configuration: Window Utility, Web Browser

Ethernet

  • Port number: 1
  • Port Type: RJ-45 Connector
  • Speed: 10 / 100 Mbps ( Auto Detect )
  • Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, PPPoE, DDNS, NTP, FTP, TELNET
  • Mode: TCP Server / TCP Client / UDP
  • Setup: HTTP Browser Setup (IE, Chrome, Firefox),
  • Security: Login Password
  • Protection: Built-in 1.5KV Magnetic Isolation

Serial Interface

  • Port number: 4
  • Port Type: RS-232 x 3 Port ( DB9 ) , RS-422/485 x 1 Port (Software select)
  • Connector: Male DB9 x 3 / 4-pin Terminal Block x 1
  • Speed: 300 bps ~ 230.4 Kbps
  • Parity: None , Odd , Even , Mark , Space
  • Data Bit: 5, 6 , 7 , 8
  • Stop Bit: 1 , 2
  • Built–in: RS-422/485 pull high / low Resistor
  • Protection: 422/485 Surge & Over Current Protection Built in 15KV ESD protection for all signals

Storage Interface

  • Micro SD slot: Micro SD card (Max. 16GB)
  • USB Host: 1

Regulatory Approval

  • FCC:  Part15 Class A
  • CE:  EN55022 Class A, EN55024
  • RoHS:  Compliance

Warranty

  • Warranty: 1 Year

Environment

  • Temperature:
    • Operating: 0°C ~ 65°C (32°F ~ 149°F)
    • Storage: -10°C ~ 70°C (-14°F ~ 158°F)
  • Humidity:
    • Operating: 10% ~ 95% non-condensing
    • Storage: 5% ~ 95% non-condensing

Digital I/O

  • Digital Input: 8 (active High / Low selectable)
  • Digital Output: 4 (active High / Low selectable)
  • DO x 4: Relay output,
  • DI x 8: 3000 VDC Isolation Protect
  • Dry contact:
    • Logic level 0 : close to GND ,
    • Logic level 1: open
  • Wet contact:
    • Logic level 0 : 0 ~ 3 V ,
    • Logic level 1: 10 ~ 30 V

Power

  • Input: DC 12 ~ 24V, 1000mA@ 12VDC
