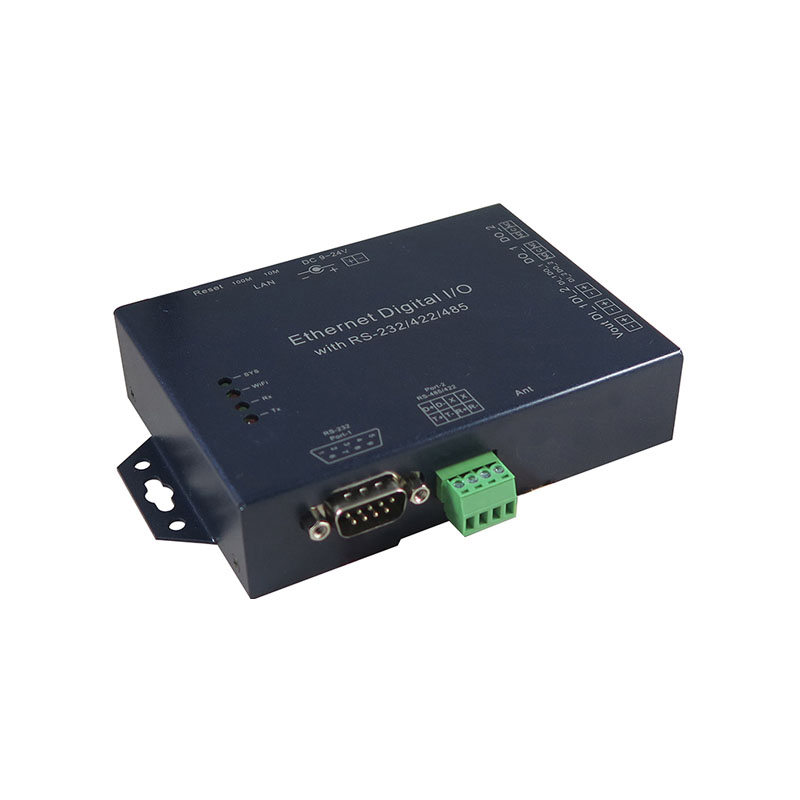

System |
-
CPU : 32-bit ARM Cortex M4 CPU, 120 MHz,
-
RAM : 128KB Internal SDRAM
-
ROM : 512KB Flash ROM
-
Watchdog : Built in H/W Watchdog timer
-
Software Features
-
OS Supported : Windows 2000/2003/XP/Vista/Win7/Win8/Win10
-
Configuration : Window Utility, Web Browser
|
|
Ethernet |
-
Port number : 1
-
Port Type : RJ-45 Connector
-
Speed : 10 / 100 Mbps ( Auto Detect )
-
Protocol : ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
-

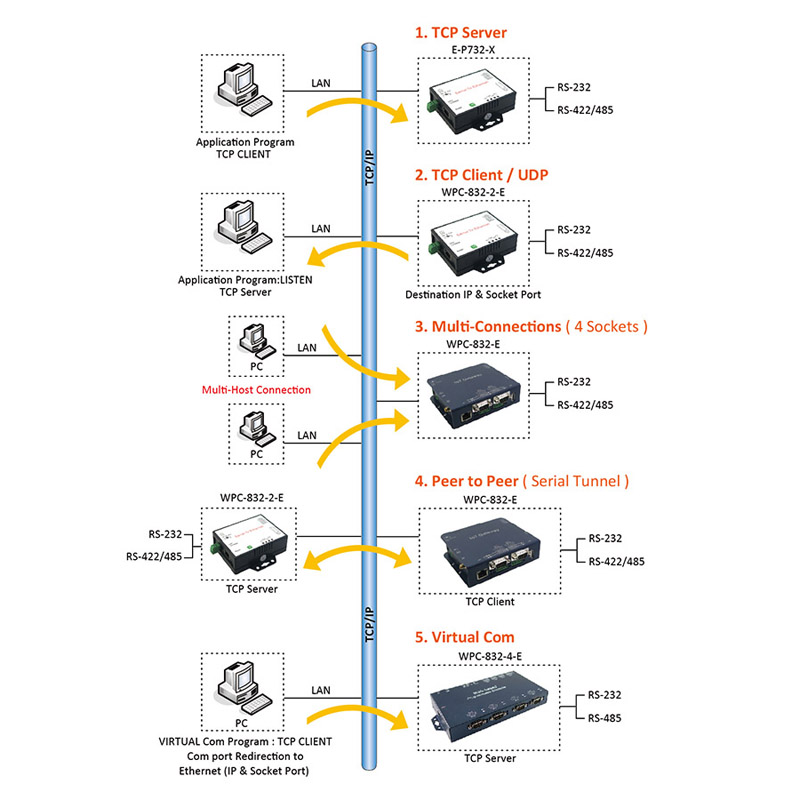

Mode : 1x TCP Server / 1x TCP Client / UDP / Virtual COM / Paring
-
Setup : HTTP Browser Setup (IE, Chrome, Firefox)
-
Security : Login Password
-
Protection : Built-in 1.5KV Magnetic Isolation
|
|
Serial Interface |
-
Port number : 2
-
Port Type : RS-232 x 1 Port ( DB9 ) ,
-
RS-422/485 x 1 Port (Auto Detect)
-
Connector : Male DB9 / 7-pin Terminal Block
-
Speed : 300 bps ~ 115.2 Kbps
-
Parity : None , Odd , Even , Mark , Space
-
Data Bit : 5, 6 , 7 , 8
-
Stop Bit : 1 , 2
-
Port 1 RS-232 : Rx , Tx , GND , RTS , CTS
-
Port 2 RS-422 : Rx+ , Rx- , Tx+ , Tx-
-
RS-485 : Data+ , Data-
-
Built–in : RS-422/485 pull high / low Resistor
-
Protection : 422/485 Surge & Over Current Protection
-
Built in 15KV ESD protection for all signals
|
|
Digital I/O : Digital * 8 , Digital *3 |
-
DO * 2 Relay ( Active High /Active Low Selectable )
120V AC@10A , 240V AC@7A , 24V DC@10A>
-
DI *2 3000VDC Isolation Protect ( Active High /Active Low Selectable )
Wet contact : Logic level 0 : 0~3 V , Logic level 1 : 10 ~ 30 V
LED SYS ( PWR ) , DI/DO , Port 2(RS-422/485), Port 1 (RS-232)
|
|
Regulatory Approval |
-
FCC Part15 Class A
-
CE EN55022 Class A, EN55024
-
RoHS Compliance
|
|
Environment |
-
Temperature : Operating: -10°C ~ 65°C (14°F ~ 149°F)
-
Storage: -20°C ~ 70°C (-4°F ~ 158°F)
-
Humidity : Operating: 10% ~ 95% non-condensing
-
Storage: 5% ~ 95% non-condensing
|
|
Software Features |
-
OS Supported : Windows 2000/2003/XP/Vista/Win7/Win8/Win10
-
Configuration : Window Utility, Web Browser
|
|
Power |
-
Input: DC 9 ~24V, 300mA@ 12VDC
-
Connector : DC Jack & 2-pin terminal block
|
|
