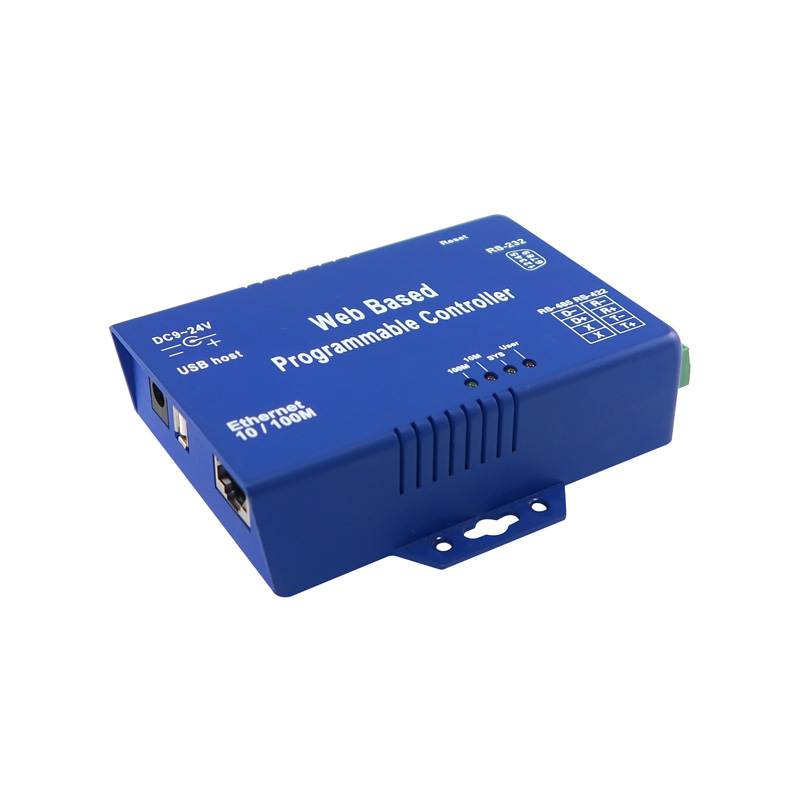

WPC-132-DL

Part No.: MP-WPC-132-DL
Modbus Data Logger

產品介紹

Features

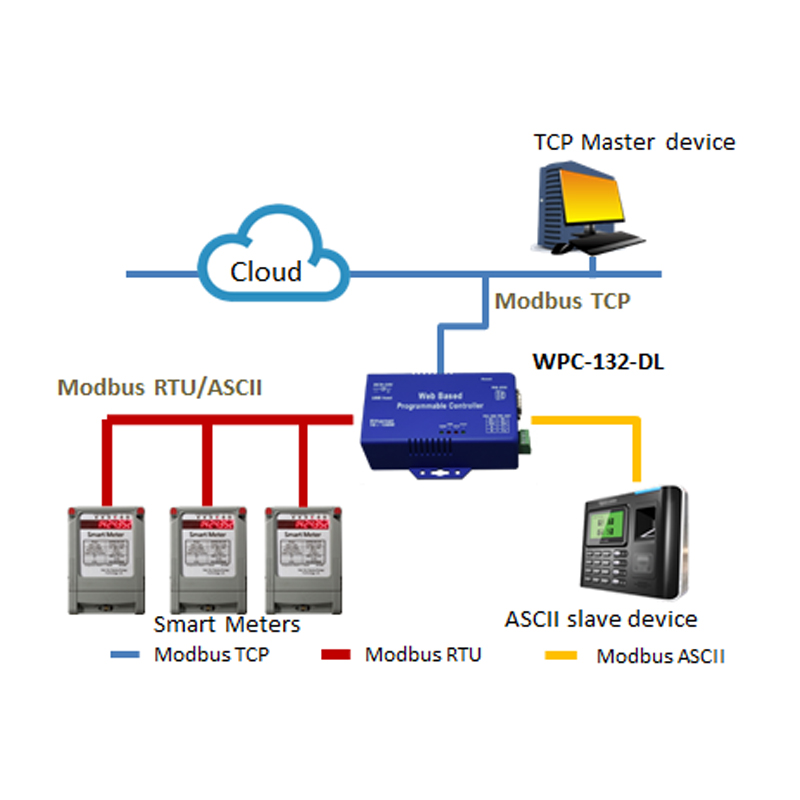

  • Support Modbus RTU protocol
  • Polling RTU meter data automatically
  • Send data to assigned server actively
  • Remotely query real time data
  • USB/SD local storage for data backup
  • Remotely download CSV format data file
  • Free PC Utility for data Excel & chart
  • Support up to 30 Modbus RTU meters

Specifications


Hardware

  • CPU: 32-bit ARM 7 CPU , 80 MHz
  • RAM: 8M bytes SDRAM
  • ROM: 4M bytes Flash ROM
  • OS: μCLinux OS
  • Watchdog: Built in H/W Watchdog timer
  • RTC: Built in RTC

Ethernet

  • Port number: 1
  • Port Type: RJ-45 Connector
  • Speed: 10 / 100 Mbps ( Auto Detect )
  • Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, TELNET, PPPoE, FTP, NTP, DDNS,
  • Mode: TCP Server / TCP Client / UDP
  • Setup: HTTP Browser Setup (IE, Chrome, Firefox), Web Console
  • Security: Login Password
  • Protection: Built-in 1.5KV Magnetic Isolation

Serial Interface

  • Port number: 1
  • Port Type:
    • RS-232 x 1 Port (DB9) OR
    • RS-422/485 x 1 Port Software Selectable
  • Connector:  Male DB9 / 4-pin Terminal Block
  • Speed: 300 bps ~ 230.4 Kbps
  • Parity: None , Odd , Even , Mark , Space
  • Data Bit: 5, 6 , 7 , 8
  • Stop Bit: 1 , 2
  • RS-232 pins: Rx, Tx, GND, RTS, CTS, DTR, DSR, DCD
  • RS-422 pins: Rx+, Rx-, Tx+, Tx-
  • RS-485 pins: Data+, Data-
  • Protection: 422/485 Surge & Over Current Protection Built in 15KV ESD protection for all signals

USB

  • Host x 1, max. 8GB

Software Features

  • OS Supported:  Win 2000/2003/XP/Vista/Win7/Win8
  • Configuration:   Window Utility, Web Browser

LED

  • SYS (PWR), LAN, LED1, LED2(User Define)

Power

  • input: DC 9 ~24V, 500mA@ 12VDC

Regulatory Approval

  • FCC: Part15 Class A
  • CE: EN55022 Class A, EN55024
  • RoHS: Compliance

Environment

  • Temperature:
    • Operating: 0°C ~ 65°C (32°F ~ 149°F)
    • Storage -20°C ~ 70°C (-4°F ~ 158°F)
  • Humidity:
    • Operating: 10% ~ 95% non-condensing
    • Storage 5% ~ 95% non-condensing

Warranty

  •  1 Year
