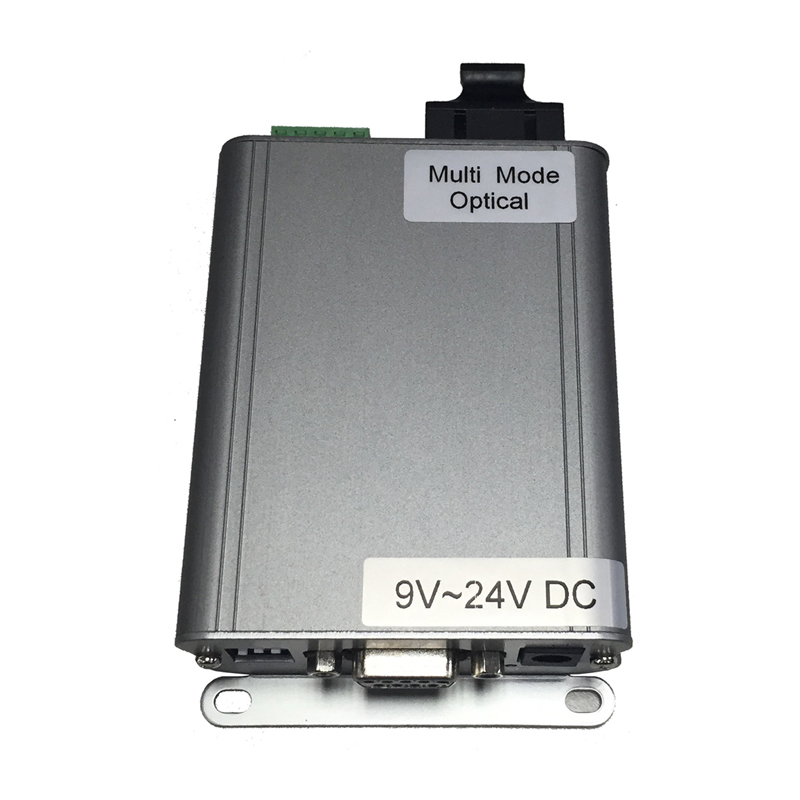

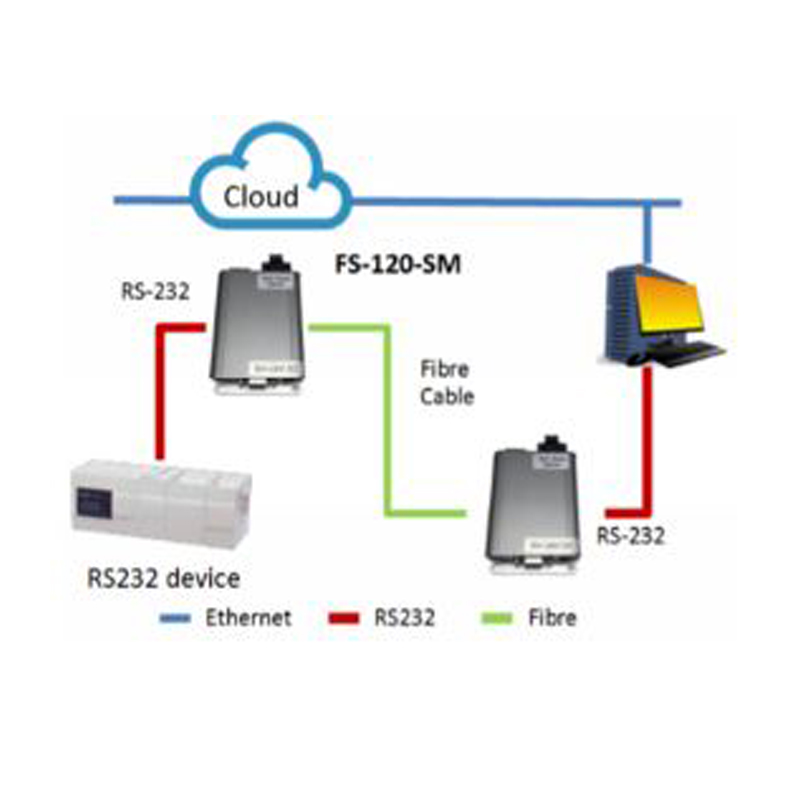

FS-120

Part No.: MP-FS-120
Fiber To RS-232/422/485 Converter

產品介紹

Features

  • Convert one RS-232 /422/485 port
  • Multi Mode max. distance reach 2Km
  • Single Mode distance up to 80Km
  • Low noise and low Bit Error Rate (BER)
  • Small cross talk

Specifications


Hardware

  • CPU: 32-bit ARM-Cortex-M3 CPU , 50 MHz
  • RAM: 64K bytes SRAM
  • ROM: 256K bytes Flash ROM
  • Watchdog: Built in H/W Watchdog timer

Fibre Optical

  • Port number: 1
  • Port Type: RJ-45 Connector
  • Speed: 10 / 100 Mbps ( Auto Detect )
  • Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, TELNET
  • Mode: TCP Server / TCP Client / UDP / Virtual Com /

Pairing

  • Setup: HTTP Browser Setup (IE, Chrome, Firefox)
  • Security: Login Password
  • Protection: Built-in 1.5KV Magnetic Isolation

Serial Interface

  • Port number: 1
  • Port Type: RS-232 x 1 Port ( DB9 ) , RS-422/485 x 1 Port (Switchable)
  • Connector: Male DB9 / 5-pin Terminal Block
  • Speed: 300 bps ~ 115.2 Kbps
  • Parity: None, Odd, Even, Mark, Space
  • Data Bit: 5, 6, 7, 8
  • Stop Bit: 1, 2
  • RS-232: DCD, Rx, Tx, DTR, GND, DSR, RTS , CTS, Ring
  • RS-422: Rx+, Rx-, Tx+, Tx-, GND
  • RS-485: Data+, Data-, GND
  • Built–in: RS-422/485 pull high / low Resistor
  • Protection: 422/485 Surge & Over Current Protection Built in 15KV ESD protection for all signals

LED PWR (front), D2, F, D1 (rear)

  • F: Optical status
  • D1: RS-422/485 status
  • D2: RS-232 status

Environment

  • Temperature:
    • Operating: -10°C ~ 65°C (14°F ~ 149°F)
    • Storage: -20°C ~ 70°C (-4°F ~ 158°F)
  • Humidity:
    • Operating: 10% ~ 95% non-condensing
    • Storage: 5% ~ 95% non-condensing

Software Features

  • OS Supported: Windows 2000/ 2003/ XP/ Vista/ Win 7/ Win 8
  • Configuration: Window Utility, Web Browser

Power

  • Input: DC 12V, 300mA@ 12VDC
  • Consumption: < 4W

Regulatory Approval

  • FCC: Part15 Class A
  • CE: EN55022 Class A, EN55024
  • RoHS: Compliance

Warranty

  • 1 Year
