Features

• Plug and Play installation
• Multi Mode max. distance reach 500m
• Single Mode distance up to 20Km
• Dual Power Input
• Low noise and low BER, Small Cross Talk

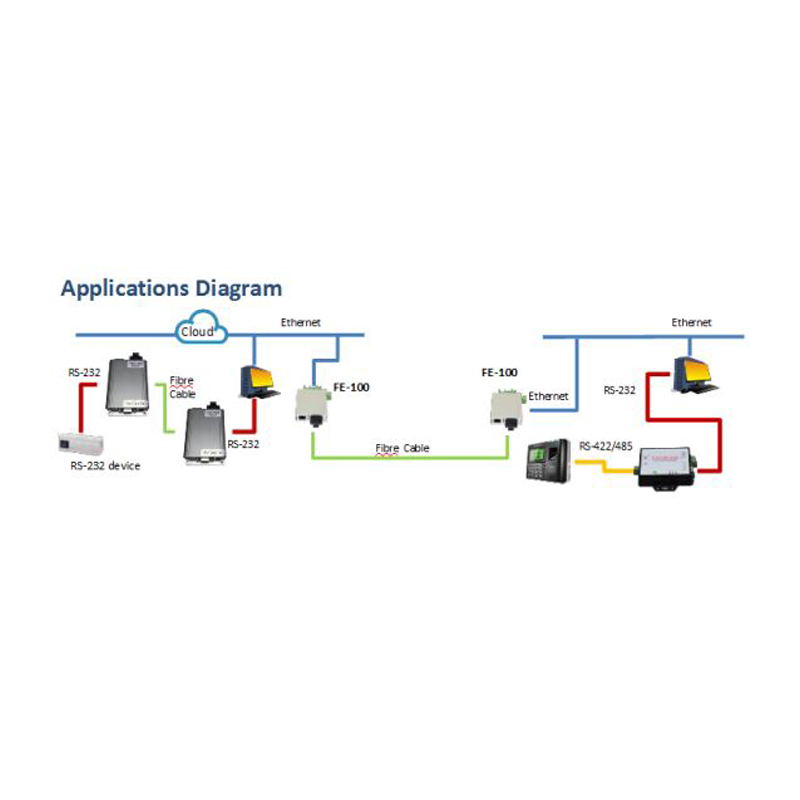

• For Real time Video Transmission, Video Broadcasting, VoIP, Industrial Monitoring, Broadband Data Communication, High Quality Audio Transmission

Specifications

Connector and Cable

• Connector Type: SC/FC /ST
• Single Mode Fiber:  9/125μm
• Multimode Fiber: 50/125 μm, 62.5/125μm

Optical

• Fiber type: Multi-Mode
• Distance: 500m
• Wavelength: 50/125 μm, 62.5/125μm , 850nm/1310nm
• Fiber type: Single-Mode
• Distance: 20Km
• Wavelength: 9/125 μm ,1310nm, 1550nm
• Power :12VDC/1A, dual power input

Ethernet

• Connector: RJ-45
• Standard: 802.3 10/100 Base-T
• MDI / MDI-X Auto
• Duplex Full-Duplex / Half Duplex

Regulatory Approval

• FCC: Part15 Class A
• CE: EN55022 Class A, EN55024
• RoHS: Compliance

Environment

• Temperature:
  • Operating: 0°C ~ 65°C (32°F ~ 149°F)
  • Storage: -20°C ~ 70°C (-4°F ~ 158°F)
• Humidity:
  • Operating: 10% ~ 95% non-condensing
  • Storage: 5% ~ 95% non-condensing

Dimension & Wight

• Dimension: 86 x 86 x 26 mm
• Weight: 100 g

LED

• Power, Link Speed, UTP Activity, Optical Activity, Optical Link

Warranty

• 1 Year
