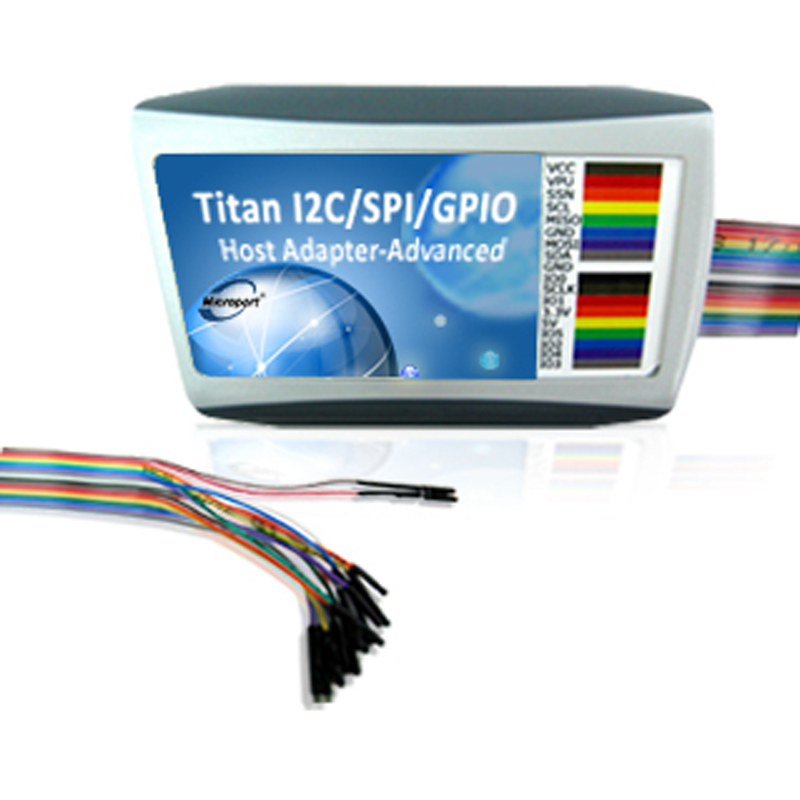

Titan I2C/ SPI/ GPIO Host Adapter Advanced

Part No.: MPI2CT-I2C/SPI/GPIO-Advanced
It allows a user to communicate with I2C and SPI devices.

產品介紹

Titan I2C/SPI/GPIO Host Adapter Advanced is a powerful I2C and SPI tool that allows a user to communicate with I2C and SPI devices. It includes the USB-based hardware and Windows software, compatible with Windows 98SE, ME, 2000, XP, Vista and the latest Microsoft operating system: Windows 7. A DLL included allows you to create your own I2C and SPI applications.

Examples using Visual C++, Visual Basic, C#, Delphi, and C++ Builder are provided.


Features


Overview

The I2C/SPI/GPIO Host Adapter software has the capability to program I2C and SPI serial EEPROMs, RAM, and FRAM from 16 bytes (128 bit) to 512k bits (64k bytes). Universal modes provide the flexibility to communicate with any I2C slave device.

The hardware is capable of transmitting I2C up to 1 Mb/s (note the I2C specification limits the speed to 400 Kb/s) and SPI up to 4Mb/s. There are 3.3V and 5V switchable power outputs on the USB-to-I2C hardware allowing you to supply low-power target systems.



What is included

  • Titan I2C/SPI/GPIO Host Adapter Advanced hardware

  • 14-pin split cable

  • 3 ft USB 2.0 cable

  • USB DLL allows you to create your own I2C and SPI applications

  • DLL examples for Visual C++, Visual C++ .Net, Visual C#, Visual Basic, Visual Basic .Net, Delphi, and C++ Builder

  • Titan I2C/SPI/GPIO Host Adapter Advanced Windows software

Specifications

Titan I2C/SPI/GPIO Host Adapter Advanced Windows application with universal I2C support and a custom interface for the following popular I2C devices:



EEPROMS

  • 128-bit (16 Bytes) up to 512k bits (64kB)

Universal I2C Interfaces

  • Expert Mode - a highly configurable user interface

  • User Definable - a useful generic interface with slider and spin controls

Thermal Management

  • LM75A Digital Temperature Sensor and Thermal Watchdog

  • NE1617 and NE1617A Temperature Monitors

  • SA56004 Remote and Local Temperature Sensor

  • SE98 SO-DIMM SMBus/I2C-bus temperature sensor

I2C Mux/Switch

  • PCA9541 I2C Master Selector

  • PCA9540B Two-channel I2C Multiplexer

  • PCA9542A Two-channel I2C Multiplexer with Interrupt

  • PCA9543A Two-channel I2C Switch with Interrupt and Reset

  • PCA9544A Four-channel I2C Multiplexer with Interrupt

  • PCA9545A Four-channel I2C Switch with Interrupt and Reset

  • PCA9546A Four-channel I2C Switch with Reset

  • PCA9547 Eight-channel Switch

  • PCA9548 Eight-channel I2C Switch with Reset

  • PCA9549 Octal Bus Switch

LED Blinkers/Dimmers

  • PCA9530 2-bit I2C LED Dimmer

  • PCA9531 8-bit I2C LED Dimmer

  • PCA9532 16-bit I2C LED Dimmer

  • PCA9533 4-bit I2C LED Dimmer

  • PCA9550 2-bit I2C LED Blinker

  • PCA9551 8-bit I2C LED Blinker

  • PCA9552 16-bit I2C LED Blinker

  • PCA9553 4-bit I2C LED Blinker

  • SAA1064 4-digit I2C LED Driver

Real-time Clocks

  • PCF8563 Real-time Clock/Calendar

IO Expanders

  • PCA9534 8-bit I2C I/O Expander with Interrupt

  • PCA9535 16-bit I2C I/O Expander with Interrupt

  • PCA9536 4-bit I2C I/O Expander

  • PCA9537 4-bit I2C I/O Expander with Interrupt and Reset

  • PCA9538 8-bit I2C I/O Expander with Interrupt and Reset

  • PCA9539 16-bit I2C I/O Expander with Interrupt and Reset

  • PCA9554 8-bit I2C I/O Expander with Interrupt

  • PCA9554A 8-bit I2C I/O Expander with Interrupt

  • PCA9555 16-bit I2C I/O Expander with Interrupt

  • PCA9556 8-bit I2C I/O Expander with Reset

  • PCA9557 8-bit I2C I/O Expander with Reset

  • PCA9559 5-bit I2C EEPROM DIP Switch

  • PCA9698 40-bit I2C I/O Expander with Interrupt and Reset

  • PCA9560 Dual 5-bit Multiplexed 1-bit Latched I2C EEPROM DIP Switch

  • PCA9561 Quad 6-bit Multiplexed I2C EEPROM DIP Switch

  • PCF8574 8-bit I/O Expander

  • PCF8574A 8-bit I2C I/O Expander

  • PCF8575 16-bit I2C I/O Expander

  • PCA8550 5-bit I2C EEPROM DIP Switch

  • PCA9500 8-bit I2C I/O Port with Interrupt and 2K EEPROM

  • PCA9501 8-bit I2C I/O Port with Interrupt and 2K EEPROM
