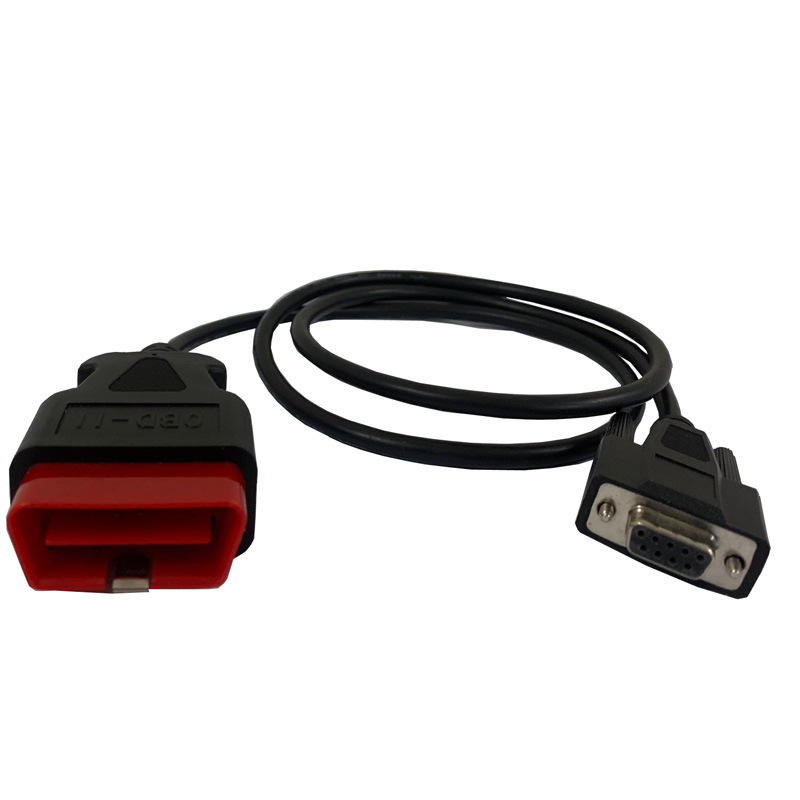

CAN-OBD-2 Diagnostics Cable

Many modern motor vehicles have an OBD-2 interface for connecting various diagnostics and testing tools. This adapter cable can be used to access the contained CAN lines.

Technical Specifications

• 9-pin D-Sub socket
  • Pin 2: CAN-Low
  • Pin 6: CAN-GND
  • Pin 7: CAN-High
  • Pin 9: CAN-Power
• OBD-2 connector – assigned for CAN only on:
  • Pin 4；Pin 5:  CAN-GND
  • Pin 6: CAN-High
  • Pin 14: CAN-Low
  • Pin 16: VBat
• Length 1.0 m
• Without termination resistors

Product Includes...

• OBD to DB9 Cable
