Description

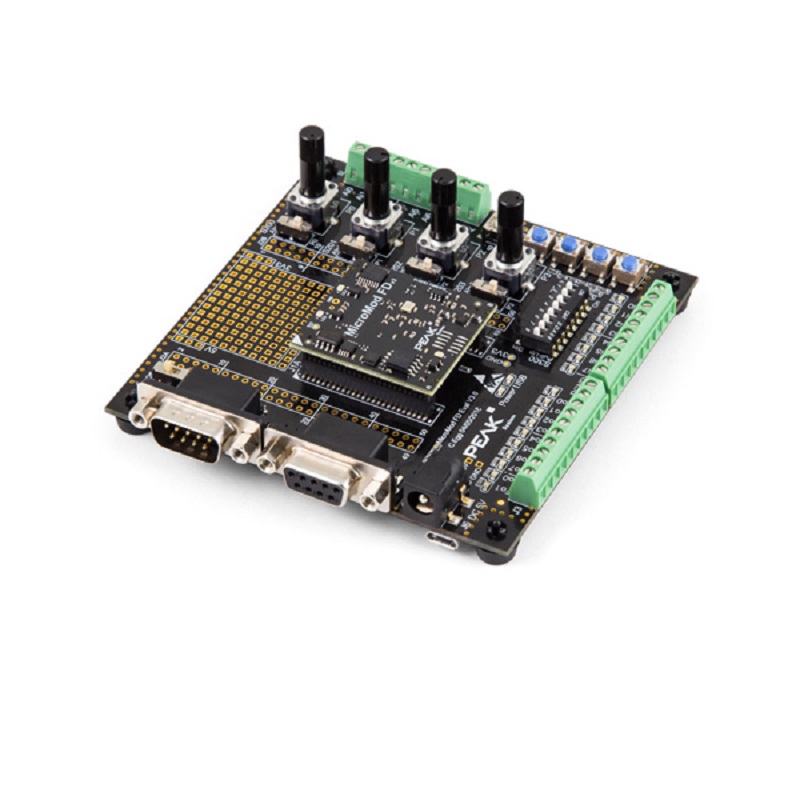

This product is an evaluation board for the PCAN-MicroMod FD and allows the conception and development of own circuits with CAN connection and I/O functionality. It can also be used for training purposes for CAN and CAN FD setups. Via pick-offs, screw terminals, switches, and potentiometers, the user can access the resources of the attached PCAN-MicroMod FD and check configurations or test circuits.

The configuration is done with a supplied Windows software which transfers the configuration data to the module via CAN. The optionally available Evaluation Kit includes the CAN interface and a CAN cable required for this purpose.

The PCAN-MicroMod FD Evaluation Board can alternatively be operated with CANopen firmware from our partner Embedded Systems Academy. A license for the CANopen firmware is included in the scope of delivery.

Requirements

The configuration requires a PEAK CAN interface.

Technical Specifications

• Board with plugged on PCAN-MicroMod FD
• CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)
• Screw terminal connections for all I/Os
• Switchable CAN termination of 120 Ohm
• Pick-offs for all pins of the PCAN-MicroMod FD
• Low-side switches for the digital outputs
• DIP switches for status change of the digital inputs
• Protected digital inputs
• LEDs for digital inputs and outputs
• 4 potentiometers for analog inputs
• Soldering fields for individual additional wiring
• RS-232 connection with V.24 signal levels for direct access to the microcontroller
• 4-bit rotary coding switch for setting the module ID
• Firmware upload via CAN, USB, or RS-232; switchable via 3 buttons
• Reset button for restarting the board
• Voltage supply 5 V via Micro-USB or barrel connection
• Operating temperature range from 0 to 70 °C (32 to 158 °F)
• Board 100 x 102 mm with rubber feet
