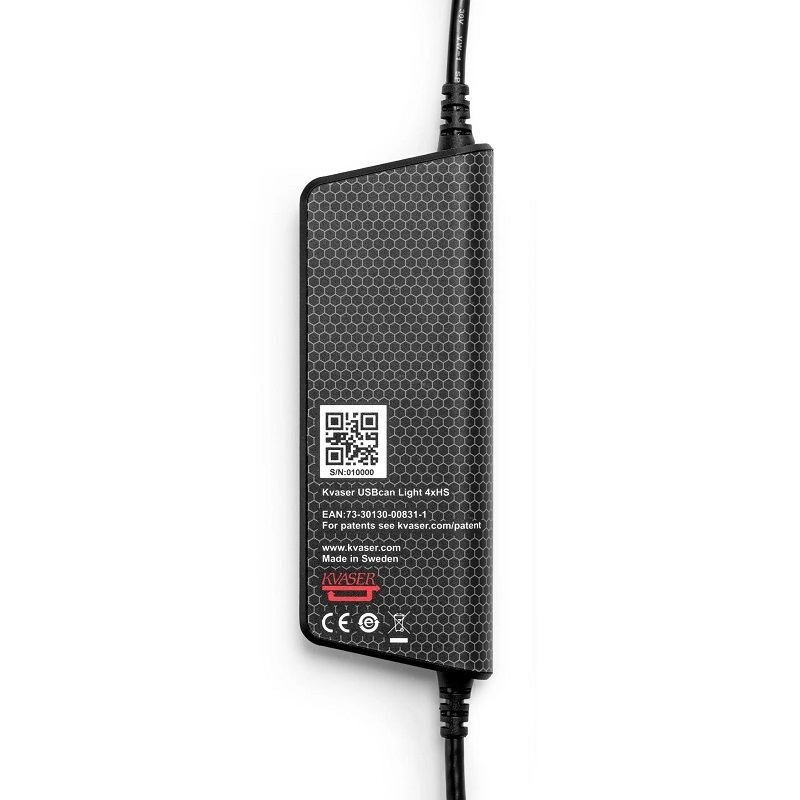

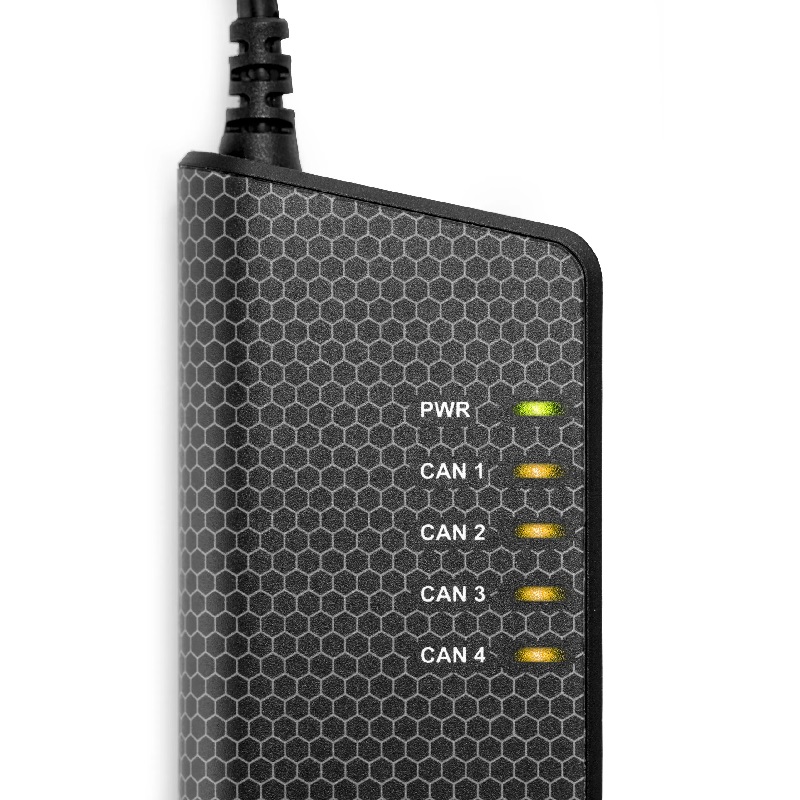

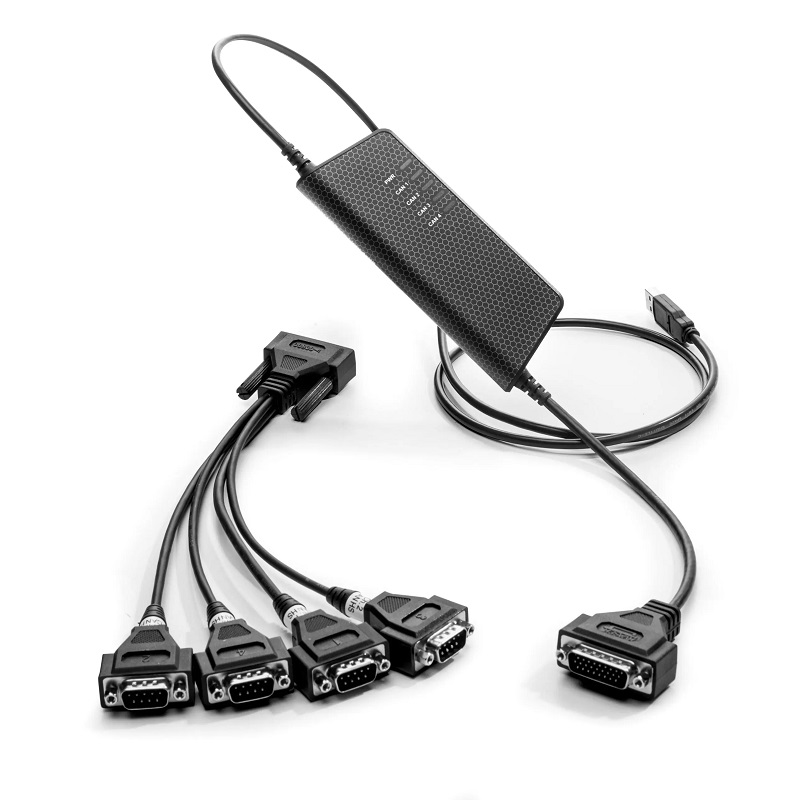

The USBcan Light 4xHS is a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer. With galvanic isolation as standard, this USB to quad channel CAN interface has a standard USB connector at one end and four high speed CAN channels in a single 26-pin HD D-SUB CAN connector at the other. The supplied HD26-4xDS9 splitter can be used to connect to four separate 9pin DSUB connectors.

Features

• Low cost USB CAN interface.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Simultaneous operation of multiple devices.
• Includes 4 channel breakout cable.
• Support for SocketCAN, see elinux.org for details.

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.
