Kvaser T-Cannector v2

Part No.: MPKV-73-30130-00776-5
Offering an adjustable CAN termination resistor

產品介紹

Description

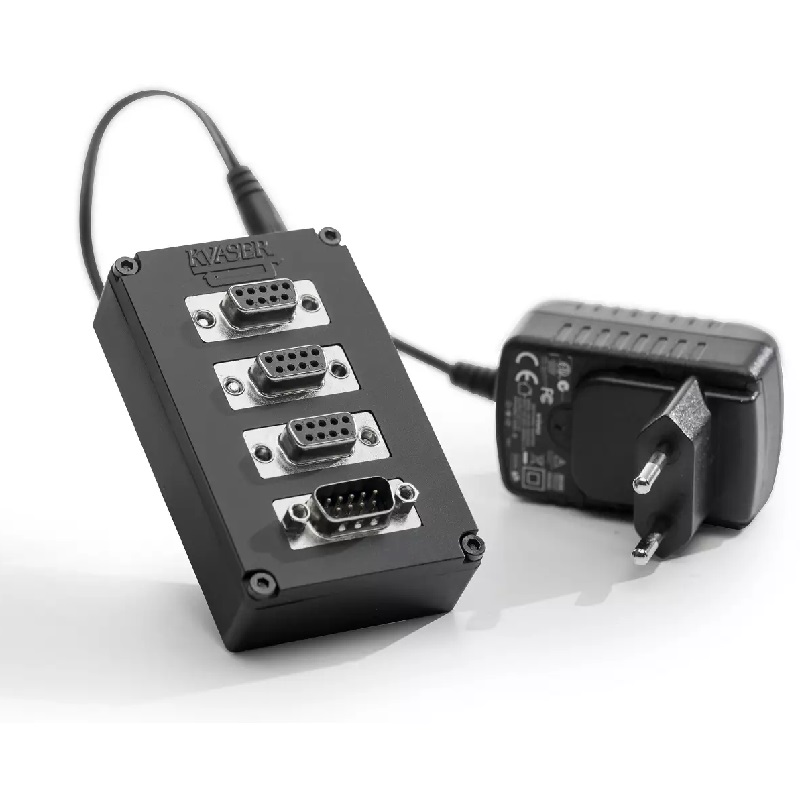

Kvaser T-cannector v2 is a CAN bus hub with three female and one male D-SUB9 connectors. Offering an adjustable CAN termination resistor (120 Ohm, 60 Ohm, or unterminated) it provides an affordable and safe way of terminating the CAN circuit when using Kvaser interfaces on a development board, as well as powering interface devices without internal power, such as Kvaser’s Blackbird and Memorator series.


Major Features

  • Acts as a CAN bus hub with 3 female and 1 male D-SUB9 connectors
  • Each DSUB9 has screws to secure the connection to the Kvaser CAN interface
  • Adjustable termination via easy-to-use switch
  • 12V 1A power supply
  • LED to indicate power on
  • Voltage range of 12V-24V DC

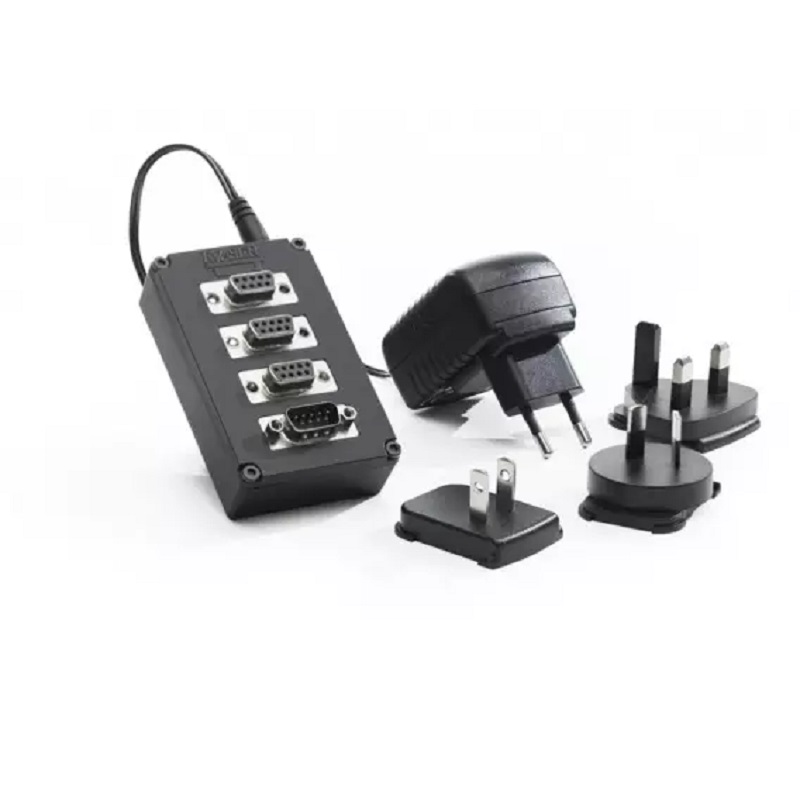

Kvaser T-cannector v2 is a CAN bus hub with three female and one male D-SUB9 connectors. Used typically in application development scenarios, this offers an adjustable CAN termination resistor (120 Ohm, 60 Ohm, or unterminated) that provides an affordable and safe way of terminating the CAN circuit, as well as powering devices that take their power from the USB connection or the CAN network to which they are attached, such as Kvaser’s Blackbird and Memorator series. This device comes with a 12V power supply and EU, USA, UK and Chinese plugs.

This is a new version of an existing product that responds to user requests for more termination options. Notably our previous product came in two versions: with fixed termination of 120 Ohms and without. The Kvaser T-cannector v2 is extremely price-competitive, providing an external 12V 1A power source for Kvaser CAN interfaces and a safe, trustworthy means of circuit termination that protects customer’s interface investment and will prevent short circuits from damaging their development boards.


Specifications

Bitrate - kbps
Categories Cables, Hardware, Accessories
Certificates CE, RoHS
Channels 4
Connectors DSub 9
Current Consumption Up to 3W
Error Counters
Reading
No
Error Frame
Generation
No
Galvanic Isolation No
Height 29 mm
Interfaces Cable
Length 90 mm
OS
  • Linux
  • Win XP, Vista, 7, 8, 10
Silent Mode No
Sound No
Temp Range -30 °C to +85 °C
Weight 400 g

Note:
Prices and specifications are subject to change without notice!
