Kvaser Leaf Light HS v2 CB

Part No.: MPKV-Leaf-Light-HS-v2-CB
It connects a computer to a CAN bus network.

產品介紹

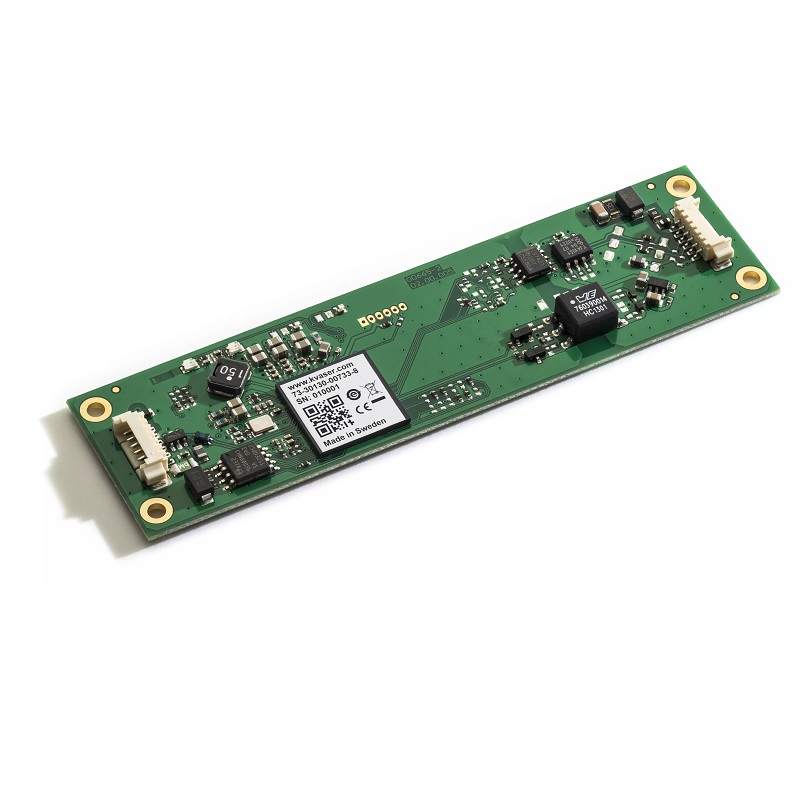

The Leaf Light v2 CB is the bare circuit board version of Kvaser's popular Leaf Light v2 interface - a single-channel, high speed, USB-to-CANbus interface. Having made its name as the work-horse of USB to CAN interfaces, Kvaser's Leaf Light product series provides reliable, low cost connection to the PC.



Major Features

  • The Kvaser Leaf Light HS V2 CB is a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.
  • Both USB and CAN are connected using 6-way connectors and mate with Molex 51021 PicoBladeTM (e.g. housing 51021-0600 and terminal 50079-8000).
  • 8000 messages per second, each time-stamped with 100 microsecond accuracy.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Galvanic isolation, enhancing protection from power surges or electrical shocks.
  • Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC.

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Specifications

Bitrate 40-1000 kbps
Categories Interfaces, PC Interfaces
Certificates CE, RoHS
Channels 1
Connectors MOLEX 6-PIN
Current Consumption 90mA
Error Counters Reading No
Galvanic Isolation Yes
Height 5 mm
Interfaces USB
Length 100 mm
Material PA66
Messages Per Second Receive 8000 mps
Messages Per Second Sending 8000 mps
OS Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Silent Mode No
Sound No
Temperature Range -20 - 70 °C
Timestamp R (µ) 100 µs
Weight 100 g
