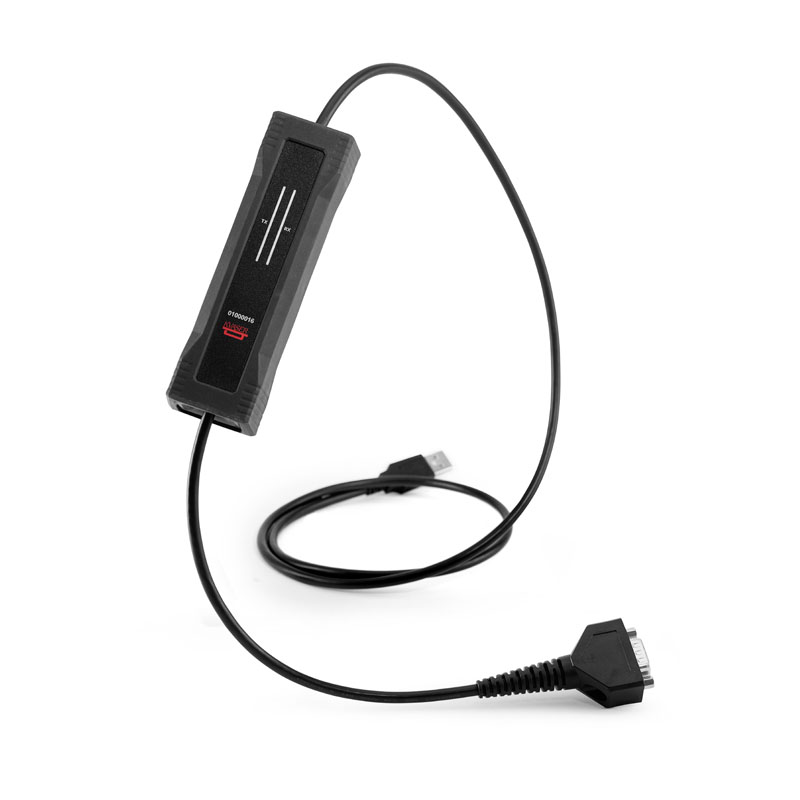

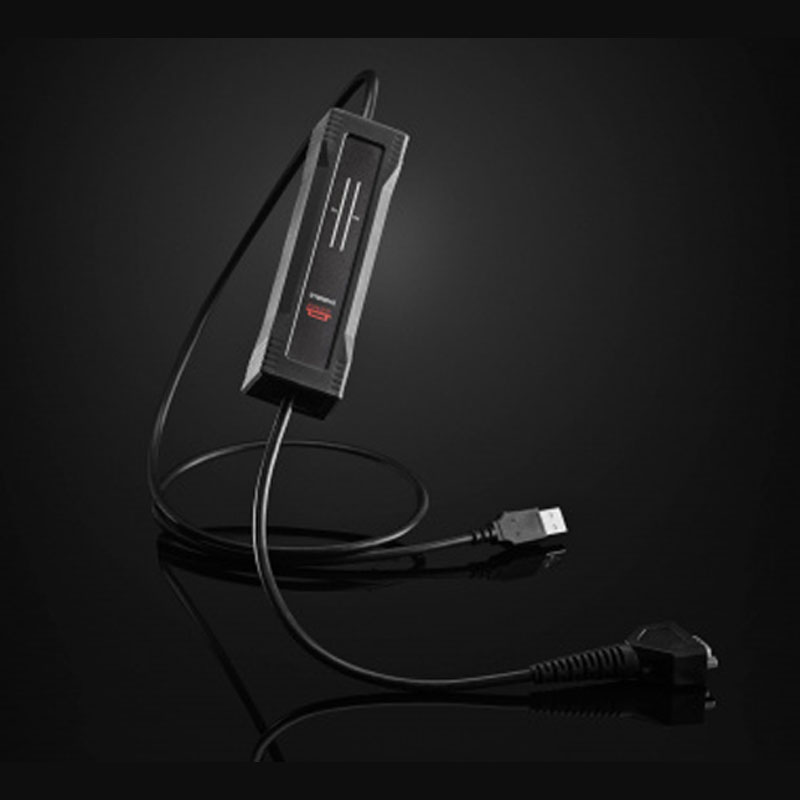

The Kvaser U100 is a robust, single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation that squarely addresses the needs of the evolving automotive development market. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this is the first in a new range of interfaces that is also suited to rugged applications in marine, industrial, heavy duty vehicle and heavy industries.

With enhanced protection of its own electrical circuits, a vibration, shock and drop-proof housing and high-quality cabling, the Kvaser U100 establishes a new reference in CAN interface design. At the same time, the U100 promises to drive down cost of ownership, whilst providing additional revenue opportunities for partners.

Major Features

• Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Powered through the USB connector.
• Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
• Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.
• IP67 rated.

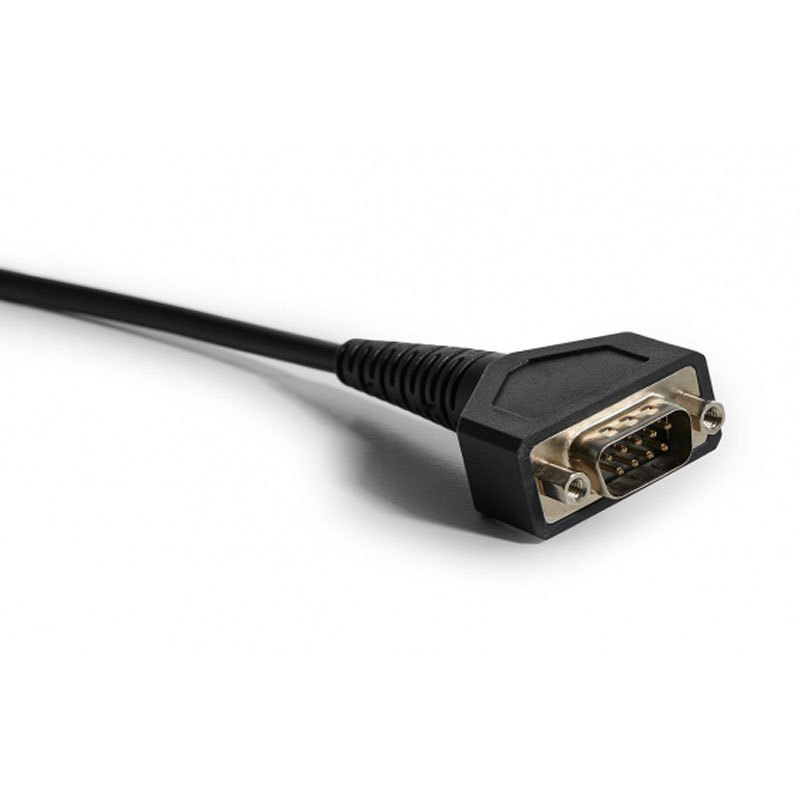

• DB-9 connector (other connectors available soon).

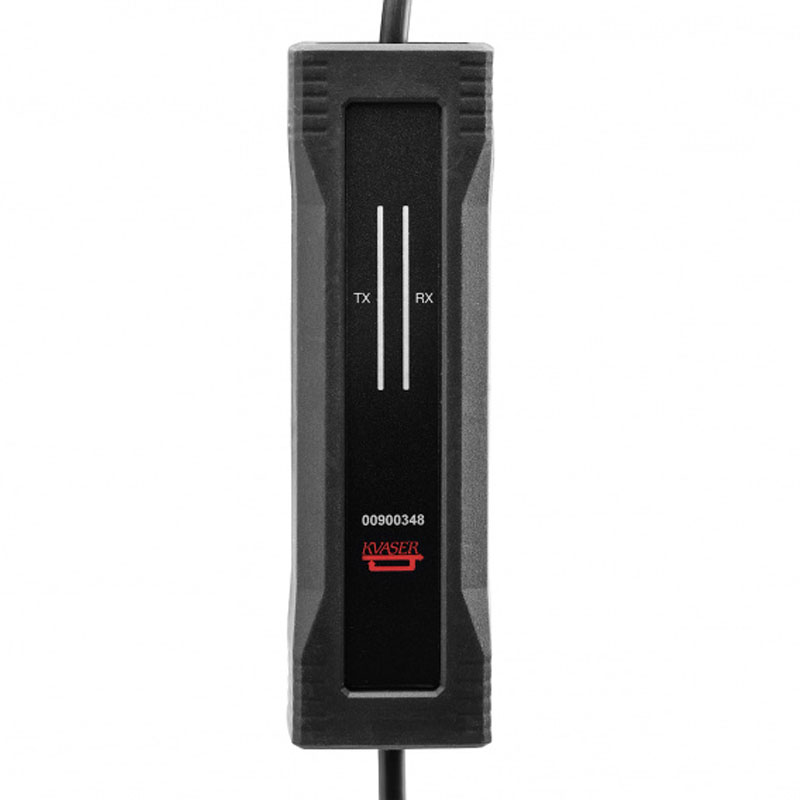

• Intelligent LED UI.
• Reinforced galvanic isolation, design validated with 5000 VAC rms applied for 60 seconds.
• Industrial grade temperature range, −40 °C to +85 °C.
• 20000 msg/s, each timestamped with a resolution of 100 μs.
• Support for SocketCAN.
• Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
• Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Warranty

• 1 year Warranty. (non-human factor damage). All malfunctions or damages which result from the act of God or any blameable misuse are not included.
