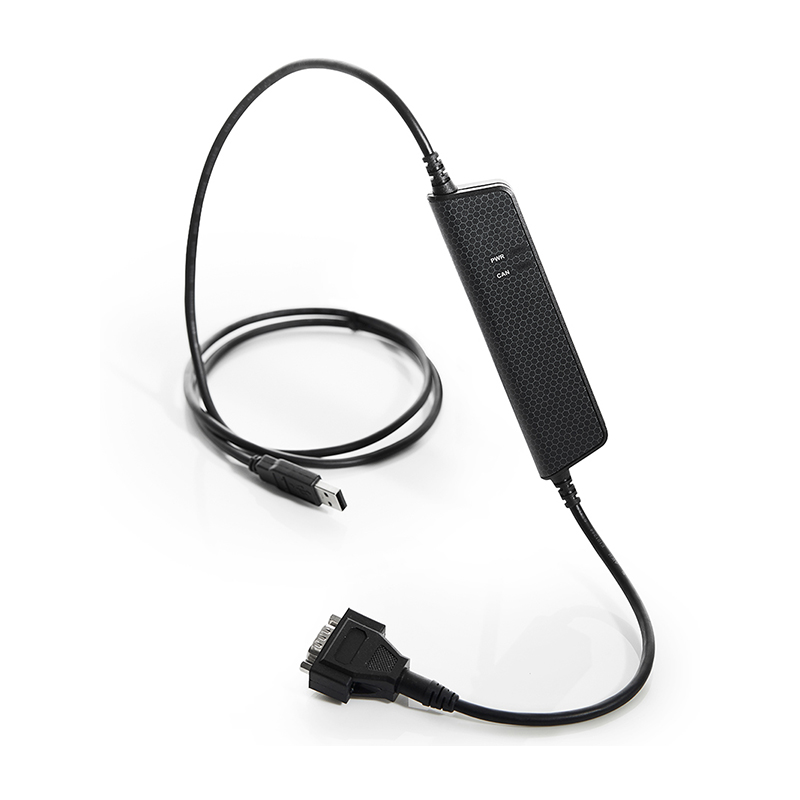

Kvaser Leaf Light HS v2

Part No.: MPKS-CAN-USB-Leaf-Light-HS-V2
It connects a computer to a CAN bus network.

產品介紹

The Kvaser Leaf Light HS v2 represents one of the easiest and lowest-cost methods of connecting a computer to a CAN bus network. With its USB 2.0 compliant connector and 9-pin D-SUB connector, the Leaf Light HS v2's sleek, ergonomically designed housing is both robust enough for everyday use and small and flexible enough to be used in space-constrained applications. Now with galvanic isolation as standard.

Kvaser's Leaf Light series is the workhorse of the CAN world. The Kvaser Leaf Light HS V2 supports high speed USB for CAN and offers high performance at low cost. Loss free transmission and reception of standard and extended CAN messages on the CAN bus is transmitted with a time stamp precision of 100 microseconds.


Major Features

  • The Kvaser Leaf Light HS V2 is a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.
  • 8000 messages per second, each time-stamped with 100 microsecond accuracy
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Galvanic isolation, previously a more expensive option on Kvaser's original Leaf Light, now comes as standard on the Leaf Light v2, enhancing protection from power surges or electrical shocks.
  • Low current consumption (70 mA) reduces power drain from your laptop.
  • Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC.

Specifications


Bitrate 40-1000 kbps
Buffers On Board Buffer
Channels 1
Connectors DSUB 9
Interfaces USB
Current Consumption 90mA
Error Counters Reading No
Error Frame Generation No
Galvanic Isolation Yes
Massages Per Second Receive 8000 mps
Messages Per Second Sending 8000 mps
Operating System Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Silent Mode No
Sound No
Temperature Range -20 - 70 °C
Timestamp R (µ) 100 µs
Certificates CE, RoHS
Length, Height, Weight 165 mm, 17 mm, 110 g
Material PA66
