Kvaser Hybrid 2xCAN/LIN

Part No.: MPKS-CAN-LIN-Kvaser-Hybrid-2xCAN/LIN
This is a flexible, dual channel interface that allows each channel to be assigned independently as CAN or LIN.

產品介紹

Kvaser Hybrid 2xCAN/LIN is a flexible, dual channel interface that allows each channel to be assigned independently as CAN or LIN. This makes the Kvaser Hybrid 2xCAN/LIN a must-have "universal interface" for every engineer involved in automotive communications!

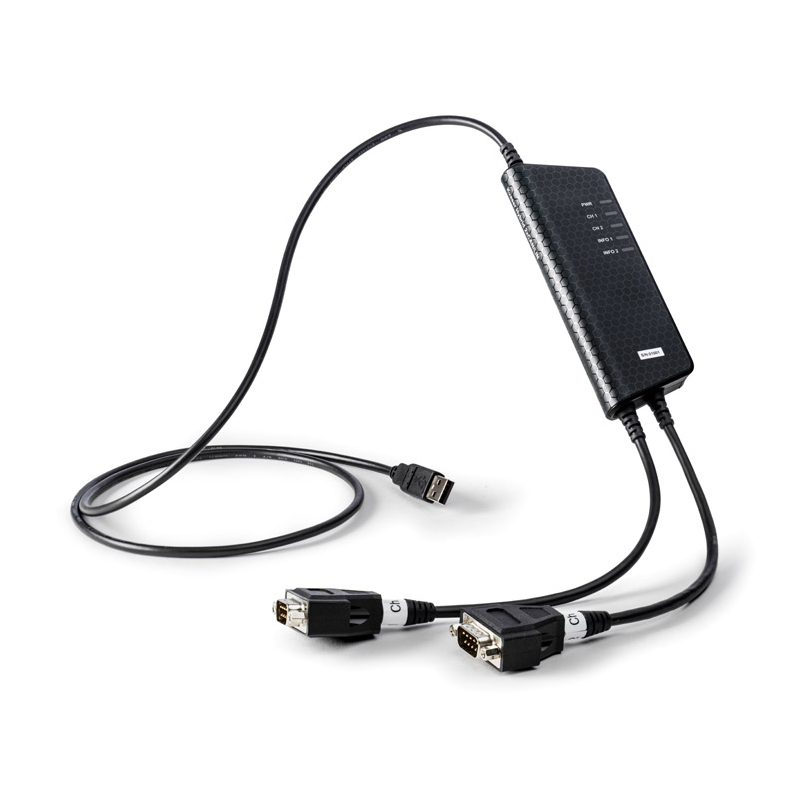

With a standard USB connector and two CAN/LIN channels in two separate 9-pin D-SUB connectors, this interface can connect a PC to two CAN buses, two LIN buses, or one CAN and one LIN bus.


Features

  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
  • Capable of sending up to 20000 messages per second, per CAN channel.
  • Supports CAN FD up to 5Mbit/s (with proper physical layer implementation).
  • Quick and easy plug-and-play installation.
  • Supports CAN 2.0 A and CAN 2.0 B active.
  • USB powered (bus V+ reference required for LIN).
  • LEDs indicate device status and bus activity.
  • Galvanically isolated CAN buses.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
  • Extended operating temperature range from -40 to 85 °C.
  • Support for SocketCAN, see elinux.org for details.


Specifications


Bitrate 50-1000 kbps
Buffers On Board Buffer
Channels 2
Connectors DSUB 9
Interfaces USB
Current Consumption Max 280 mA
Error Counters Reading No
Error Frame Generation No
Galvanic Isolation Yes
Massages Per Second Receive 20000 mps
Messages Per Second Sending 20000 mps
Operating System Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Silent Mode No
Sound No
Temperature Range -40 - 85 °C
Timestamp R (µ) 50 µs
Certificates CE, RoHS
Length, Height, Weight 170 mm, 20 mm, 170 g
Material PA66
