CANmod.temp

Part No.: MPCSS-CANmod-temp
4 x Thermocouple-to-CAN [Temperature Sensor]

產品介紹

Description

This thermocouple-to-CAN module produces temperature data from 4 thermocouple sensors and outputs it via CAN bus. The module is 100% standalone - no PC required.

The module supports all thermocouple types (B, E, J, K, N, R, S, T) and can be daisy-chained for 8, 12, 16, ... channels.

You can integrate the module with any CAN bus system - e.g. to provide temperature data for your ECUs or existing CAN hardware.

As an example, you can use the module as an add-on for the CANedge - ideal for e.g. engine dynos, EGT analysis, HVAC monitoring and other temperature telematics use cases.

Probes not included - see suggested suppliers. Optional adapters (dropdown).


Main Features

Simple CAN Logger Easy Use Dummies Plug & Play
Standalone - no PC required. Integrate with any CAN bus to add temperature data. DBC included

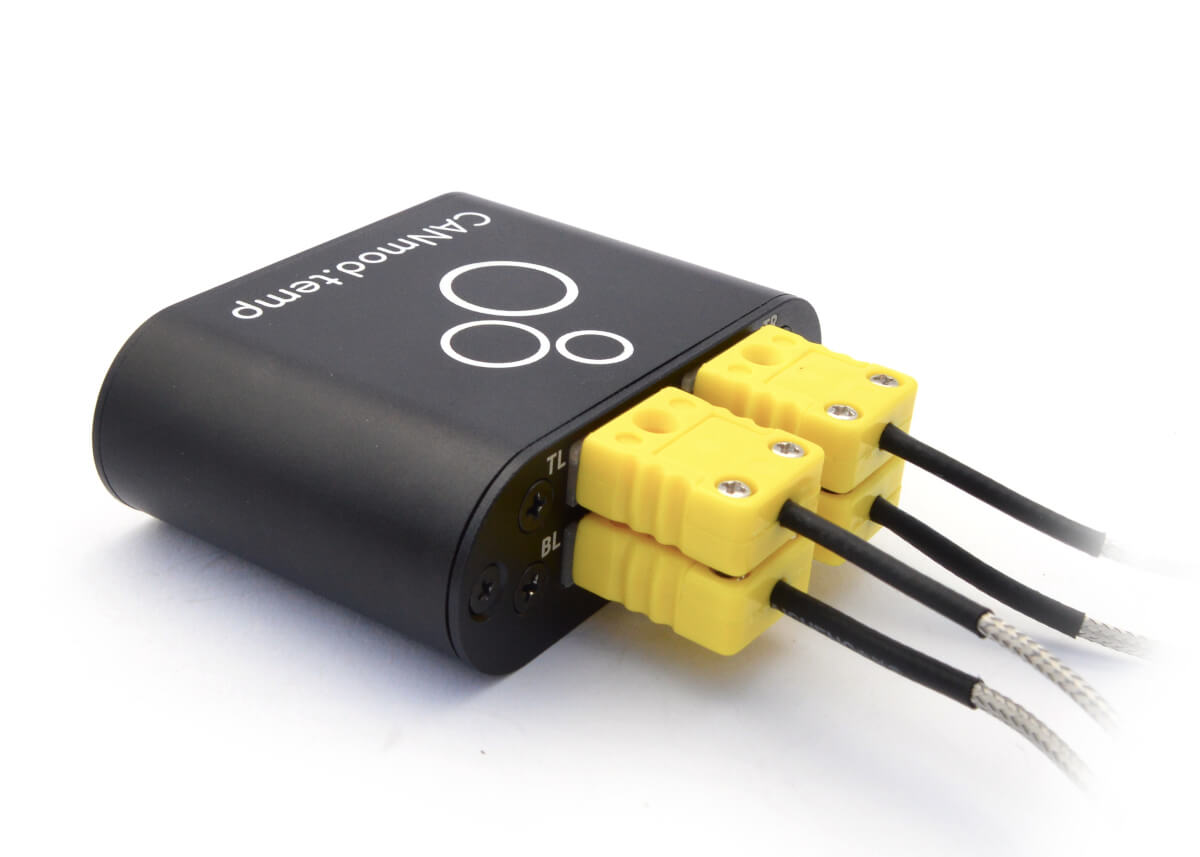

Compact Thermocouple-to-CAN-bus module
Compact
Only 7 x 2 x 5 CM. 70G. Alu enclosure. 3 LEDs. 5-28 V DC via DB9. USB for config/firmwave
Four channel thermocouple to CAN bus module
Thermocouples
Output data from 4 thermocouple senors at 1 Hz in one CAN frame
Automotive temperature sensor module CAN bus
Precise
±0.15% accuracy. Cold-junction compensation. Line frequency filtering. Fault detection
Configurable Thermocouple Type CAN bus
Use Any Type
Independently configure each thernocouple channel type (B, E, J, K, N, R, S, T)
Temperature-to-CAN-bus configuration
CONFIGURABLE
Configure CAN IDs, bit rate, message frequencies and more via JSON config and GUI

Easily add temperature data to any CAN bus system

Add temperature sensor data via 4 thermocouples to your CAN bus - e.g. for use by ECUs or CAN hardware.

  • Compatible with any high speed CAN bus (2.0A, 2.0B)
  • Fully configure CAN IDs, bit rate and message frequency
  • Daisy-chain multiple modules for 8, 12, 16, ... channels
  • Power at 5-28 V DC via standard DB9 adapter cables
  • Optionally record the data via any CAN interface/logger/...
  • Example: Use as add-on for the CANedge (power via 2nd port)
  • DBC file included for easy decoding to human-readable form
  • White label e.g. for inclusion in your production


The CANmod.temp module lets you connect up to 4 thermocouple probes (of configurable type) and output the temperature  data via configurable CAN frames into any CAN bus

CANedge Thermocouple-to-CAN-bus add-on module temperature adapter

You can install the CANmod.temp 'standalone' in any CAN system (cars, trucks, ships, ...) to inject configurable CAN frames with temperature data into the existing CAN traffic


CANedge Thermocouple-to-CAN-bus add-on module temperature adapter

The CANmod.temp module can e.g. be used as a plug & play add-on for the CANedge (powered via 2nd port) - letting you combine CAN/LIN data with timesynced temperature data


CANedge Thermocouple-to-CAN-bus add-on module temperature adapter

You can also log 2 x CAN/LIN with a CANedge along with data from the CANmod.temp, by e.g. utilizing a DB9 Y-splitter to connect both devices to one of the bus networks

CANedge Thermocouple-to-CAN-bus add-on module temperature adapter
If you deploy the CANmod.temp to output data directly into your CAN bus, the data can e.g. be used by other ECUs on the network


CANedge Thermocouple-to-CAN-bus add-on module temperature adapter

The CANmod.temp can be configured via the USB connector using our online/offline config editor tool (or a simple JSON text editor)


Technical Specifications


General
Functionality The device supports 4 x thermocouples for outputting temperature sensor data via CAN bus

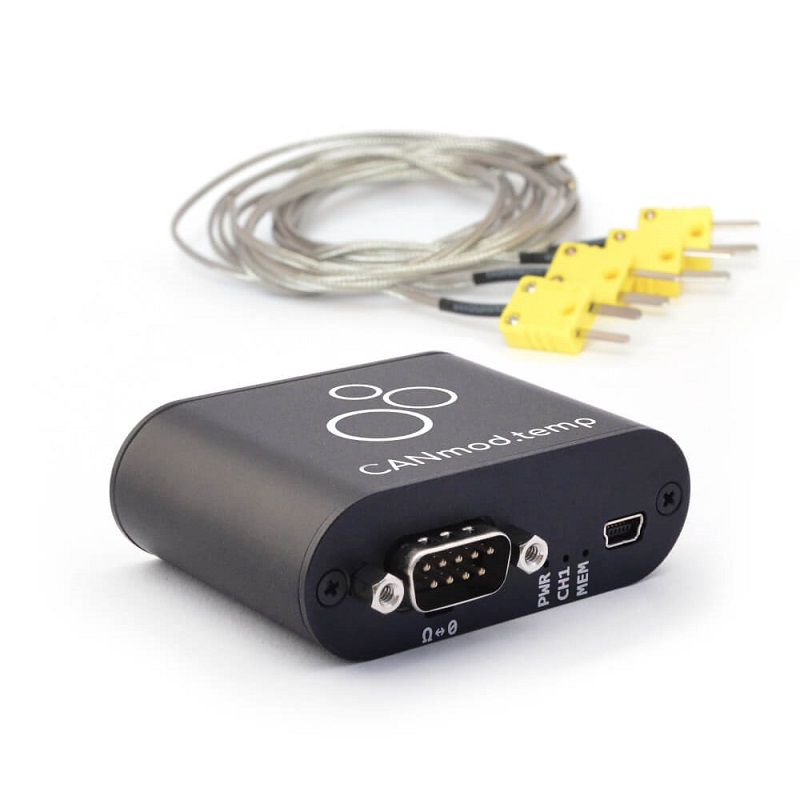

Included CANmod.temp module, USB dust cover (thermocouple sensors and mini USB adapter not included)
Firmware Supports free firmware updates via USB for adding features
Configuration Configuration files based on the popular open source JSON schema concept (similar to the CANedge)
Software Free open source editor tool for easy device configuration (offline/online version available)
Safety CE, FCC, IC and RoHS certified (see the Docs for certificates)
Warranty 1-year warranty
Support Free, fast & high quality support
Origin Denmark
SENSOR (Temperature)
Channels Supports up to 4 thermocouple sensors/channels (plus ambient temperature via cold-junction)
Module Professional-grade MAX31856MUD+ precision thermocouple converter
Temperature Range Supports a range of -210°C to +1800°C (depending on thermocouple type)
Accuracy Lab-grade thermocouple voltage measurement accuracy of ±0.15% via cold junction
Resolution
Thermocouple temperature measurements are output on CAN at a 1 degC resolution
Protection Thermocouple inputs are protected against overvoltage conditions up to ±45V
Types Supports thermocouple types B, E, J, K, N, R, S, T (via configuration)
Filtering Line frequency filtering of 50Hz and 60Hz (via configuration)
Fault Detection
Thermocouple fault detection (open thermocouples, over- and undertemperature) is communicated via CAN
Cold Junction ±0.7°C (max, -20°C to +85°C) cold-junction accuracy
DATA PARAMETERS
CAN Signals
  • The module communicates temperatures and fault statuses (for a full list, see the Docs or DBC file)
  • Thermocouple temperatures: The degree celsius (degC) temperature of each thermocouple probe [1 Hz]
  • Ambient temperature: The ambient temperature measured via internal cold-junction [1 Hz]
  • Faults: Status of each thermocouple sensor [1 Hz]
CAN BUS
Channels 1 x CAN channel
Modes
The device can either broadcast the data onto the CAN bus - or provide it on-request
Standard ISO 11898: Compliant with CAN (up to 1 Mbit/s)
Identifiers Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Termination Termination can be toggled via switch below DB9 connector
Retransmission Retransmission of frames that have lost arbitration or been disturbed by errors
CONFIGURATION
Bit Rate Select between standard bit rates (5K to 1M) or use custom bit-timing
Enable/Disable Individually enable/disable the CAN message
Identifier Customization Individually configure the CAN ID (11-bit or 29-bit)
Push/Poll Mode Individually configure 'trigger' modes for the CAN messages (push or poll)
Frequency Individually configure prescaling of the CAN message frequencies to lower rates
Thermocouple Type Specify the thermocouple type for each channel (e.g. Type K, Type J, ...)
Line Noise Filtering Select rejection of 50 Hz (EU) and its harmonics or 60 Hz (USA) and its harmonics
 ELECTRICAL
Input Supply +5V to +28V DC via the DB9 connector (power via pin 1 or pin 9)
Power Consumption Extremely low (<1W) - no risk of battery drainage
Protection
  • Reverse voltage protection on CAN-bus supply
  • Transient voltage event protection on supply lines
MECHANICAL
Enclosure & Weight Compact aluminium enclosure: 52.5 x 70.0 x 24.5 mm (L x W x H) excl. antenna, 70 grams
Connector 1 x Standard D-sub 9 (DB9) connector
Pin-Out  See the product manual for the DB9 connector pin-outs
USB Standard mini USB connector for configuration and firmware updates (USB adapter cable not included)
LEDs Module status via 3 external LEDs: Power, CAN bus, Memory
Temperature Operating temperature (CANmod.temp module): -25degC to +70degC
IP Rating IP Rating 40
Mounting Module can be mounted via e.g. rugged double-sided tape, zip-ties or a mounting bracket



Use Cases

The CANmod.temp can be installed standalone in any CAN bus system - including e.g. as an add-on for the CANedge.


Thermocouple-to-CAN module standalone OEM white label



Add temperature data to your CAN bus

Need to inject temperature data directly into your CAN bus?

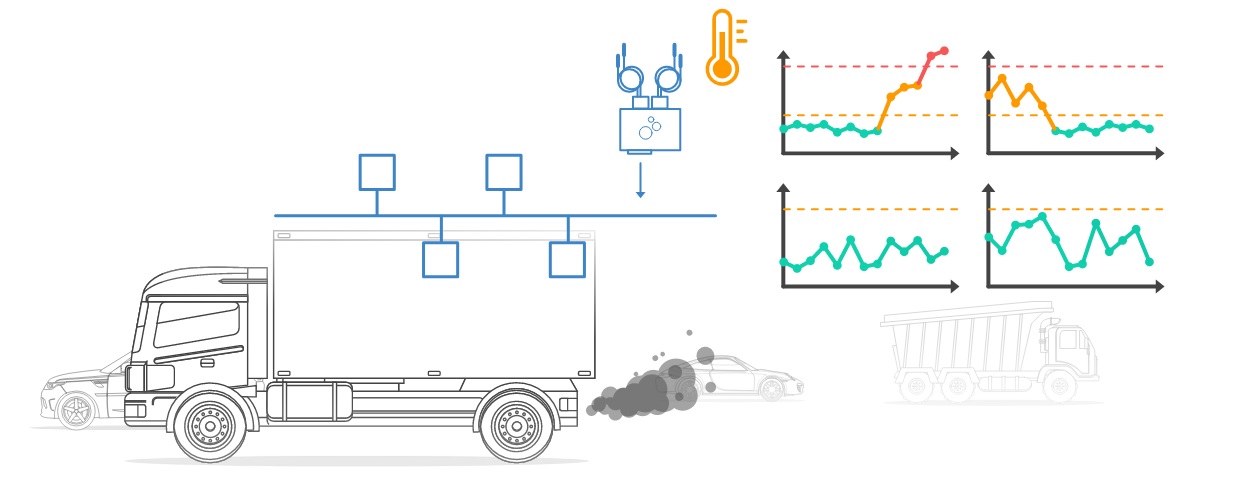

The thermocouple-to-CAN module can be used standalone to inject CAN frames with temperature into your CAN bus system. The data can be consumed by other CAN nodes on the network - e.g. ECUs, cabin displays, CAN loggers or telematics control units (TCU). To ensure compatibility, you can modify the module output bit rate and CAN IDs via the simple config editor. Ideal for use in e.g. automotive development, engine dynos, fleet management, dispute handling and more.



Thermocouple-to-CAN CANedge add-on WiFi automotive telematics



CAN + temperature data logging & telematics

Need to collect vehicle CAN bus and temperature data via SD/WiFi?

The CANmod.temp can be deployed as an 'add-on' module for the CANedge. Simply configure the CANedge to provide a 5V power out via the 2nd port - and connect the CANmod.temp via the optional adapter cable. This lets you log e.g. vehicle CAN bus data via channel 1 and time-synced temperature data via channel 2. This provides a flexible data logger for exhaust gas temperature (EGT) analysis - or a telematics solution for automotive heating, ventilation, and air conditioning (HVAC) applications.

Vehicle Telematics CAN Bus Temperature OBD2 Cloud Telematics Dashboard



On-road vehicle temperature telematics

Need to collect vehicle and temperature data via 3G/4G?

The CANedge2 can upload data while on-the-road using e.g. a 3G/4G USB router. You can power the 3G/4G hotspot from the vehicle - or use our DB9-DB9/USB adapter to power both the hotspot and CANmod.temp via the 2nd port of the CANedge2. The uploaded log files can e.g. be visualized in telematics dashboards. Ideal for e.g. 'temperature telematics' use cases like HVAC monitoring, refrigirator tracking for perishable goods, temperature-based alerts, predictive maintenance and more.

Daisy Chain Thermocouple to CAN bus temperature sensor modules


Daisy-chaining thermocouple modules

Need a larger number of thermocouple channels?

The CANmod.temp is extremely simple to setup and configure. With all data contained in 1 CAN frame, you can quickly daisy-chain several modules to add 8, 12, 16, 20, 24, 30, ... thermocouple channels to your CAN bus (e.g. using DB9-Y-splitters). Every individual thermocouple probes can be independently configured to any type - allowing for complete customization. If you wish to record the data to a CAN bus data logger, you can use the CANedge to easily power a full chain of modules via the 2nd port.
