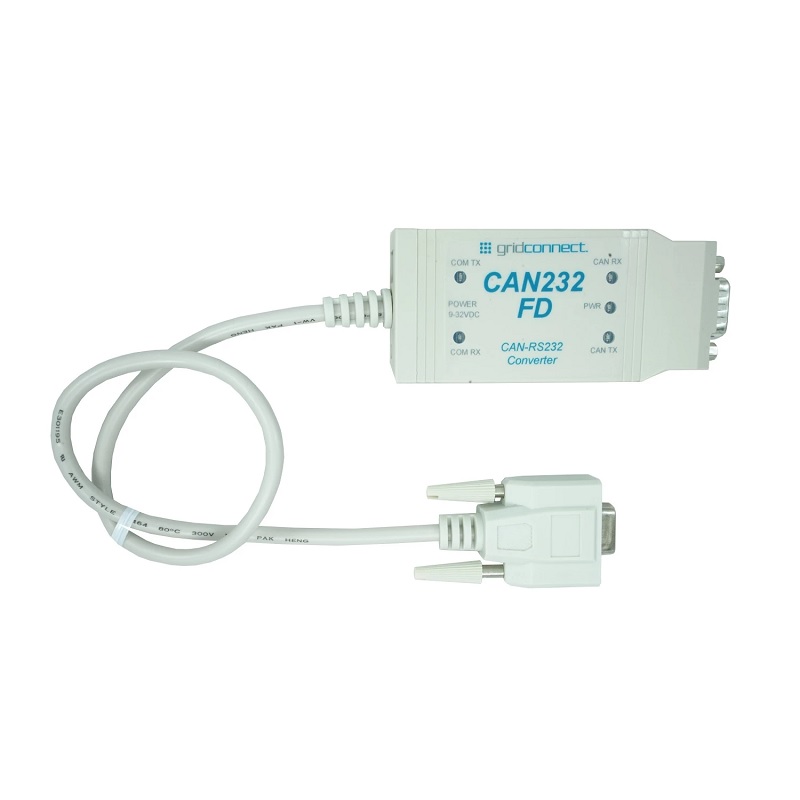

CAN232 FD - RS232 TO CAN FD CONVERTER
Part No.: MPGC-CAN232-FD-RS232-TO-CAN-FD-CONVERTER
The RS232 CAN FD converter provides 2-way communication between a serial RS232 interface and a CAN FD (ISO 11898) Network.
產品介紹
Description
The RS232 CAN FD converter provides 2-way communication between a serial RS232 interface and a CAN FD (ISO 11898) Network. The new CAN FD (CAN with Flexible Data-rate) connection offers higher data rates up to 4 Mbps and is backward compatible with the standard CAN 2.0.
The CAN232-FD operates in either tunnel mode or command mode depending on the desired functionality.
Tunnel Mode
Tunnel Mode allows a controller on the CAN bus to stream data to/from a serial device. For example, a machine operating on the CAN bus network that also had a serial port for configuration, firmware updates, or data logging, could have the port accessed remotely using an assigned CAN ID. This mode has been enhanced to allow for larger CAN FD packets.
Command Mode
This mode allows CAN messages to be sent and received through the RS232 port and offers the ability to filter messages to specify the CAN identifiers you wish to receive. Messages can also be read in binary or ASCII format.
No additional software is required in Command Mode, use a terminal emulation program of your choosing to send and receive messages through the terminal window or write your own software applications using the COM port of your PC.
Features
FEATURES OF THE CAN232 FD
- Backward Compatibility with prior version (CAN232)
- Simple configuration using a standard terminal or serial port
- Based on an ARM Cortex-M0+ 32-bit microcontroller
- Enter set-up via “Configuration Push Button”
- CAN messages coming from the serial port may be formatted in ASCII or binary
- Integrated help menu for set-up/configuration commands
- 10 CAN filters for standard IDs and extended IDs
CANbus Features
- Compatible with CAN FD, and CAN 2.0A/B standards
- Standard CAN Baud rates up to 1 Mbps
- Supports CAN FD (ISO 11898-2:2015) with data rates up to 4 Mbps
- CIA DS-102 pinout (H=7, L=2, GND=3)
RS232 Features
- Optional - DCE Female (TX=2, RX=3, GND=5) DB9 connector
- Optional - DTE Male (TX=3, RX=2, GND=5) DB9 connector
- Configurable Baud Rates up to 1Mbps
- Parity Odd, Even or None
Specification
| BAUD RATE |
COM RS232 Serial: up to 1 Mbps CAN FD: up to 4 Mbps |
|
|---|---|---|
| CONNECTORS |
COM RS232 Serial: DCE (Female) DB9 or DTE (Male) DB9 CAN FD: Male DB9 |
|
| DATA BITS | 7 or 8 data bits | |
|
INDICATORS (LED) |
RS232: TX & RX activity CANbus: TX & RX activity Power: Power On |
|
| ISOLATION | 3750 Vrms, 1500 VDC | |
| MPN | GC-CAN-RS232-FD | |
| PARITY | Odd, Even or None | |
| PINOUT |
COM RS232 Serial Port: DCE or DTE CAN Network Port: C.I.A. DS-102 (CAN_H =7, CAN_L =2, CAN_GND =3) |
|
|
PROUCT POWER SUPPLY |
9-32 VDC, 120 milliWatts (9VDC wall supply optionally included) | |
| STOP BITS | 1 or 2 | |
|
TEMPERATURE RANGE |
Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF) | |
| TRANSCEIVER | CAN Network Port: ISO 11898-2:2015 CAN Transceiver up to 4 Mbps | |
