PCAN-miniPCI
Part No.: .
MPPK-IPEH-003045(Dual Channel)
MPPK-IPEH-003046(Single Channel opto-decoupled)
MPPK-IPEH-003047(Dual Channel opto-decoupled)

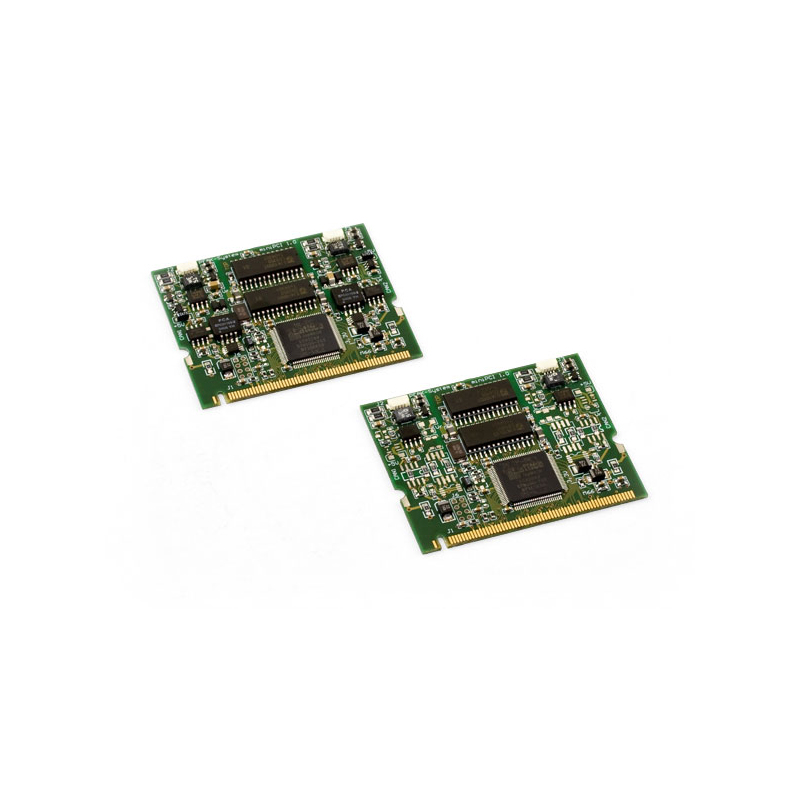

The PCAN-miniPCI card enables the connection of embedded PCs and laptops with Mini PCI slots to CAN networks.
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
Description
The PCAN-miniPCI card enables the connection of embedded PCs and laptops with Mini PCI slots to CAN networks.
The card is available as a single or dual-channel version. The opto-decoupled versions also guarantee galvanic isolation of up to 300 Volts between the PC and the CAN sides.
The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
Specification
- CAN interface for the Mini PCI slot
- 1 or 2 High-speed CAN channels (ISO 11898-2)
- CAN bus connection via connection cable and D-Sub, 9-pin (in accordance with CiA® 303-1)
- Bit rates from 40 kbit/s up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- NXP TJA1040 CAN transceiver
- 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
- Galvanic isolation on the CAN connection up to 300 V, separate for each CAN channel (only for IPEH-003046 and IPEH-003047)
- Operating temperature range from 0 to 70 °C (32 to 158 °F)
|
PIN
|
PIN Assigmnet
|
|---|---|
|
1
|
Not connected / optional +5V
|
|
2
|
CAN-L
|
|
3
|
GND
|
|
4
|
Not connected
|
|
5
|
Not connected
|
|
6
|
GND
|
|
7
|
CAN-H
|
|
8
|
Not connected
|
|
9
|
Not connected
|
Product Includes...
- PCAN-miniPCI card

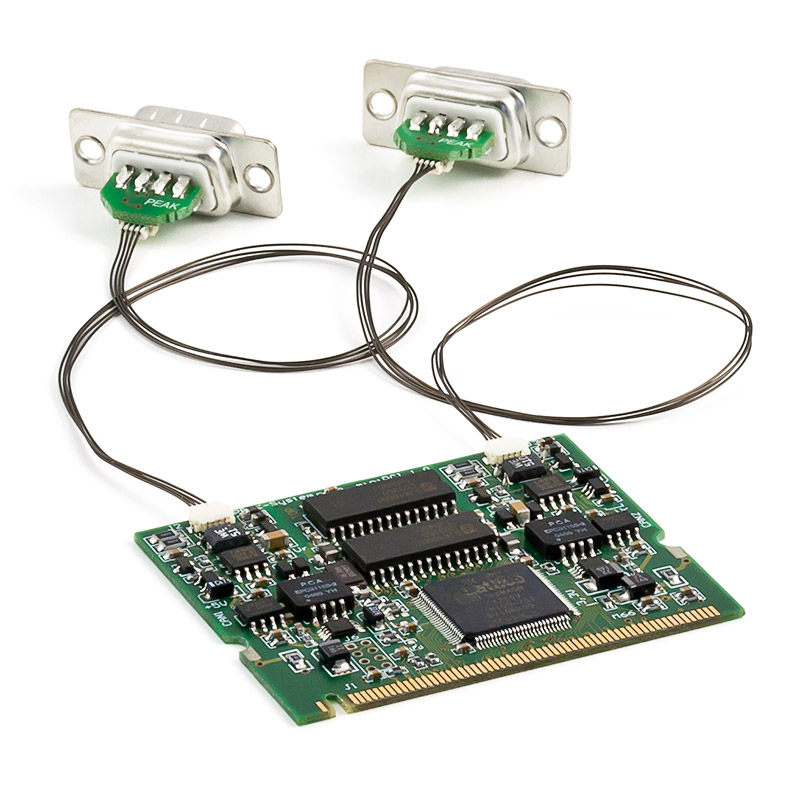

- Connection cable including D-Sub plug for each channel
- Device drivers for Windows® 11 (x64), 10 (x64), and Linux
- CAN monitor PCAN-View for Windows®
- Programming interface PCAN-Basic for developing applications with CAN connection
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
