PCAN-PC/104-Plus
Part No.: MPPK-IPEH-002094 (Single Channel)
MPPK-IPEH-002095 (Dual Channel)
MPPK-IPEH-002096 (Single Channel opto-decoupled)
MPPK-IPEH-002097 (Dual Channel opto-decoupled)

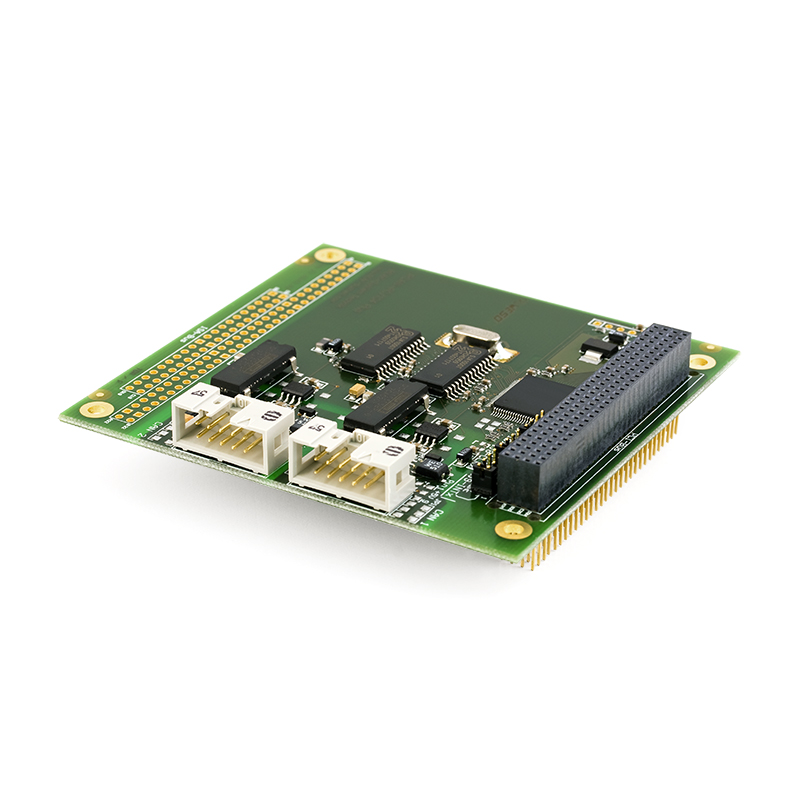

The PCAN-PC/104-Plus card enables the connection of one or two CAN networks to a PC/104-Plus system.
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
Description
The PCAN-PC/104-Plus card enables the connection of one or two CAN networks to a PC/104-Plus system. Up to four cards can be operated, with each piggy-backing off the next. The CAN bus is connected using a 9-pin D-sub plug on the slot bracket supplied.
The card is available as a single or dual-channel version. The opto-decoupled versions also guarantee galvanic isolation of up to 500 Volts between the PC and the CAN sides.
The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
Specification
- Form factor PC/104
- Use of the 120-pin connection for the PCI bus
- Up to four cards can be used in one system
- 1 or 2 High-speed CAN channels (ISO 11898-2)
- Bit rates from 5 kbit/s up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- Connection to CAN bus through D-Sub slot bracket, 9-pin (in accordance with CiA® 303-1)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- NXP PCA82C251 CAN transceiver
- 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
- Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel (only for IPEH-002096 and IPEH-002097)
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
- Optionally available: PC/104-ISA stack-through connector
|
PIN
|
PIN Assigmnet
|
|---|---|
|
1
|
Not connected / optional +5V
|
|
2
|
CAN-L
|
|
3
|
GND
|
|
4
|
Not connected
|
|
5
|
Not connected
|
|
6
|
GND
|
|
7
|
CAN-H
|
|
8
|
Not connected
|
|
9
|
Not connected / optional +5V
|
Product Includes...
- PCAN-PC/104-Plus card
- Slot bracket with D-Sub connectors for the CAN bus
- Device drivers for Windows® 11 (x64), 10 (x64), and Linux
- CAN monitor PCAN-View for Windows®
- Programming interface PCAN-Basic for developing applications with CAN connection
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
