PCAN-PC/104-Plus Quad

Part No.: MPPK-PCAN-PC/104-Plus-Quad

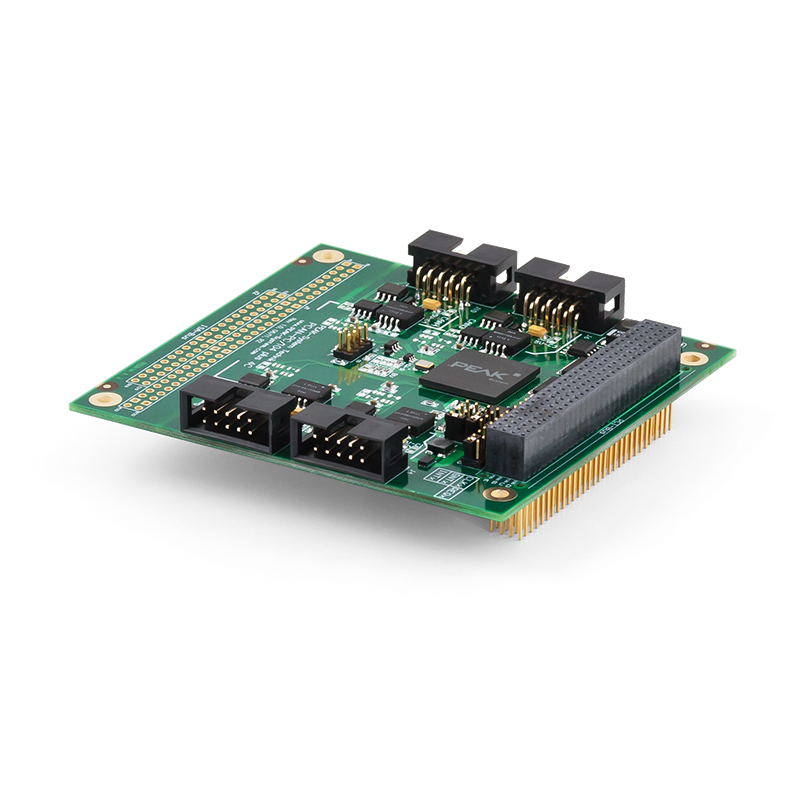

The PCAN-PC/104-Plus Quad card enables the connection of four CAN networks to a PC/104-Plus system.

產品介紹

Four-Channel CAN Interface for PC/104-Plus

The PCAN-PC/104-Plus Quad card enables the connection of four CAN networks to a PC/104-Plus system. Up to four cards can be operated, with each piggy-backing off the next. The CAN bus is connected using a 9-pin D-Sub plug on the slot brackets supplied. There is galvanic isolation of up to 500 Volts between the computer and CAN sides.

The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.


Technical Specifications

Pin Pin Assignment D-Sub
1 Not connected / optional +5V
2 CAN-L
3 GND
4 Not connected
5 Not connected
6 GND
7 CAN-H
8 Not connected
9 Not connected / optional +5V

  • Form factor PC/104
  • Use of the 120-pin connection for the PCI bus
  • Up to four cards can be used in one system
  • 4 High-speed CAN channels (ISO 11898-2)
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-Bit-ID) und 2.0B (29-Bit-ID)
  • Connection to CAN bus through D-Sub slot brackets, 9-pin (in accordance with CiA® 303-1)
  • FPGA implementation of the CAN controller (SJA1000 compatible)
  • NXP PCA82C251 CAN transceiver
  • Galvanic isolation on the CAN connection up to
    500 V, separate for each CAN channel
  • 5-Volt supply to the CAN connection can be connected through a solder jumper,
    e.g. for external bus converter
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
  • Optionally available: PC/104-ISA stack-through connector

Product Includes...

  • PCAN-PC/104-Plus Quad card
  • Two slot brackets with D-Sub connectors for the CAN bus
  • Device drivers for Windows® 10, 8.1, 7 and Linux (32/64-Bit)
  • CAN monitor PCAN-View for Windows®
  • Programming interface PCAN-Basic for developing applications with CAN connection
  • Programming interfaces for standardized protocols from the automotive sector
  • Manual in PDF format
