Description

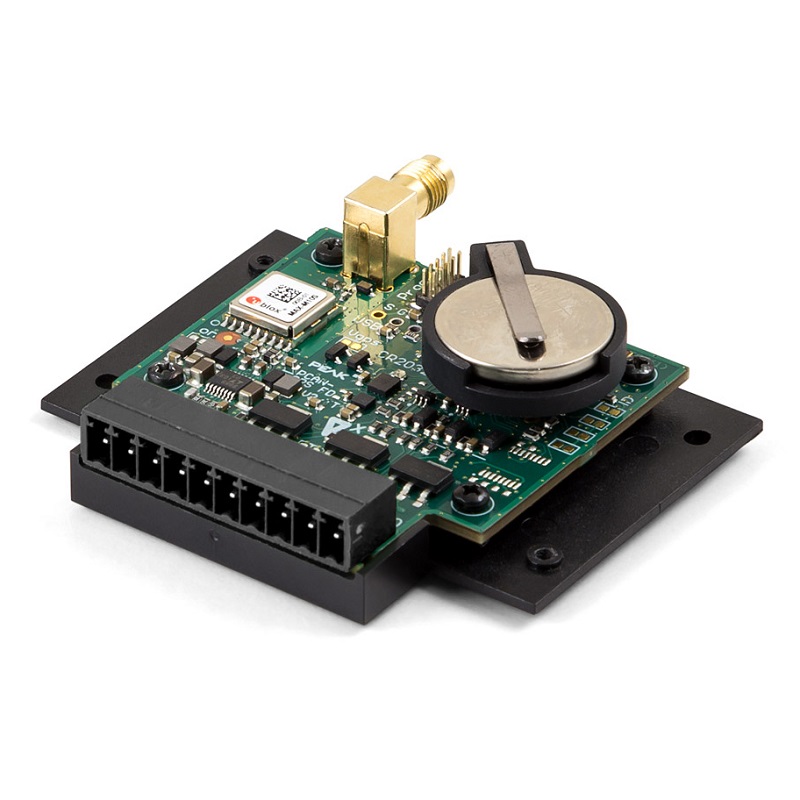

The PCAN-GPS FD is a programmable sensor module for position and orientation determination with CAN FD  connection. It has a satellite receiver, a magnetic field sensor, an accelerometer, and a gyroscope. Incoming sensor data is processed by the NXP microcontroller LPC54618 and then transmitted via CAN or CAN FD.

The behavior of the PCAN-GPS FD can be programmed freely for specific applications. The firmware is created using the included development package with GNU compiler for C and C++ and is then transferred to the module via CAN. Various programming examples facilitate the implementation of own solutions.

On delivery, the PCAN-GPS FD is provided with a standard firmware that transmits the raw data of the sensors periodically on the CAN bus.



Specifications

• NXP LPC54618 microcontroller with Arm® Cortex® M4 core
• High-speed CAN connection (ISO 11898-2)
  • Complies with CAN specifications 2.0 A/B and FD
  • CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 10 Mbit/s
  • CAN bit rates from 40 kbit/s up to 1 Mbit/s
  • NXP TJA1043 CAN transceiver
• CAN termination can be activated through solder jumpers
• Wake-up by CAN bus or by separate input
• Receiver for navigation satellites u-blox MAX-M10S
  • Supported navigation and supplementary systems: GPS, Galileo, BeiDou, GLONASS, SBAS, and QZSS
  • Simultaneous reception of 3 navigation systems
  • 3.3 V supply of active GPS antennas
• Electronic three-axis magnetic field sensor IIS2MDC from ST
• Gyroscope and three-axis accelerometer ISM330DLC from ST
• 8 MByte QSPI flash
• 3 digital I/Os, each usable as input (High-active) or output with Low-side switch
• LEDs for status signaling
• Connection via a 10-pole terminal strip (Phoenix)
• Voltage supply from 8 to 32 V
• Button cell for preserving the RTC and the GPS data to shorten the TTFF (Time To First Fix)
• Extended operating temperature range from -40 to +85 °C (with exception of the button cell)
• New firmware can be loaded via CAN interface

Product Includes...

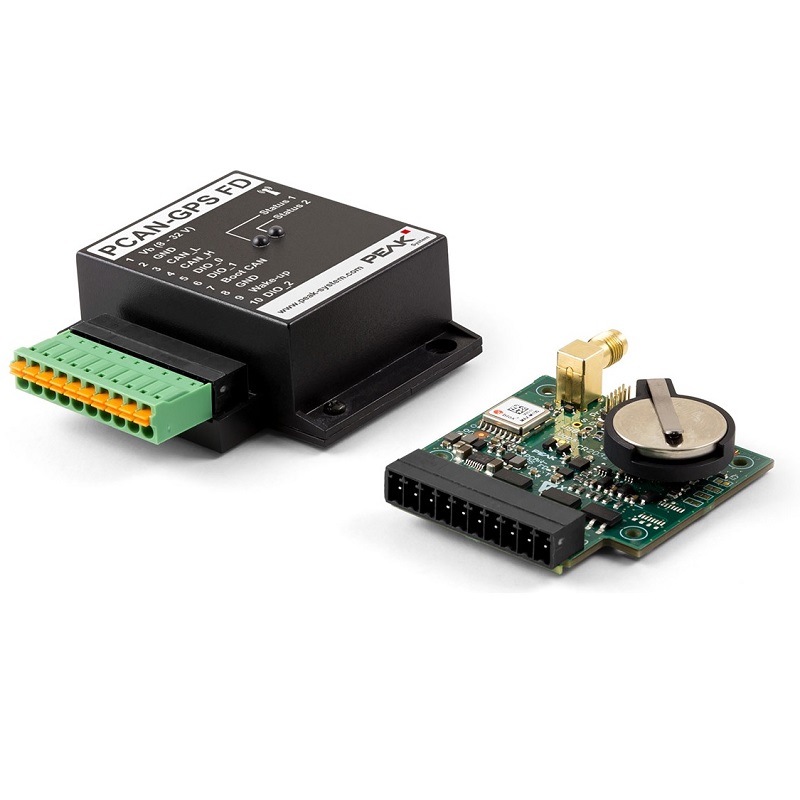

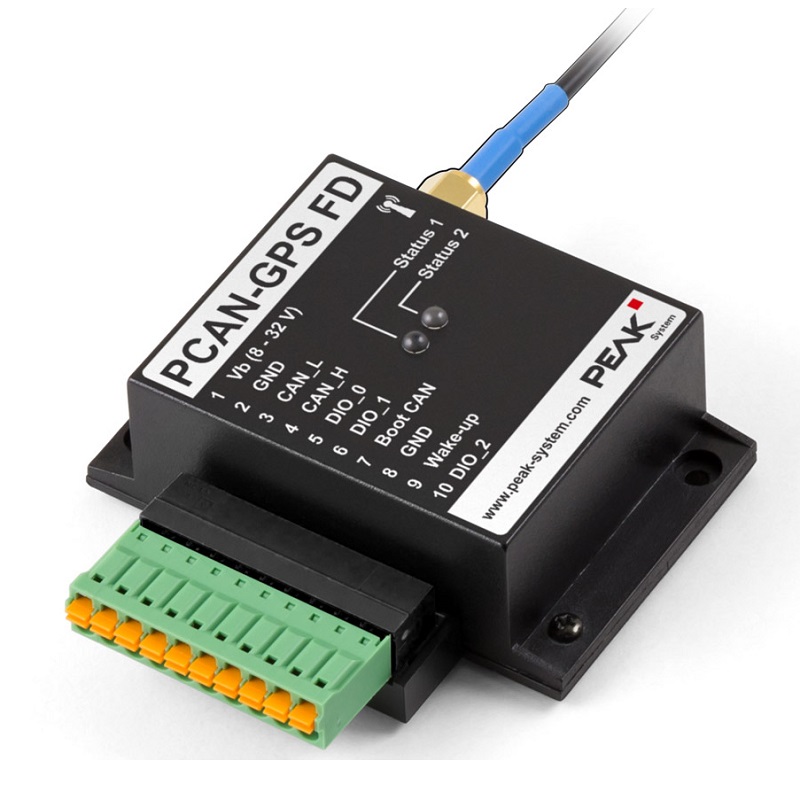

1. PCAN-GPS FD in plastic casing including mating connector (Phoenix Contact FMC 1,5/10-ST-3,5 - 1952348)

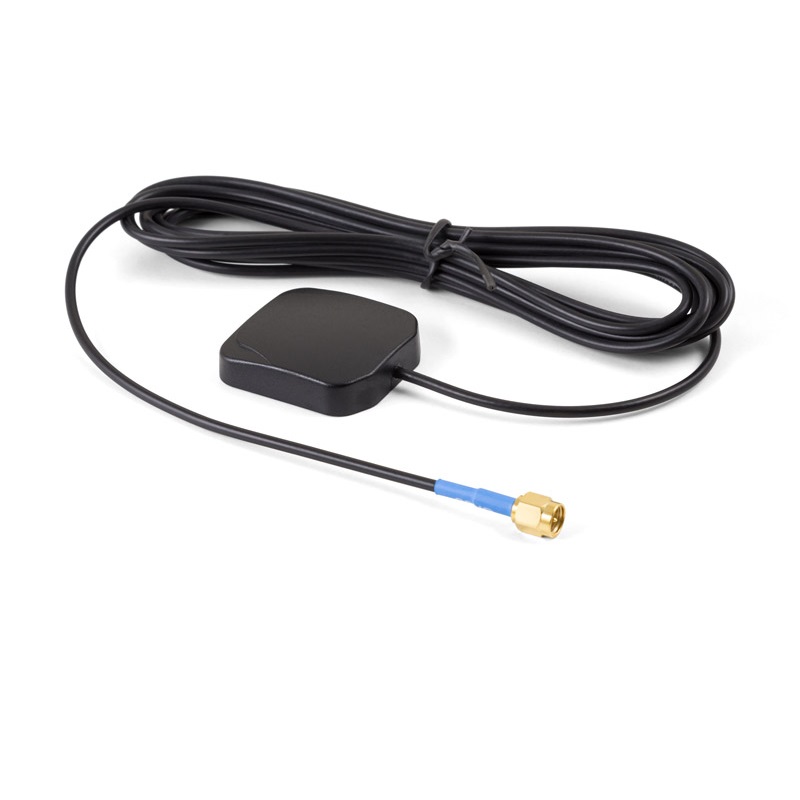

2. External antenna for satellite reception
3. Windows® development package with GCC ARM Embedded, flash program, and programming examples
4. Manual in PDF format
