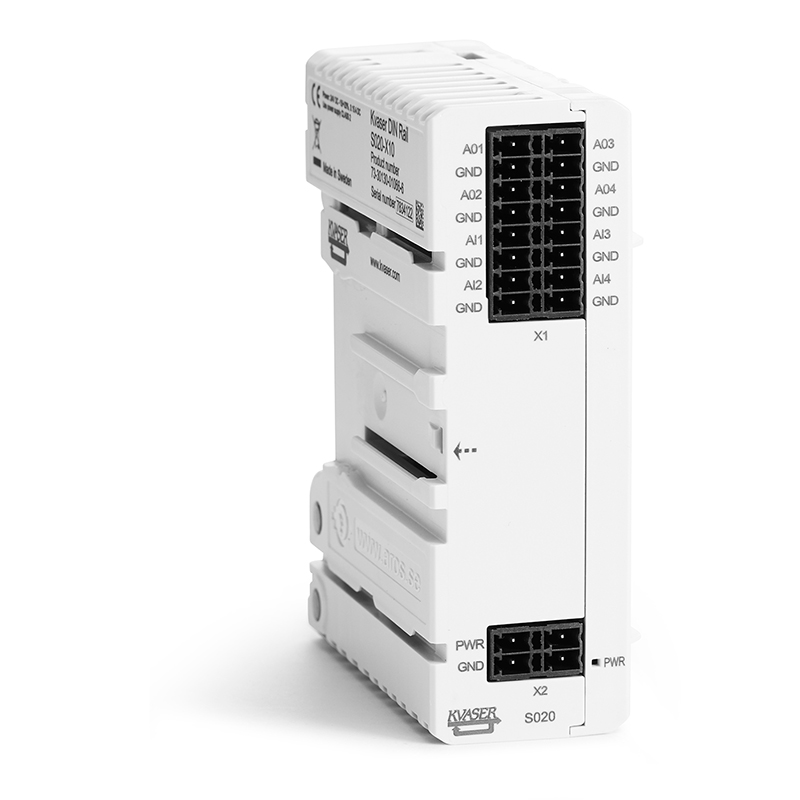

Kvaser DIN Rail S020-X10 Analog add-on

Part No.: MPKS-DIN-Rail-Analog-Add-on
This is an optional add-on module to the Kvaser DIN Rail SE400S-X10 base module.

產品介紹

Kvaser DIN Rail S020-X10 Analog is an optional add-on module to the Kvaser DIN Rail SE400S-X10 base module. With four analog inputs and four outputs, this IP20-rated module is thermal, reverse-polarity protected and surge power supply protected. The input voltage range is fixed (between 0 and 10V), and resolution is 12 bits. A power LED displays the state of the module.


Major Features

  • Supports four analog inputs and four analog outputs, controllable through the Kvaser DIN Rail SE400S-X10.
  • IP20 rated, plus thermal, reverse-polarity and surge protection.
  • Smart clip system for easy mounting on DIN Rail; no tools needed.
  • Requires a power supply from Class 2 / SELV.

*Please note: Add-on modules require a Kvaser DIN Rail SE400S-X10 to be able to work.


Specifications

Error Counters Reading No
Error Frame Generation No
Galvanic Isolation No
Silent Mode No
Weight 95 g
