PCAN-Term
Part No.: MPPK-PCAN-Term
MPPK-PCAN-MiniTerm
They can be used if no CAN node or a CAN node without internal termination is connected at these points.
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
Termination Adapter for CAN and CAN FD
High-speed CAN busses (ISO 11898-2) must be terminated at their ends by resistors.
The adapters PCAN-Term and PCAN-MiniTerm are used if no CAN node or a CAN node without internal termination is connected at these points.
The termination adapters can also be used for CAN FD busses.
Technical Specifications

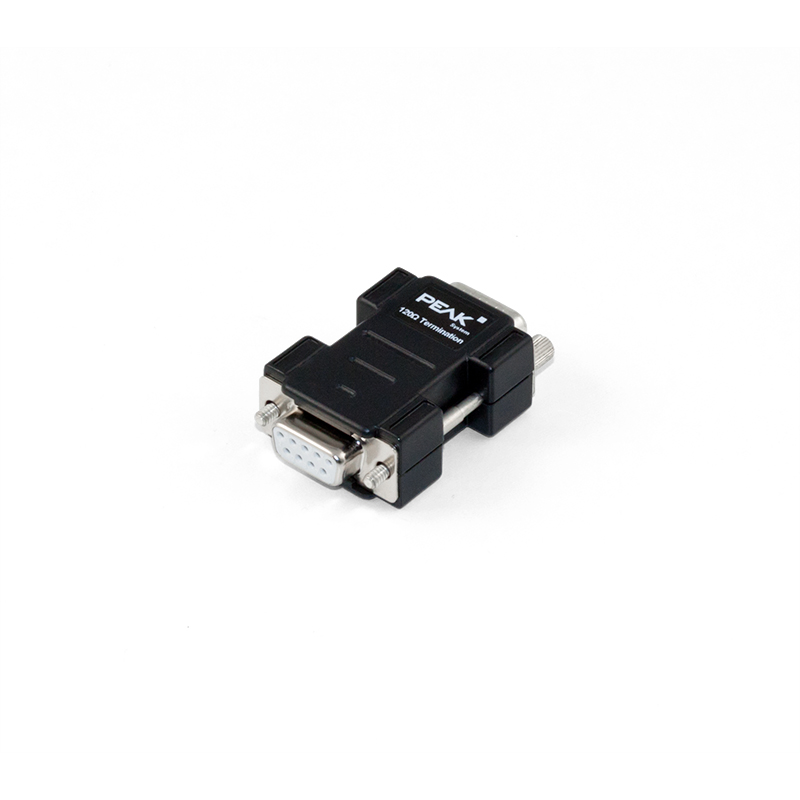

PCAN-Term
- CAN termination adapter in plastic casing
- 9-pin D-Sub socket to 9-pin D-Sub connectorm (in accordance with CiA® 303-1)
- With 120-Ohm termination resistor between CAN_L and CAN_H
- Suitable for the use in CAN FD busses

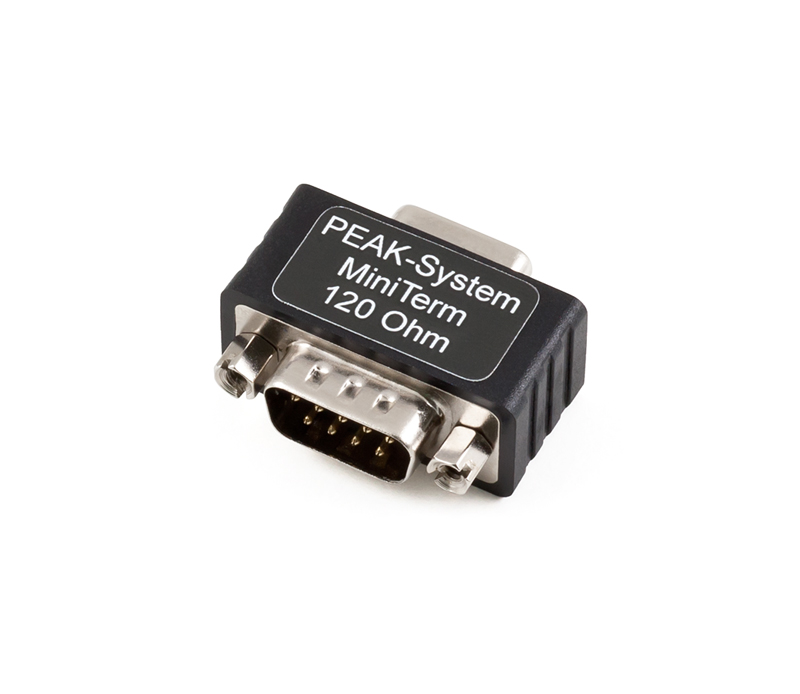

PCAN-MiniTerm
- CAN termination adapter in molded body
- 9-pin D-Sub socket to 9-pin D-Sub connector (in accordance with CiA® 303-1)
- All pins are connected 1 to 1
- With 120-Ohm termination resistor between CAN_L and CAN_H
- Suitable for the use in CAN FD busses
Product Includes...
- PCAN-Term: CAN termination adapter in plastic casing
- PCAN-MiniTerm: CAN termination adapter in molded body
