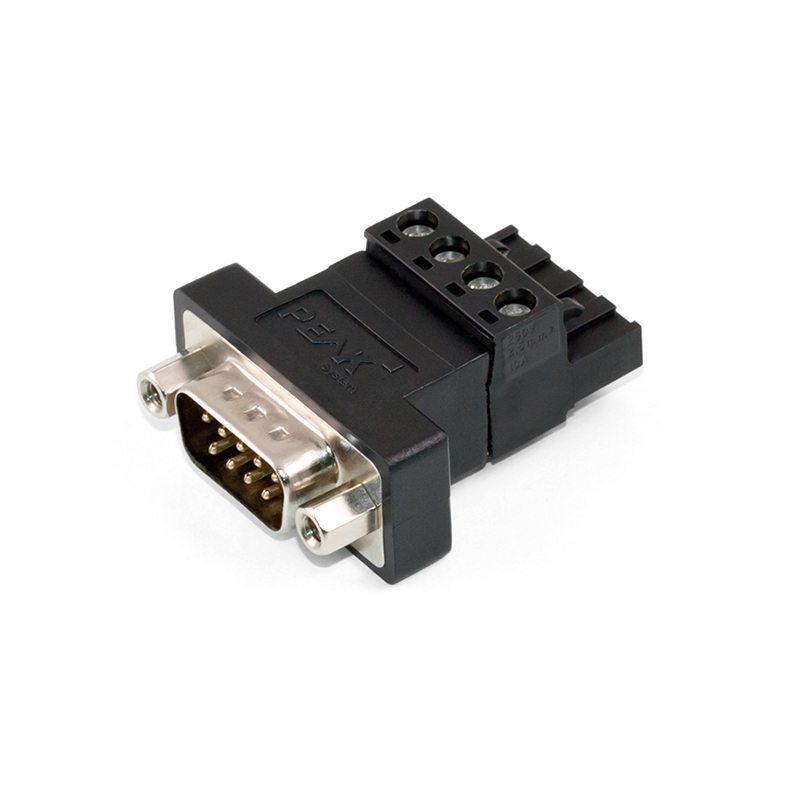

PCAN-Adapter D-Sub for DR products

Part No.: MPPK-PCAN-D-Sub-Connection-Adapter
It provides a 9-pin D-Sub socket for the screw terminal pins.
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。

產品介紹

Description

PEAK-System CAN hardware has a 4-pin screw terminal block as CAN connector for models in the DIN rail housing. The adapter provides a 9-pin D-Sub connector for the screw terminal pins. Thus, it is possible to use our standard CAN cables with these devices in DIN rail housing and connect them to our PC CAN interfaces.

The adapter can also be used for CAN FD buses.

Technical Specifications

  • 4-pin screw terminal block (Phoenix) to 9-pin D-Sub socket (according to CiA® 303-1)
  • Suitable for CAN connection adaptation of the products:
    • PCAN-Repeater DR
    • PCAN-Router DR
    • PCAN-Ethernet Gateway DR
    • PCAN-Wireless Gateway DR
  • No termination
  • Suitable for the use in CAN FD busses

Product Includes...

  • PCAN-D-Sub Connection Adapter
