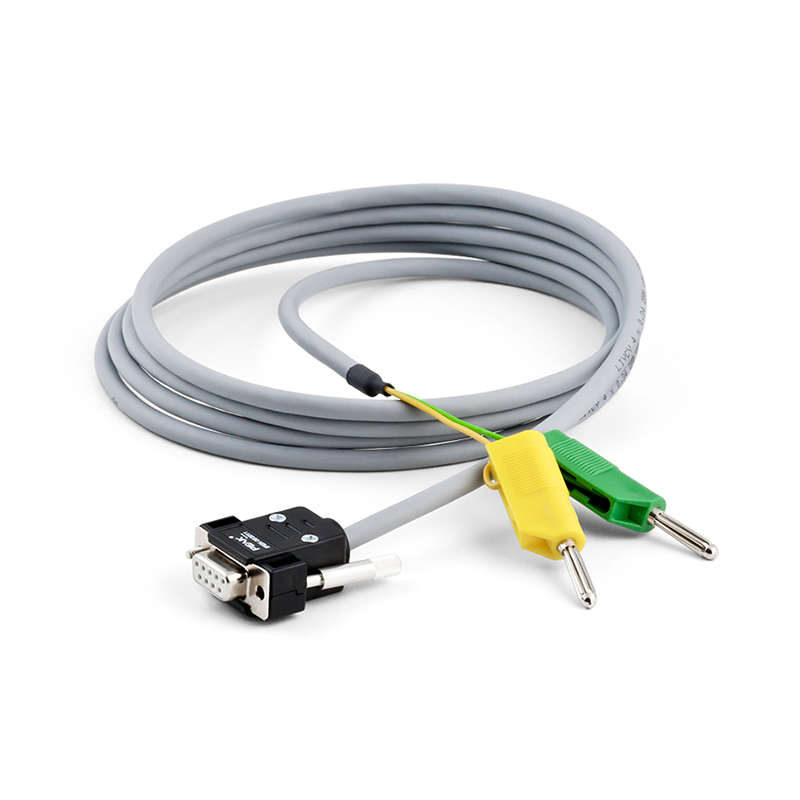

PCAN-Cable 3
Part No.: MPPK-IPEK-003011
It can also be used for CAN FD buses.
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
!!! Low stock! Large quantities expected to be available in approximately one week. !!!
Description
With this cable the two components CAN-High and CAN-Low of the differential CAN signal can be picked up from a CAN bus or directly from a CAN interface. An easy connection to test and measurement setups is accomplished by the banana plugs.
The PCAN-Cable 3 can also be used for CAN FD buses.
Specifications
- 9-pin D-Sub socket (in accordance with CiA® 106) to banana plugs (4 mm) for picking up the signals CAN-High and CAN-Low
- Without termination resistors
- Length 2.0 m
- Suitable for the use in CAN FD buses
Product Includes...
- PCAN-Cable 3
1. Prices and Specifications are subject to change without notice
2. Other lengths and special cable makeup on request.
