LIN Connection Cable for PC LIN Interfaces

Part No.: MPPK-IPEK-003013
The PLIN-USB adapter is connected to the LIN bus via D-Sub.

*標高電子為德商PEAK SYSTEMS台灣唯一代理商。

產品介紹

Description

The PLIN-USB adapter is connected to the LIN bus via D-Sub. On the adapters PCAN-USB Pro FD and PCAN-USB Pro, the two field buses CAN and LIN are connected together via a D-Sub plug. However, a separate access to the LIN components is necessary.

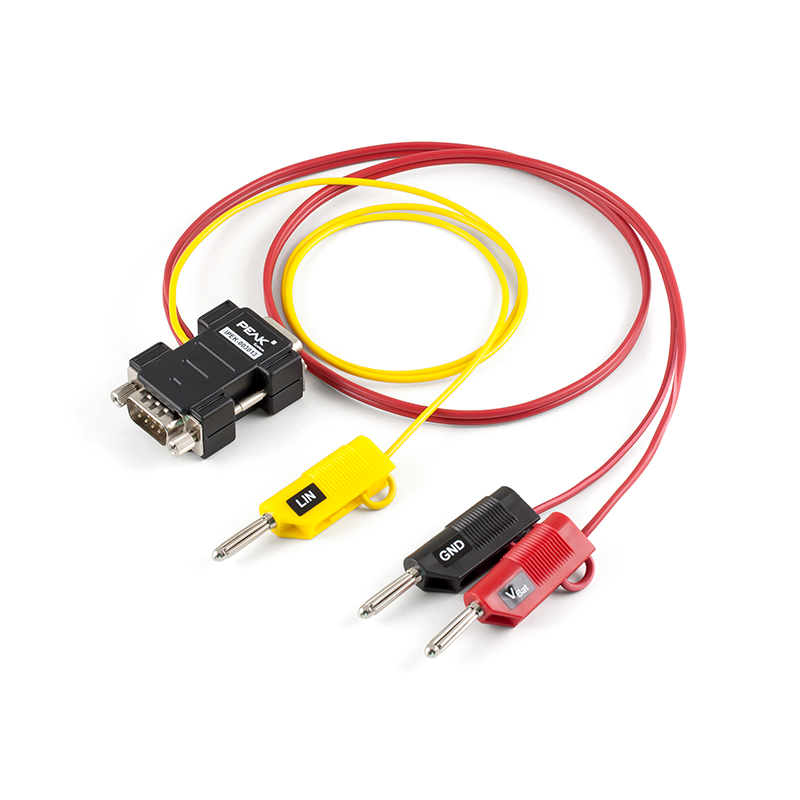

The LIN Connection Cable for PC LIN Interfaces allows the tapping of individual lines. The LIN and the supply lines are lead directly out to separate plugs and the CAN lines are forwarded to a D-Sub plug.

The connection cable can be used without problems for CAN FD buses.






Specifications

  • Pre-configured cable set for PCAN-USB Pro FD, PCAN-USB Pro, and PLIN-USB

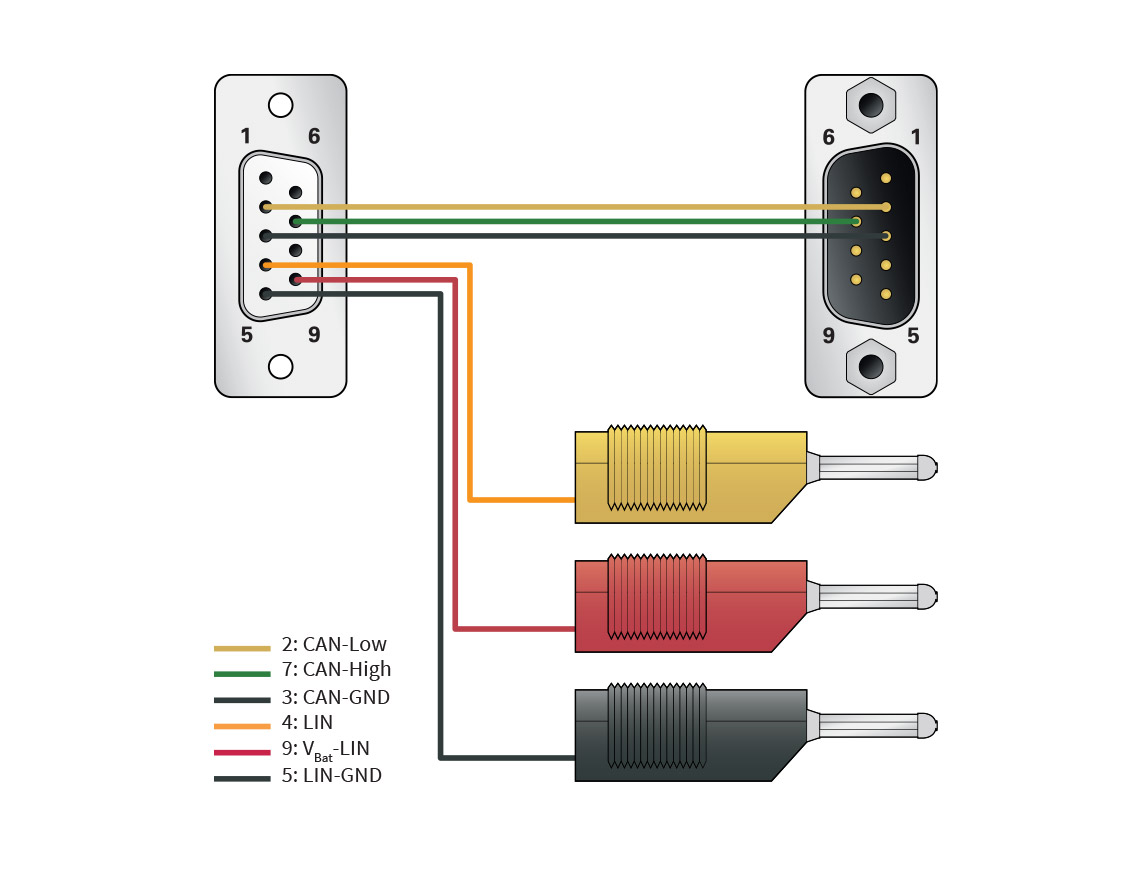

  • Split-up of the lines from the CAN/LIN connector to:
    • CAN (D-Sub plug, 9-pin)
    • LIN (banana plug, 4 mm)
    • Power supply for LIN (banana plugs, 4 mm)
  • Length about 0.75 m
  • Without terminating resistor
  • Suitable for the use in CAN FD buses

Product Includes...

  1. LIN Connection Cable for PC LIN Interfaces.
Note:
1.  Prices and Specifications are subject to change without notice
2. The LIN Connection Cable for PC LIN Interfaces is not suitable for use with the PCAN-LIN module.
3. Other lengths and special cable makeup on request.
