Description

The motherboards for the PCAN-MicroMod provide an application-oriented environment. Typical characteristics of this product group include a wide supply voltage range and the protective circuits for the inputs and outputs. CANopen® firmware is available for all PCAN-MicroMod motherboards.

The Analog 1 & 2 motherboards serve general analog requirements.


Specifications

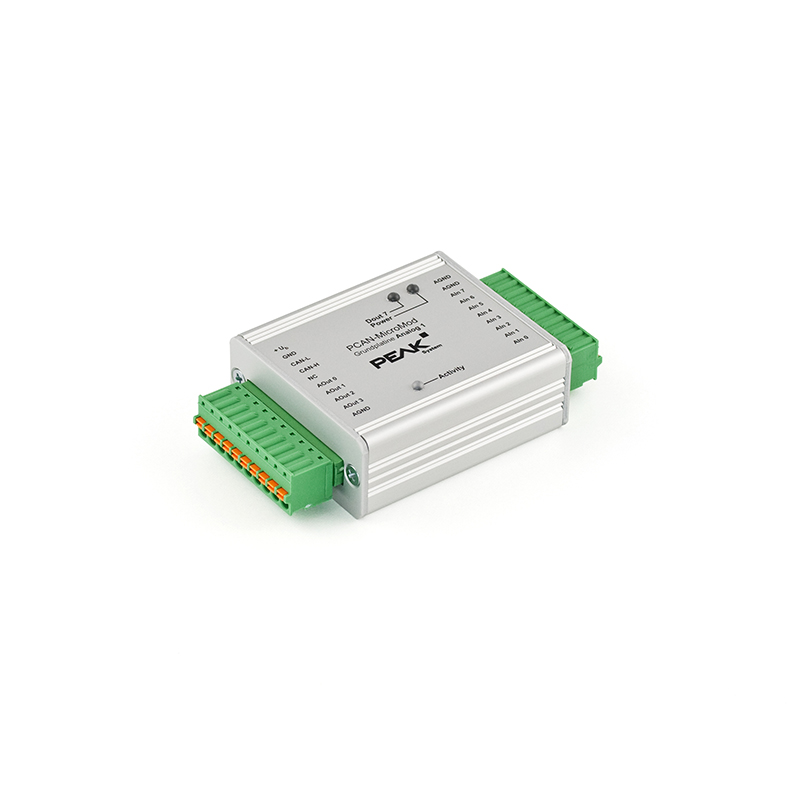

Technical specifications Analog 1

• High-speed CAN connection (ISO 11898-2)
  • Bit rates from 10 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• Completely configurable using the Windows® software PCAN-MicroMod Configuration
• Operating voltage 11 to 26 V
• Status LEDs for power supply and digital output
• Aluminum casing with spring terminal connectors. Optional DIN rail fixing available
• Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
• 8 analog inputs:
  • Measuring range unipolar 0 to 5 V
  • Resolution 10 bit, sample rate 1 kHz
  • Measuring range extension optional
  • Pull-down circuit
  • Protection against under- and overvoltages
  • Parallel connection of a digital input each for alternative use (e.g. push buttons)
• 4 analog outputs:
  • Voltage range 0 to 10 V (based on 8-bit PWM)
  • Output current 15 mA per channel
  • Short-circuit protection

Technical specifications Analog 2

• High-speed CAN connection (ISO 11898-2)
  • Bit rates from 10 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• Completely configurable using the Windows® software PCAN-MicroMod Configuration
• Operating voltage 11 to 30 V
• Status LEDs for power supply and digital output
• Aluminum casing with spring terminal connectors. Optional DIN rail fixing available
• Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
• 8 analog inputs:
  • Measuring range bipolar -10 to +10 V
  • Resolution 16 bit
  • Sample rate depends on the number of used channels (2 kHz/n)
  • Low-pass behavior
  • Protection against under- and overvoltages
• 4 analog outputs:
  • Voltage range 0 to 10 V (based on 12-bit DAC)
  • Output current 20 mA per channel
  • Short-circuit protection

Product Includes...

1. PCAN-MicroMod
2. PCAN-MicroMod motherboard in casing including mating connectors (Phoenix Contact FK-MCP 1,5/10-ST-3,81 - 1851122)
3. PCAN-MicroMod Configuration software for Windows®
4. Manual in PDF format
