4-Channel CAN Router with Data Logger

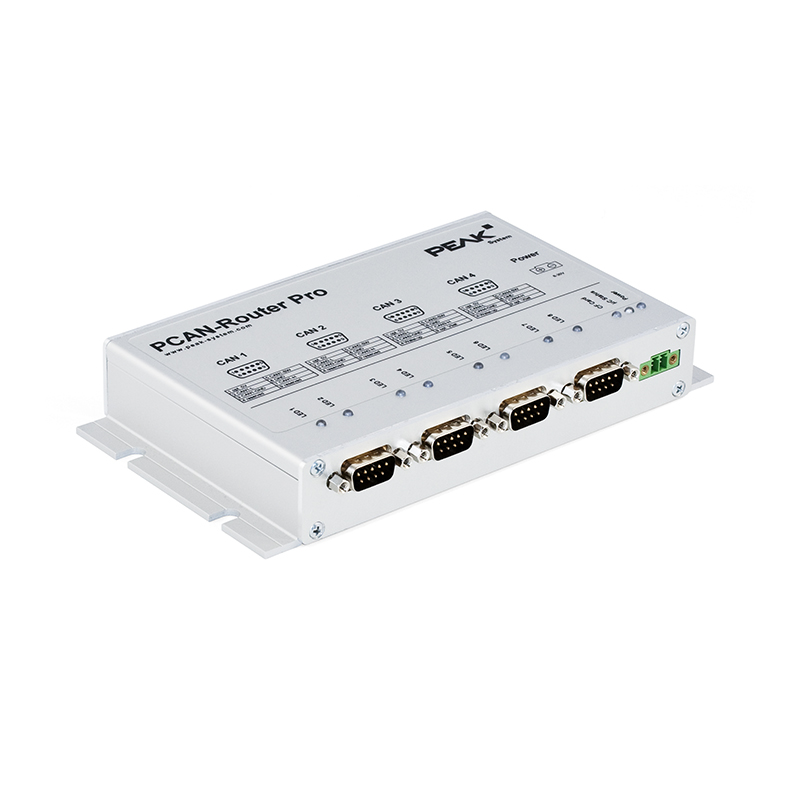

The PCAN-Router Pro allows to join the data traffic from four High-speed CAN busses. The behavior of the router is configured via the CAN bus with the provided Windows program PPCAN-Editor. As well as pure forwarding, the CAN data can be processed, manipulated, and for example, filtered in a number of different ways. There are a variety of function blocks and other settings available to the user for configuration setup. Furthermore, there is a virtual fifth CAN channel which is used for recording all data traffic to a CompactFlash card.

As an alternative to the standard firmware which the PCAN-Router Pro is equipped with at delivery, custom firmware based on the ARM microcontroller NXP LPC2294 can be created and implemented. The scope of supply includes a library and the Yagarto GNU ARM toolchain (contains the GNU Compiler Collection GCC for C and C++).

CAN transceiver modules in the PCAN-Router Pro allow a flexible adaptation of each CAN channel to the requirements. For example, Low-speed and Single-wire CAN transceivers are also available on request.

Requirements

• The configuration or the transfer of the firmware via CAN requires a PEAK CAN interface.

Note about the programmability

Since March 2013, a toolchain and a library are available for programming custom firmware for the PCAN-Router Pro. Please note that due to various hardware extensions only devices with a serial number from 100 can be equipped with custom firmware.

Technical Specifications

• 4 High-speed CAN channels via plugable transceiver modules. Alternatively, Low-speed, Single-wire, and opto-decoupled High-speed modules, as well as High-speed modules without wake-up function available
• Wake-up function using separate input or CAN bus
• Complies with CAN specifications 2.0 A/B
• CAN connections are D-Sub, 9-pin
• CAN termination switchable, separately for each CAN channel
• CompactFlash card slot
• Battery-buffered real-time clock (RTC), can also be used for wake-up
• Beeper
• Status LEDs for CAN channels, CompactFlash card, microcontroller, and power supply
• NXP microcontroller LPC2294
• Aluminum casing with flange. DIN rail fixing option available on request
• 8 - 27 V power supply, protection against overvoltage and reverse polarity
• Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)

Properties of the standard firmware

• Detailed configuration with the software PPCAN-Editor 2 for Windows^®
• Various function blocks for data processing and manipulation
• Configurable beeper
• Configurable CAN channel status LEDs
• Recording of CAN data and error frames to a CompactFlash card
• Conversion of logging data to various output formats using Windows^® software

Product Includes...

• PCAN-Router Pro in aluminum casing including mating connector for power supply
• Configuration software PPCAN-Editor 2 for Windows^®
• Conversion software PEAK-Converter for Windows^® 10, 8.1, 7 (32/64-bit)
• Industrial CompactFlash card (min. 1 GB)
• Windows^® development software (Yagarto GNU ARM toolchain, flash program)
• Library with programming examples
• Manual in PDF format

Requirements

• The configuration or the transfer of the firmware via CAN requires a PEAK CAN interface
