PCAN-LIN
Part No.: MPPK-PCAN-LIN-HS-CAN
MPPK-PCAN-LIN-LS-CAN
MPPK-PCAN-LIN-HS-CAN-ISO
The PCAN-LIN module enables CAN, LIN, and serial participants to communicate.
*標高電子為德商PEAK SYSTEMS台灣唯一代理商。
產品介紹
Interface for LIN, CAN, and RS-232

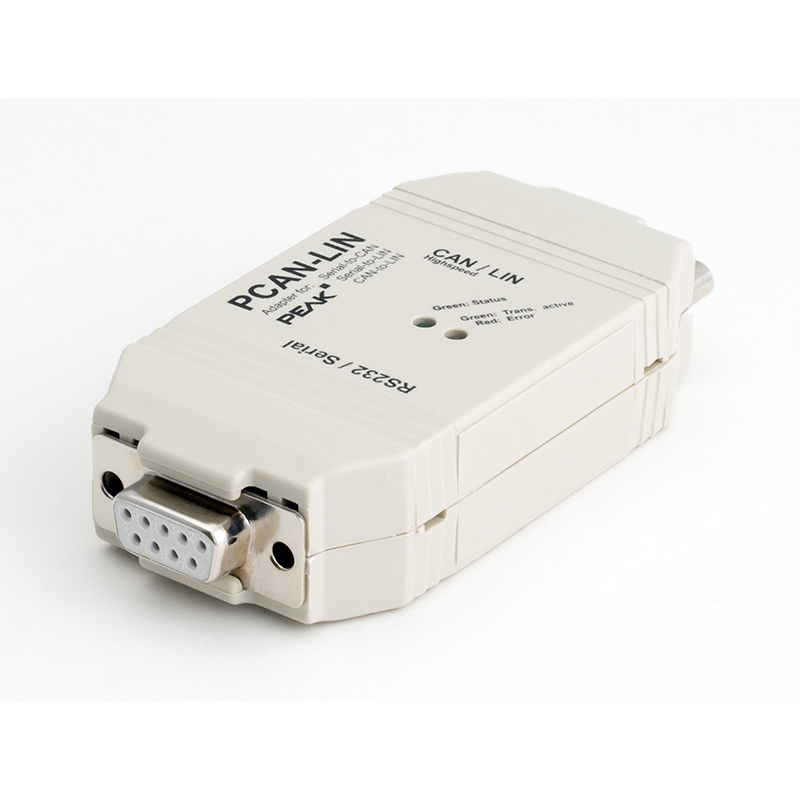

The PCAN-LIN module enables CAN, LIN, and serial participants to communicate. The module is supplied in a plastic casing and includes firmware which enables data to be exchanged between the different bus systems. Various modes can be set up with the aid of configuration software. Then for instance the module acting as the LIN master can request data and route the incoming LIN data to the CAN bus and/or the serial interface. Data can be routed between CAN and LIN with an ID offset.
Technical Specifications
| Pin |

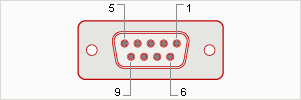

Pin Assignment Female D-Sub Pin assignment RS-232 |
|---|---|
| 1 | Not connected |
| 2 | TxD (RS-232-level) |
| 3 | RxD (RS-232-level) |
| 4 | Not connected |
| 5 | GND |
| 6 | Not connected |
| 7 | Not connected |
| 8 | Not connected |
| 9 | Not connected |
| Pin |

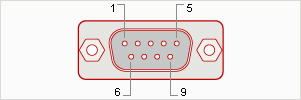

Pin Assignment Male D-Sub Pin assignment CAN/LIN |
|---|---|
| 1 | VBat 9 - 30V (Imax ~ 130mA) |
| 2 | CAN-L |
| 3 | GND |
| 4 | LIN data |
| 5 | Not connected |
| 6 | GND |
| 7 | CAN-H |
| 8 | Not connected |
| 9 | Not connected |
-
General-purpose gateway (or router when using Acceptance Code / Acceptance Mask feature) from:
- RS-232 to LIN (and back)
- CAN to LIN (and back)
- RS-232 to CAN (limited bandwidth)
- CAN bit rates up to 1 Mbit/s
- Complies with CAN specifications 2.0 A/B
- LIN bit rates of 1 – 20 kbit/s
- Transmitting/receiving LIN 1.x and 2.x frames
- Available for use as LIN master or slave
- Simulation of LIN slaves. Data can be changed via CAN frames
- Processing a user-definable LIN ID list (scheduler with limited number of entries)
- Individual LIN frames can be initiated via CAN or RS-232
- Voltage supply from 9 to 30 V
-
Extended operating temperature range
from -40 to 85 °C (-40 to 185 °F)
Optionally available
- High-speed (ISO 11898-2) or Low-speed (ISO 11898-3) CAN transceiver module
- Galvanic isolation between RS-232 and CAN/LIN up to 1 kV (only for High-speed CAN)
Product Includes...
- PCAN-LIN in plastic casing
- Configuration and monitoring tool PCAN-LIN Config for Windows® 10, 8.1, 7 (32/64-bit)
- Manual in PDF format
