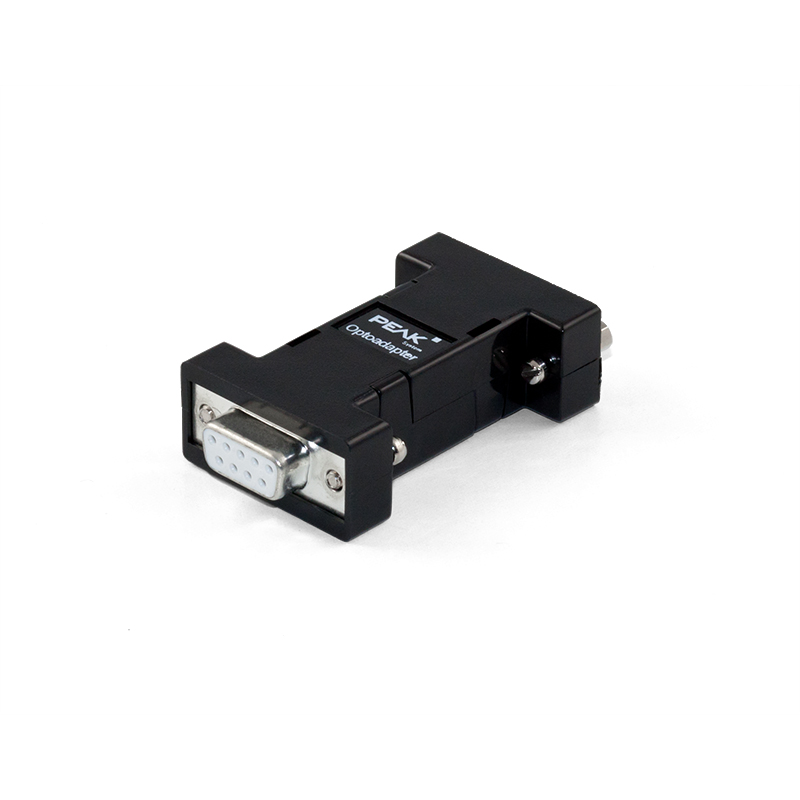

PCAN-Optoadapter

Part No.: MPPK-PCAN-Optoadapter
The PCAN-Optoadapter is a universal plug-on adapter to allow galvanic isolation of High-speed CAN bus systems.

產品介紹

Plug-in Adapter for Decoupling CAN Networks

The PCAN-Optoadapter is a universal plug-on adapter to allow galvanic isolation of High-speed CAN bus systems. Its integrated logic means that decoupling can be installed at any point in the CAN network. The PCAN-Optoadapter can be used in CAN FD busses with data bit rates up to 2 Mbit/s and nominal bit rates up to 1 Mbit/s.


Technical Specifications


Pin Pin Assignment Female D-Sub
1 5V Power supply
2 CAN-L
3 GND
4 Not connected
5 Not connected
6 GND
7 CAN-H
8 Not connected
9 Not connected

Pin Pin Assignment Male D-Sub
1 Not connected
2 CAN-L
3 GND
4 Not connected
5 Not connected
6 GND
7 CAN-H
8 Not connected
9 Not connected

  • Plug-on adapter for decoupling a CAN bus for PEAK CAN interfaces
  • Galvanic isolation by DC/DC converters up to 500 V
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • High-speed CAN transceiver NXP PCA82C251
  • Suitable for the use in CAN FD busses with data bit rates up to 2 Mbit/s and nominal bit rates up to 1 Mbit/s
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 303-1)
  • LED for status indication of the supply voltage
  • 120-Ohm bus termination at the female D-Sub connector
  • 5-Volt power supply through pin 1 of the High-speed CAN connection. Nearly all CAN interfaces by PEAK-System can provide the required supply
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)

Product Includes...

  • Adapter in plastic casing
  • Manual in PDF format
