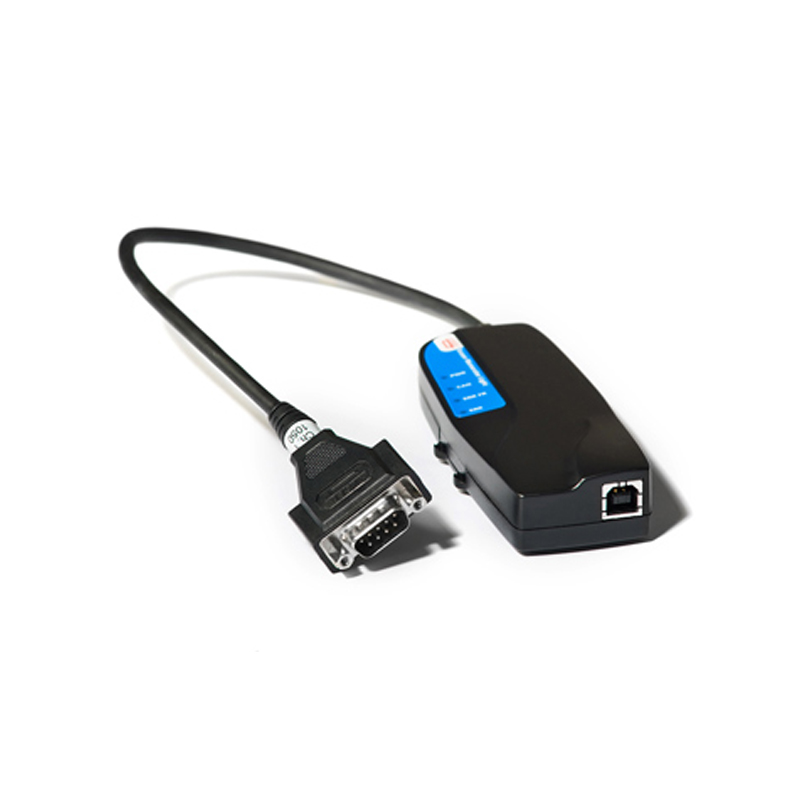

Kvaser Memorator Light HS

Part No.: MPKV-Memorator-Light-HS

Designed for troubleshooting any CAN-based (controller area network) system, the Kvaser Memorator Light HS.

產品介紹

Designed for troubleshooting any CAN-based (controller area network) system, the Kvaser Memorator Light HS is an easy-to-use tool for logging serial data, with no preconfiguration or software setup required. With an autobaud function that determines CAN bus bit rate, the Kvaser Memorator Light can be attached to any high-speed CAN bus without configuration. All CAN bus traffic is logged in a circular buffer, overwriting the oldest data when the buffer becomes full. A separate circular buffer keeps track of error frame conditions and the message traffic that occurs near the conditions.



Major Features

  • Single high-speed CAN channel (compliant with ISO 11898-2).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
  • Auto detects bit rate - removes the need for configuration.
  • Always in silent mode - log bus traffic without interfering.
  • 1 GByte of internal memory for message storage.
  • All received CAN frames recorded in a circular buffer - oldest data overwritten by newest.
  • A second circular buffer records 1000 messages before and after an error frame occurs.
  • The Kvaser Memorator Light extraction software provides easy access to the recorded data when connected to the device via a USB port. The tool supports multiple formats used by popular analysis software. In addition, the extraction software allows the user to clear and reinitialize the device's memory

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Specifications

Bitrate 10-1000 kbps
Categories Dataloggers, PC Interfaces
Certificates CE, RoHS
Channels 1
Connectors DSUB 9
Current Consumption "~5 V and 130mA if powered from the USB and ~850mW if powered from the CAN bus."
Error Counters Reading No
Error Counters Generation No
Galvanic Isolation No
Height 22 mm
Interfaces USB
Internal Memory 1
Length 115 mm
Material PC-ABS
Messages Per Second Receive 6000 mps
OS Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Silent Mode Yes
Sound No
Temperature Range -40 - 85 °C
Timestamp R (µ) 2 µs
Weight 150 g
