Kvaser DB9-Power Inlet

Part No.: MPKV-DB9-Power-Inlet
It also has one unpowered male D-SUB9 connector for connecting to the CAN network.

產品介紹

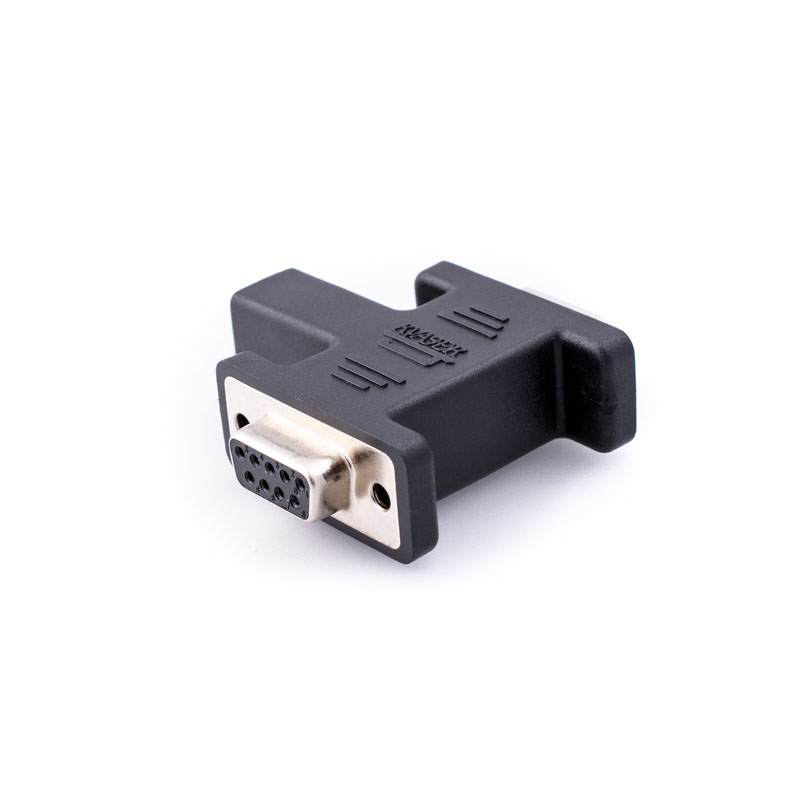

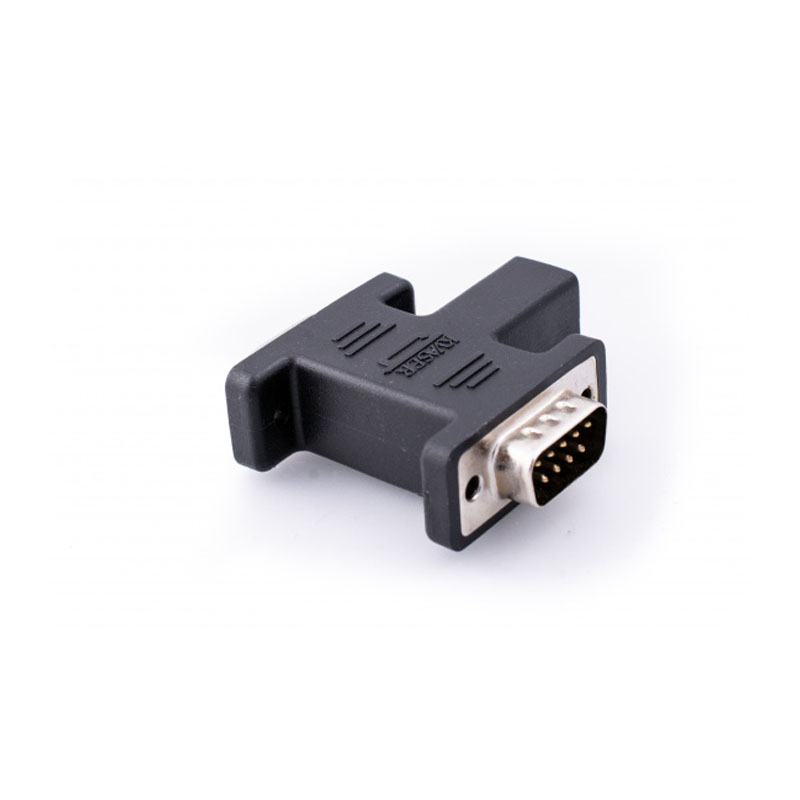

Kvaser DB9-Power Inlet is a power injector for CAN busses from a DC power jack into one female D-SUB9 connector. The Kvaser DB9-Power Inlet also has one unpowered male D-SUB9 connector for connecting to the CAN network. The Kvaser DB9-Power Inlet provides a simple and safe way to supply Kvaser interfaces on a development board, as well as powering interface devices without internal power, such as Kvaser’s Blackbird and Memorator series.



Major Features

  • Acts as a power injector with one female and one non-connected male D-SUB9 connector
  • Connects to power supply using a standard 2.0 mm DC power connector.
  • A complementary 12 V, 1 A power supply is included

Specifications

Categories PC Interfaces
Error Counters Reading No
Error Counters Generation No
Galvanic Isolation No
Silent Mode No
Sound No
Temperature Range -30 - 80 °C
Weight 100 g
