PCAN-ExpressCard

Part No.: MPPK-IPEH-003000 (Single Channel)
MPPK-IPEH-003002 (Single Channel galv. isolated)

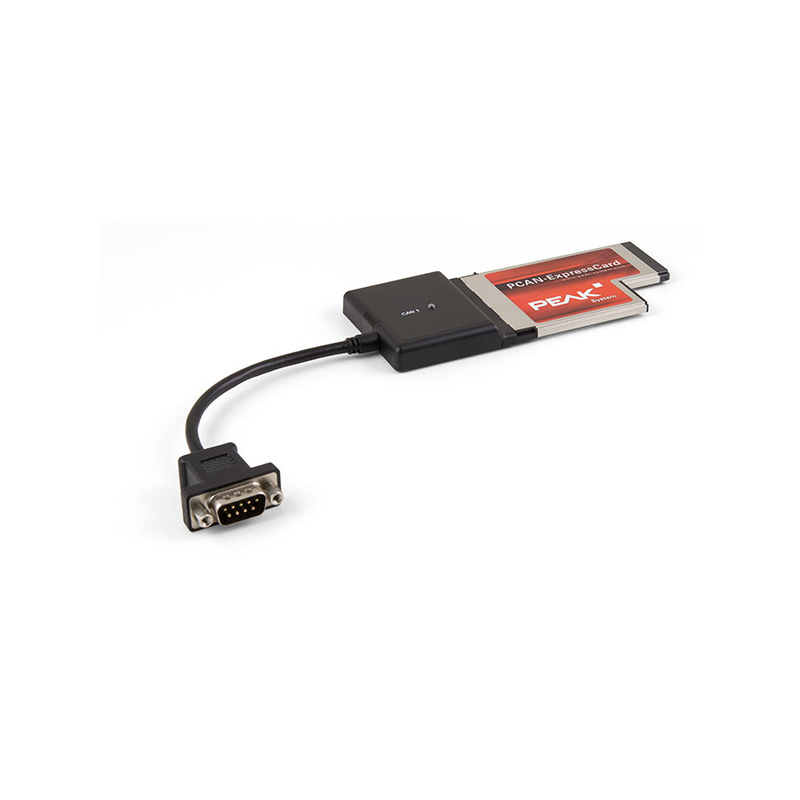

The PCAN-ExpressCard provides a connection between a CAN bus and a laptop or desktop PC with an ExpressCard slot.

*標高電子為德商PEAK SYSTEMS台灣唯一代理商。

產品介紹

Description

The PCAN-ExpressCard provides a connection between a CAN bus and a laptop or desktop PC with an ExpressCard slot.

The card is available in single and dual-channel versions. There are also galvanically separated versions which guarantee galvanic separation up to a maximum of 300 Volts between the PC and CAN sides.

The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.


Specification

  • Card for the ExpressCard slot
  • Form factor ExpressCard/54
  • 1 or 2 High-speed CAN channels (ISO 11898-2)
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 303-1)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • NXP PCA82C251 CAN transceiver
  • Software option to switch a 5-Volt supply to the CAN connection, e.g. for external bus converter
  • Galvanic isolation on the CAN connection up to 300 V, separate for each CAN channel (only for IPEH-003002 and IPEH-003003)
  • Operating temperature range from 0 to 70 °C (32 to 158 °F)


PIN
PIN Assigmnet
1
Not connected / optional +5V
2
CAN-L
3
GND
4
Not connected
5
Not connected
6
GND
7
CAN-H
8
Not connected
9
Not connected



Product Includes...

  • PCAN-ExpressCard CAN interface
  • Device drivers for Windows® 11 (x64), 10 (x64), and Linux
  • CAN monitor PCAN-View for Windows®
  • Programming interface PCAN-Basic for developing applications with CAN connection
  • Programming interfaces for standardized protocols from the automotive sector
  • Manual in PDF format

Note: The products PCAN-ExpressCard Dual (IPEH-003001) and PCAN-ExpressCard Dual Channel galv. isolated (IPEH-003003) are no longer manufactured!
