SYNC 2100 series - Intelligent RTU

Part No.: MPKK-SYNC-2100-series-Intelligent-RTU
Mini RTUs for feeder monitoring (FRTU) as well as monitoring of RMUs, Auto-reclosers, sectionalizers, capacitor banks and other distribution automation equipment

產品介紹

SYNC 2100 series – Intelligent RTU

SYNC 2100 series are compact RTUs with high performance attributes combining IO support, advanced PLC function support and wide range of protocols. With its modular design enhanced security and EMI/EMI as well as environmental ruggedness, SYNC 2100 is suited for a wide range of applications like distribution asset monitoring (RMUs, reclosers, sectionalizers, Distribution transformers, etc.), substation asset monitoring and wind / solar remote monitoring.


Overview

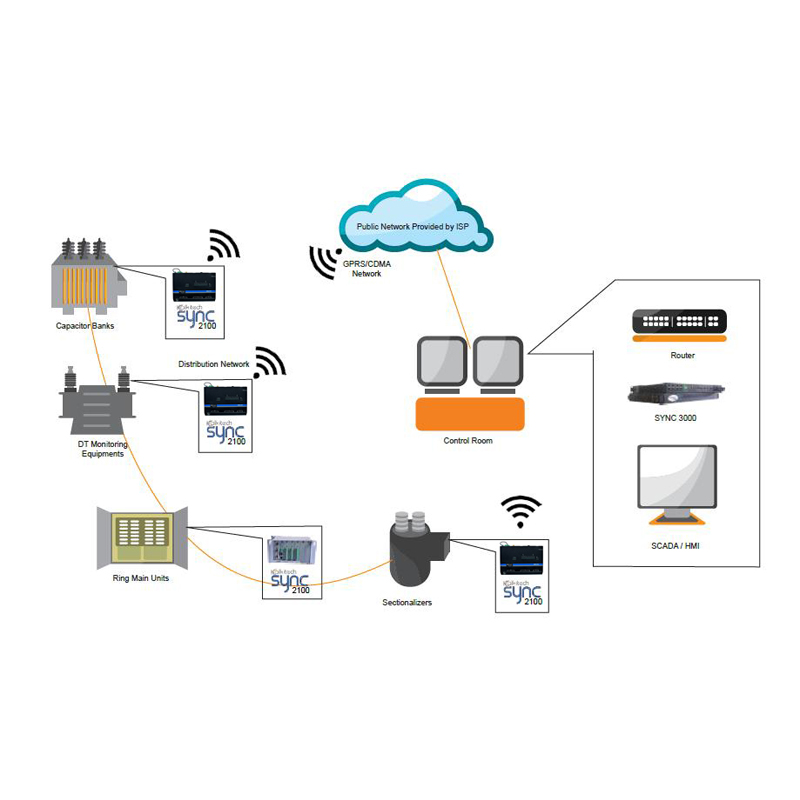

SYNC 2100 series of Intelligent Remote Terminal Units (RTUs) are ideal for various T&D I/O monitoring, Distribution Automation and Substation Monitoring applications. The stand-out features of these products include:

  • Modularity: They are modular and can be customized for exact I/O monitoring requirements using DI / DO / AI cards
  • Protocol Support: They support a wide range of protocols including IEC 61850, DNP3.0, IEC 60870-101/104 and Modbus, as well as logic (IEC61131-3) and wireless communication interface options (GPRS/CDMA/3G/RF/Zigbee). This means that this single unit can perform multiple functions reducing the need for additional hardware, thus reducing capital costs.
  • Low Maintenance Cost: A single device also means minimization of maintenance, replacement, and inventory costs.
  • Rugged: They are rugged enough for substation use and comply with IEC 61850-3 in this regard.
  • Latency: They provide improved latency support through time synchronization and good time stamping resolution. Good latency is important in Distribution Automation applications where millisecond differences could be critical in fault isolation, diagnosis and problem resolution.

Key Features


Following are the key features:


General

  • Enabled with smart grid protocols IEC 60870-101/104, DNP3.0, Modbus and IEC 61850
  • Stores last 10,000 events
  • Multi-master communication capability (many-to-many protocol conversion capability)
  • Local/Remote communication over serial and Ethernet port
  • Automatic startup and initialization following power restoration
  • Time synchronization using IEC60870/DNP3/SNTP
  • Device management using SNMP/webserver
  • Time stamping resolution of 1 millisecond
  • Device and communication redundancy supported

Security

  • Communication security using IEC 62351
  • SSL based VPN with AES, DES or 3DES encryption over WAN/LAN
  • NERC-CIP security compliant

Reliability

  • IEC 61850-3 compliant hardware
  • Remote configuration and software update/FOTA

Scalability and upgradability

  • Inbuilt and plug-in I/O support
  • Custom card based on the requirement *
  • Internal and external pluggable cellular modem (GPRS/EDGE/CDMA/UMTS)
  • External pluggable RF modem
  • Option for expanding communication port*

* Customized module



Product Variants

SYNC 2100 has two product types

SYNC 2101: An RTU with built-in card having maximum of 20 DIs, 6DOs and 4AIs. It is ideal for asset monitoring of auto-reclosers, sectionalizers capacitor banks and Fault Passage Indicators (FPI). SYNC 2101 has numerous variants for outdoor use (high IP based rugged enclosure) as well as features like SMS send on power outage, advanced logic support, etc.

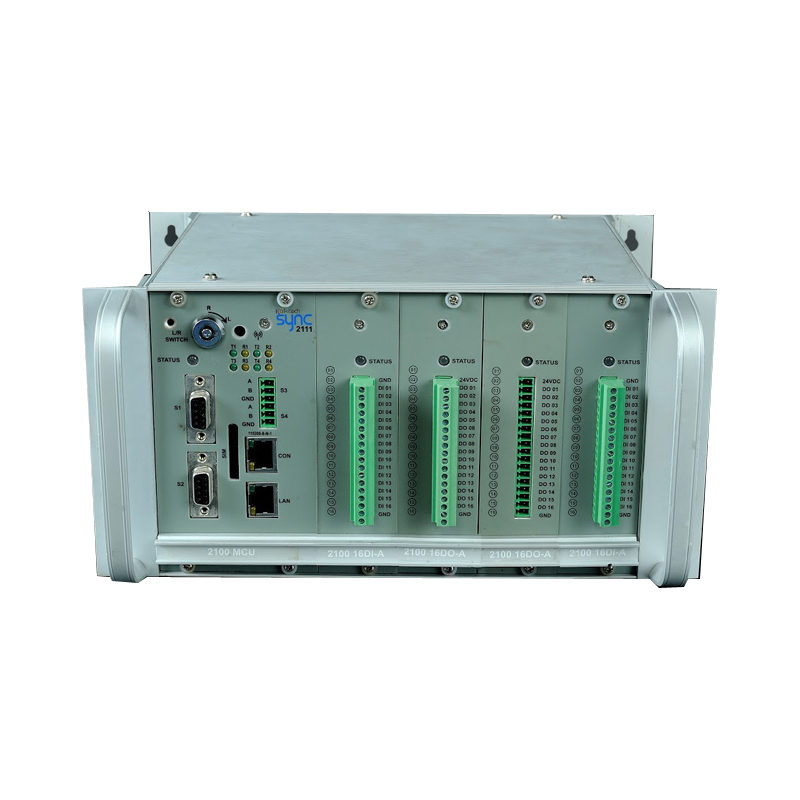

SYNC 2111: An RTU with add-on I/O card options, for up to 112 I/O points, of varying combinations of DI, DO and AI. The variants are best suited for applications with Ring Main Units (RMU), Distribution Transformers, and other assets having medium/ large I/O requirements. All models support a large number of substation protocols, and comply to high EMI/EMC standards.The SYNC 2111-M2 and M4 variants support a maximum of 4 I/O cards while the SYNC 2111-M3 and M5 variants support a maximum of 7 cards, which can be any of the combinations of:

  • 16 DI Card
  • 16 DO Card
  • 8 AI Card(unipolar)
  • 8 AI Card(bipolar)

SYNC 2101 Product Variants

  • SYNC 2101-M6: 8 DI (12/24VDC), 6 DO, 4 Unipolar AI
  • SYNC 2101-M7: 20 DI (12/24VDC), 6 DO, 4 Unipolar AI
  • SYNC 2101-M8: 14DI (12/24VDC). 6DO, 4 Unipolar AI, 4 Bipolar AI

SYNC 2111 Product Variants

  • SYNC 2111-M2: Single Ethernet port RTU with 4 I/O card slots
  • SYNC 2111-M3: Single Ethernet port RTU with 7 I/O card slots
  • SYNC 2111-M4: Dual Ethernet port RTU with 4 I/O card slots
  • SYNC 2111-M5: Dual Ethernet port RTU with 7 I/O card slots
