Overview

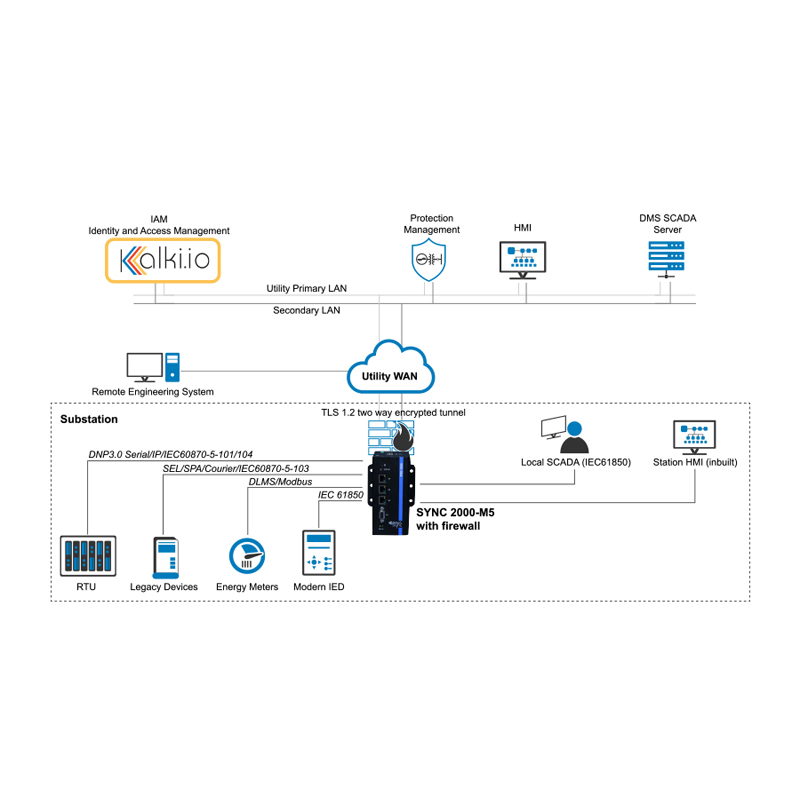

SYNC 2000 Secure Substation Gateways are rugged and secure devices ideal for substation automation and gateway applications. This security hardened gateway supports more than 40+ utility protocols with many to many protocol conversions of telemetry data. Substation gateway functionality has evolved to include protocol conversion combined with a security check point. Access to substation data is protected with a built-in firewall, secure role-based access control, security event logging, encrypted communications mandatory for a highly secured utility network. Additional features such as fault file collection and storage, local web-based monitoring and a built-in logic engine enables use of the platform for enhanced and decentralized automation applications.


General Features

• License option to enable standard protocols DNP3.0, IEC 60870-5 101/103/104, DLMS-COSEM, Modbus, IEC 61850 ed 2.0 and ed1.0
• Supports proprietary protocols such as SPABus, Courier, SEL and many more which are commonly used by utility legacy devices
• Many-to-many protocol conversions with multi-master connection support
• Fault file collection and conversion to Comtrade format
• Automatic startup, initialization following power restoration
• Device software and hardware status, restart notification and many more diagnostic points
• Remote management and monitoring using Kalki.io
• SNMP agent/manager support to enable network asset monitoring
• Transparent tunneling for remote management of end device
• Multiple options to synchronize time of the gateway and downstream devices (NTP/SNTP/IEC104/DNP etc.)
• Internal and external pluggable cellular modem
• Wide range of AC and DC power supply

Security Features

• NERC CIPv5 support*
• IEEE1686 compliant*
• Secure device access (Linux users)
• Physical port control
• Firewall protection
• Data encryption
• Password protection
• Software license protection
• Digital right management
• Role based access control using Attribute certificate based on IEC 62351- 8/OCSP
• Allows only signed firmware bundles from trusted sources
• Encrypted tunnel for configuration access and web-monitoring
• IEC 62351-3 transport layer security for TCP based utility protocol
• IEC 62351-5/Secure authentication for DNP3.0
• SSL based VPN with AES, DES or 3DES encryption over WAN/LAN
• All logs in syslog format
• Configurable alarms and events for security related incidents
• Integrated trusted platform module*

Models

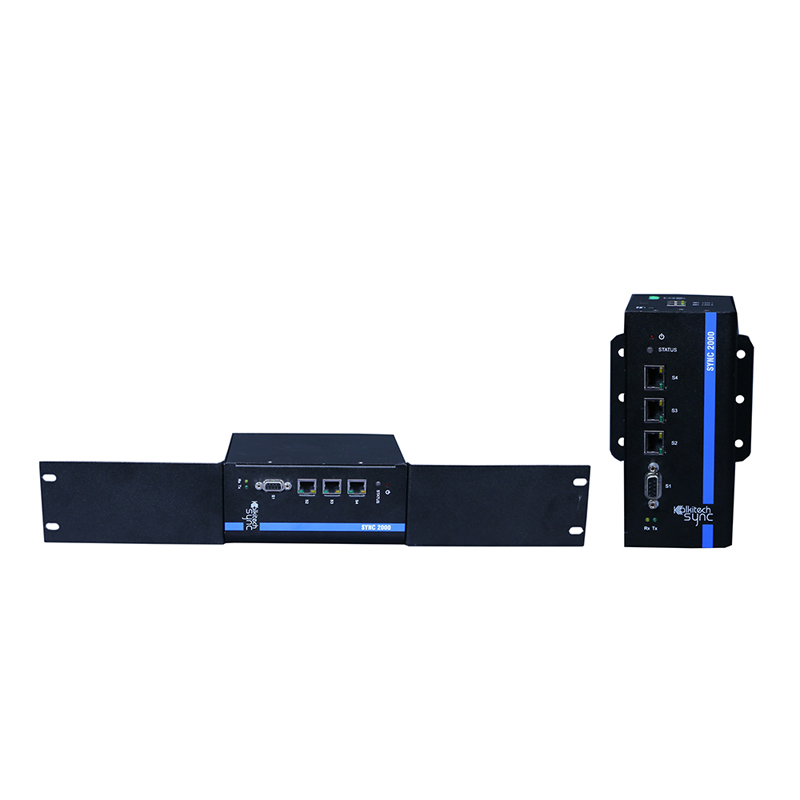

• SYNC 2000 – M5: 4 Serial, 2 Ethernet (Copper)
