SYNC 2000 - Protocol Gateway

Part No.: MPKK-SYNC-2000-Protocol-Gateway
It's a multi-protocol gateway used across utility applications.

產品介紹

Overview

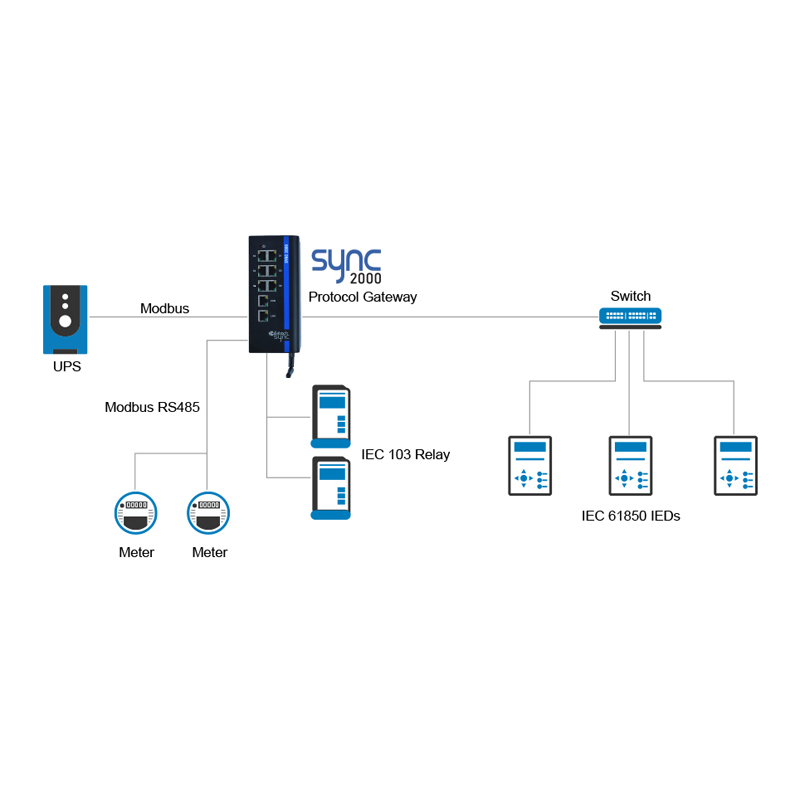

SYNC 2000 Protocol Gateways support more than 40+ protocols and is used across utility applications. It features substation rugged hardware with a real time embedded Linux operating system. DNP3.0, IEC 60870-5 101/103/104, DLMS-COSEM, Modbus are some of the standard protocols supported in the product in addition to common proprietary protocols like SPABus, Courer, SEL used by legacy utility grid devices.


Features


Software Features

  • Supports more than 40 utility protocols
  • Automatic startup, initialization with restart notification following power restoration
  • Multi-master communication capability
  • Up to 10000 data points supported#
  • Time sync based on NTP/SNTP/NMEA/protocol specific synchronization (IEC 104/DNP3.0 etc.)
  • Transparent/tunneling support for remote configuration and disturbance record collection
  • Remote device management from Kalki.io
  • SNMP Agent/ Manager for NMS integration
  • Can be used as terminal server

Reliability

  • IEC 61850-3 compliant hardware#
  • KEMA certified IEC 61850 server

Security

  • IEC 62351-3 transport layer security
  • IEC 62351-5/DNP3 secure authentication
  • SSL based VPN with AES, DES or 3DES encryption over WAN/ LAN

Enhanced Capability

  • Internal and external pluggable cellular modem (GPRS EDGE/ CDMA/HSPA/EVDO)
  • External pluggable RF/PSTN modem
  • Fiber Optic Ethernet#
  • Wide range of AC and DC power supplies

Models

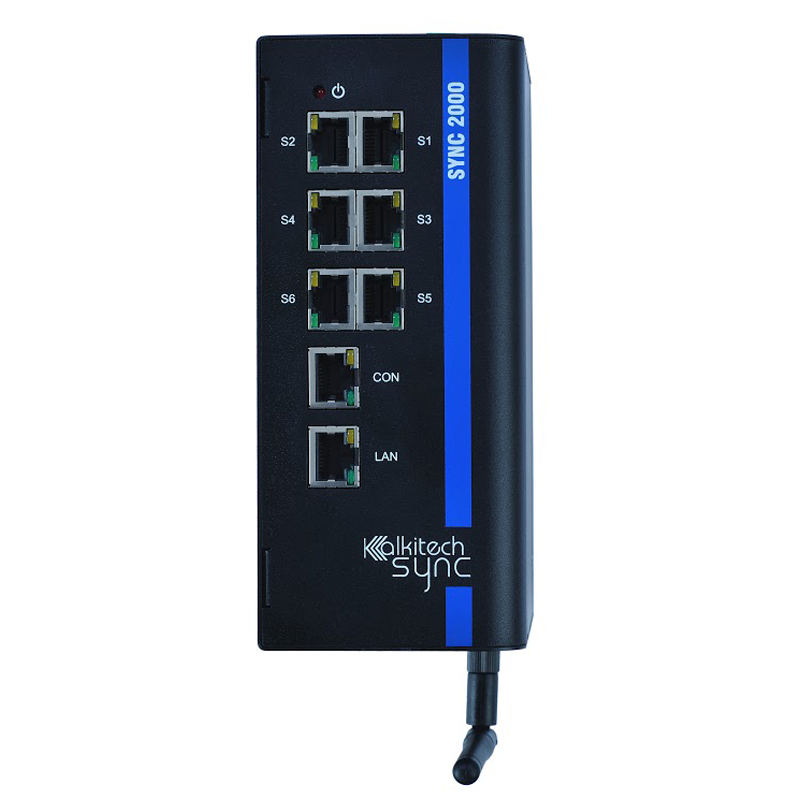

  • SYNC 2000 - M1: 2 Serial, 1 Ethernet (Copper)
  • SYNC 2000 - M2: 6 Serial, 1 Ethernet (Copper)
  • SYNC 2000 - M4: 6 Serial, 1 Ethernet (Fiber Optic)
