產品介紹
Technical Specifications
Module
| Radar SoC | AWR1843 77~79-GHz FMCW |
| Debug Probe | XDS110 (Optional) |
| Dimensions | 2 × 3.3 inches |
Interface
| CAN Bus |
2.0 A/B or FD, 500/1000 Kbps Default: CAN 2.0 A / 1000 Kbps |
| USB CDC |
Data / Flash Port 921600 / 115200 bps |
Radar Specification 規格比較
| 項目 | Mid Range | Ultra Short Range |
|---|---|---|
| Max Range | 150 m | 30 m |
| Range Resolution | 68.2 cm | 4.3 cm |
| Max Velocity | 150 km/h | 36 km/h |
| Velocity Resolution | 0.11 m/s | 0.32 m/s |
Structure Diagram

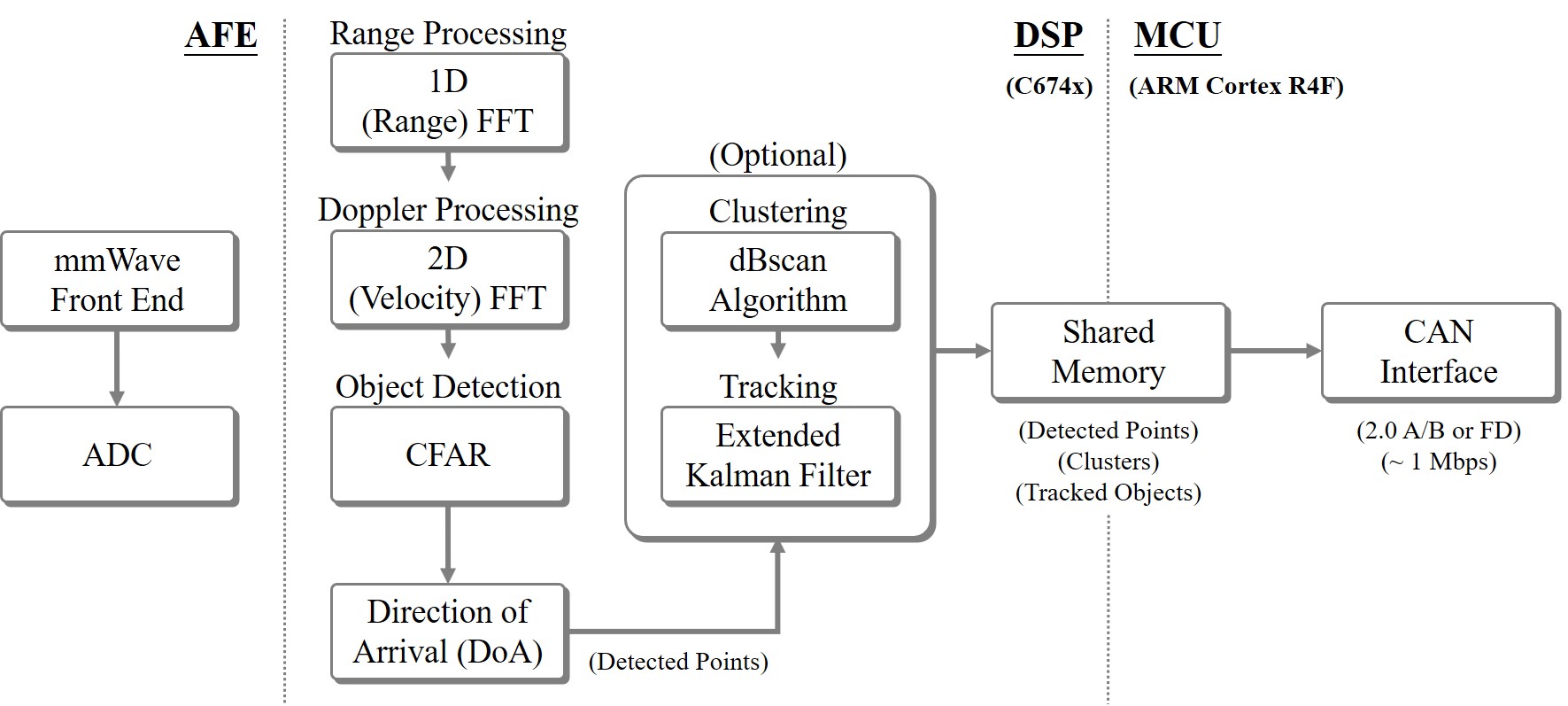

Data Path (Processing Chain)
▲ 訊號自天線接收後，經處理鏈輸出偵測結果的完整流程

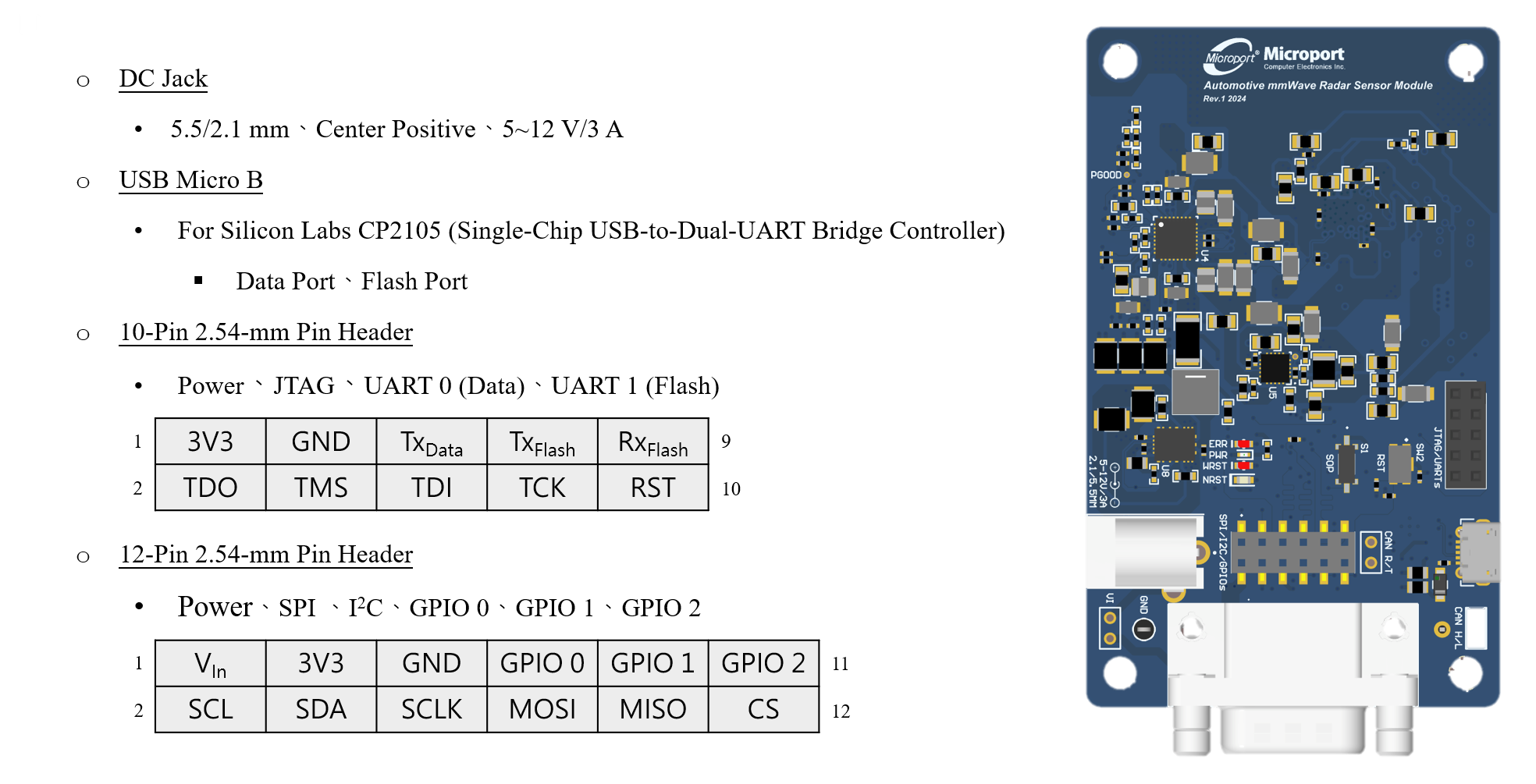

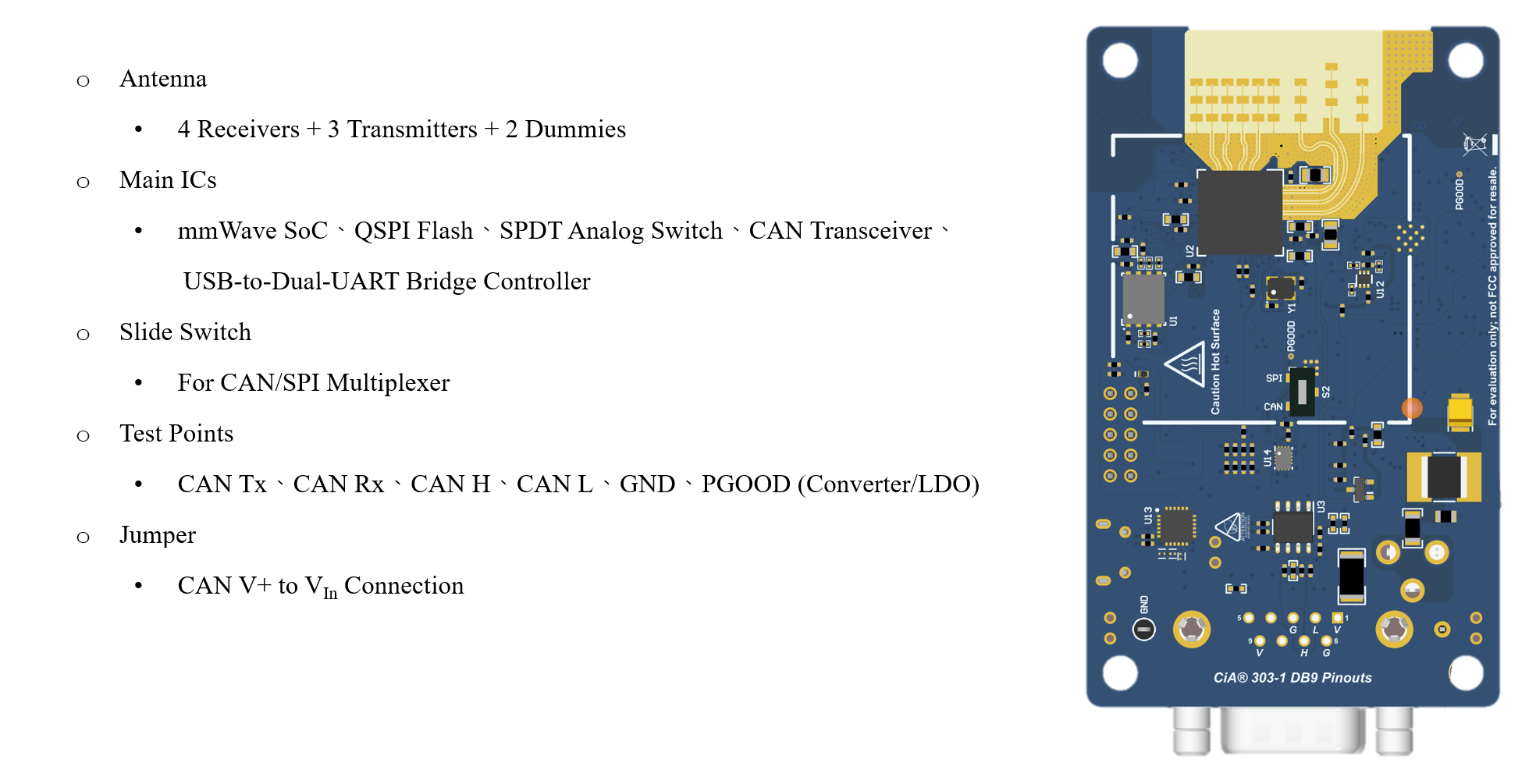

PCB: Top Side
.png)

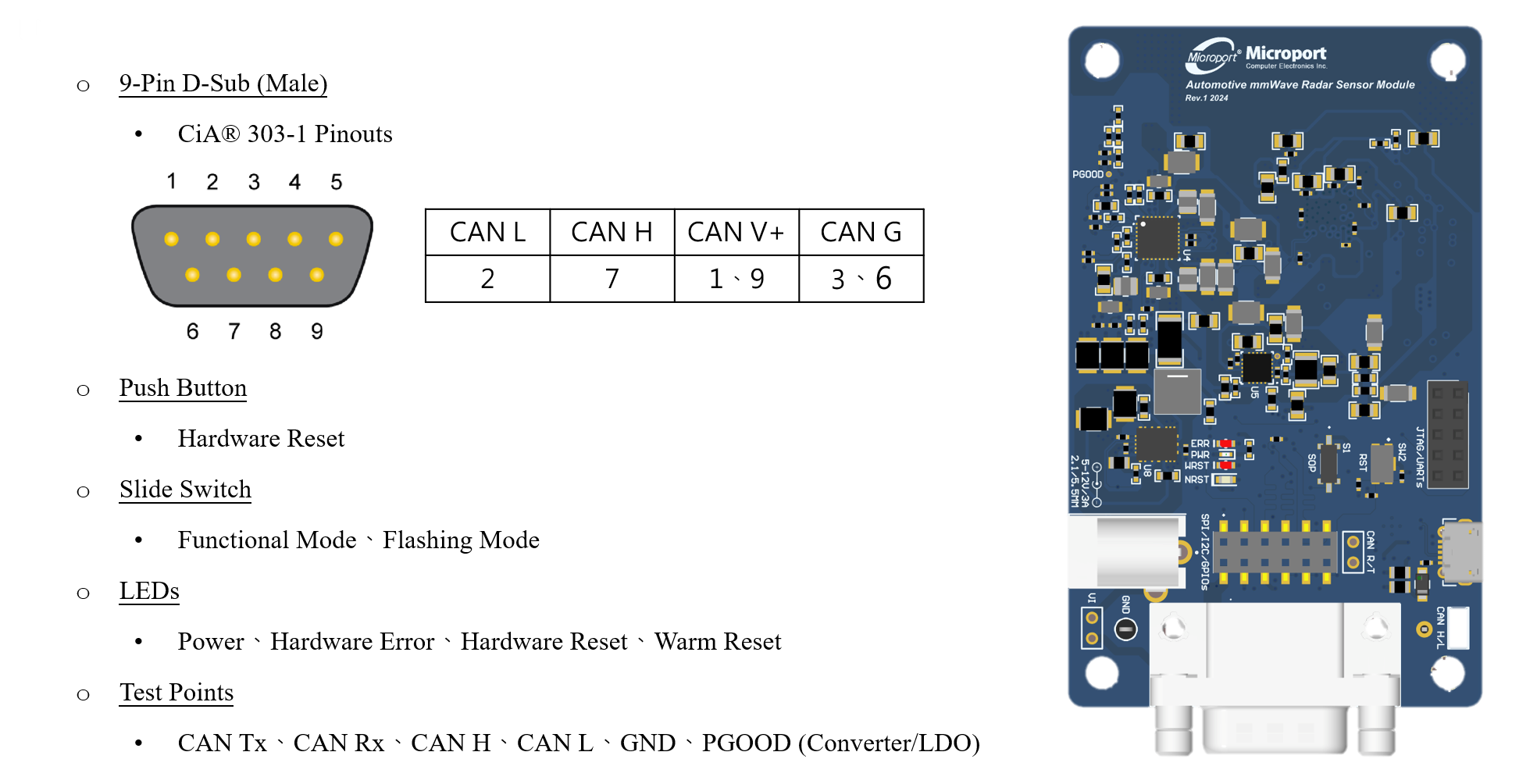

PCB: Bottom Side
Software

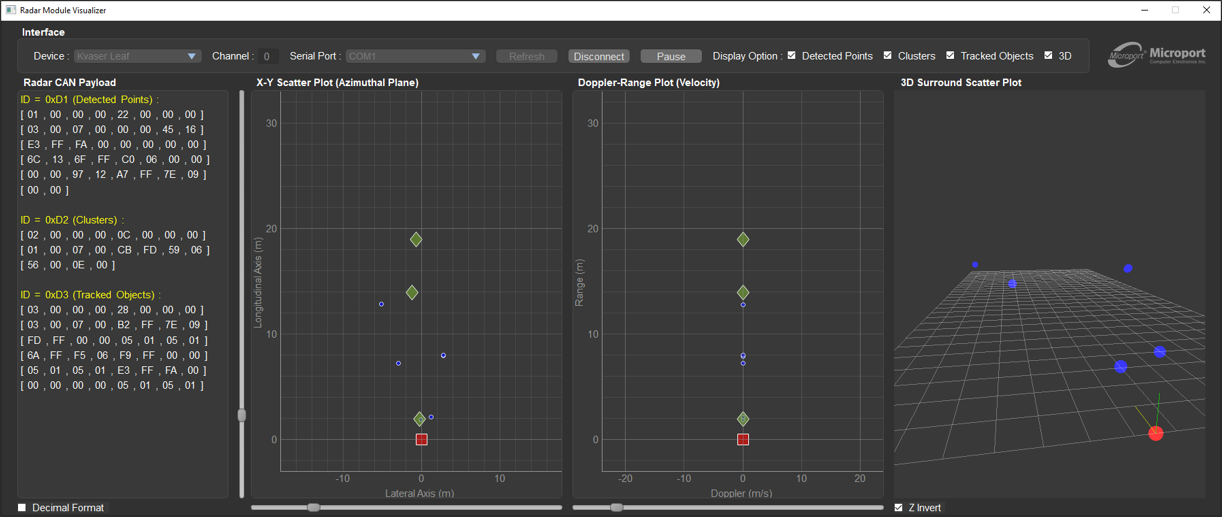

Radar Data Visualizer GUI
▲ 即時顯示雷達偵測點雲與物件追蹤結果，方便開發者除錯與驗證
