Netbridge

A versatile vehicle network interface with 4 CAN channels, LIN/J2602 and includes SAE J2534 device drivers. Netbridge provides incomparable engineering development and test equipment capabilities with access to standards-based vehicle applications!



Key Features

  • 4 High-Speed CAN Channels
  • 1 Single Wire CAN Channel,
  • Simulated LIN Master and/or Slave nodes
    • Supports LIN Bus versionsl 1.2, 1.3, “2.x”
  • Realtime access on signal and frame data (read/write)
  • Multi-Protocol Support - Diagnostics On CAN & J1939
  • Selectable Speed of CAN Channels (Up to 1Mbps)
  • Supports J2534 Diagnostics and Reflashing Applications
  • Rest Bus Simulation, ECU test, Automated Test Systems, Software Development
  • LED Indicators for Each CAN Channel
  • Pin Assignment Label for Easy Configuration
  • High-Speed USB Communication to PC
  • Rugged Aluminum Housing with Protective Rubber Bumpers

Benefits

  • Simultaneous Data Transmission and Reception On All CAN Channels
  • Validated and Tested for Use On High Bandwidth CAN Networks
  • Monitor operation with timestamp recording
  • Software to Validate Connectivity to Networked Devices (J2534)
  • Control bus from your pc application via DLL.
    • Compatible with LabView, Matlab, C#, Visual C, Visual Basic
  • Easy to Write Software
    • Complete J2534 Sample Source Code
    • Load DLL, Connect, Read, Write, Close
  • Electrically Hardened (Reverse Polarity, Transients)
  • Worry-Free, Industry-Best 2 Year Warranty!

Differentiation

The netbridge offers the lowest price per CAN channel on the market, providing a value-leading solution with fully functional network communications...all in a single ruggedized device.


Technical Specifications

  • CAN Compliance: CAN 2.0A (11-bit ID), CAN 2.0B (29-bit ID), ISO11898
  • Protocol Support: SW CAN (SAE J2411), SAE J1939, LIN, J2602 Diagnostics On CAN (ISO15765)
  • Device Drivers: SAE J2534-1
  • HS-CAN Bitrate: 5-1000 Kbps, Auto Baud Capable
  • LED Indicators: Power, PC, CAN1, CAN2, CAN3, CAN4 Traffic
  • OS Compatibility: Vista, Win7 (32/64), and Win8 (32/64), Win10
  • USB-PC Interface: USB 2.0
  • Processor: 90 MIPS RISC Based Design
  • Firmware: Field Upgradable
  • Physical: 6.1” x 2.5” x 1.2”
  • Operating Range: -40°C to +85°C
  • Operating Voltage: 9 - 32 VDC; Industrial Systems 24 VDC Compatible
  • Operating Current: 250mA Max
  • Electrical Isolation: Transient & Reverse Voltage Protected
  • Industry Compliance: CE, RoHs

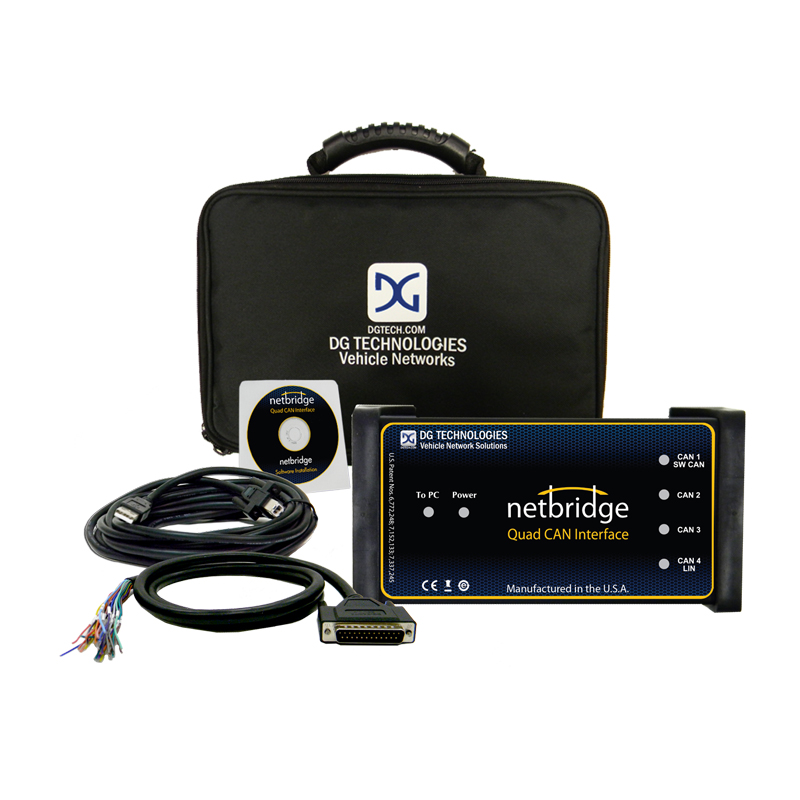

This is the standard Netbridge Kit that includes:

  • DG-NBRIDGE
  • DG-DPA-15U-CABLE
  • DG-SAINT2-CABLE
  • Software and Drivers CD
  • QuickStart Guide
  • SCI1238-Carrying Case
