Part No.: MPDG-400-10733



The next generation tool providing BUS ENGINE compatibility and BUS MONITOR usability for EOL testing, ECU prototyping, data logging, bus analysis, simulation, validation, diagnostics, reprogramming and more!

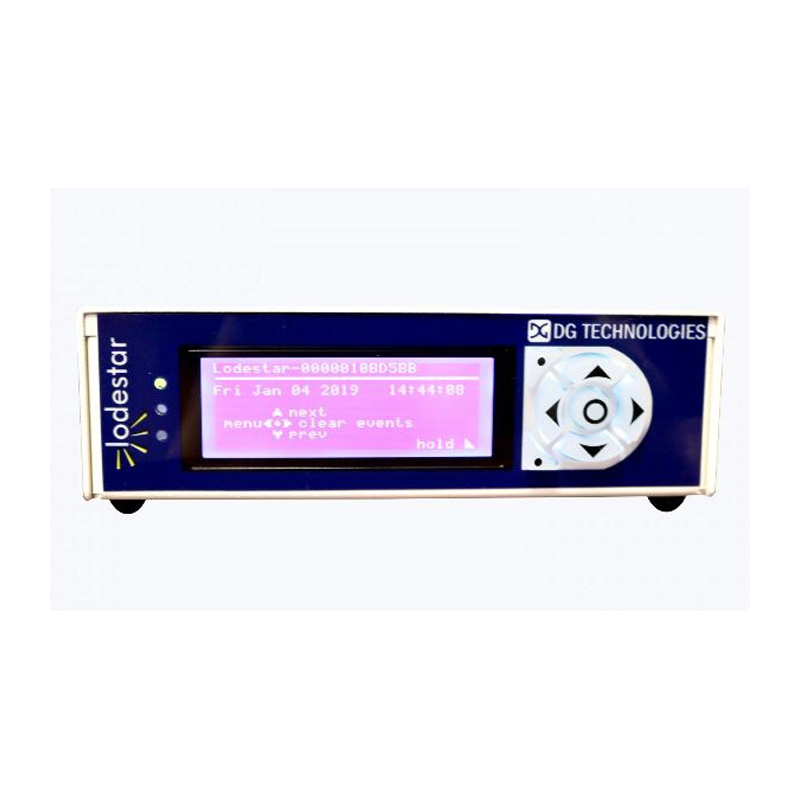

  • LCD Screen
  • 6 High Speed CAN/CAN FD Channels
  • 1 Single Wire CAN Channel
  • 1 Fault Tolerant CAN Channel
  • 2 Local Interconnect Network (LIN) Channel
  • 100 Mbps Ethernet Connectivity
  • Wi-Fi Enabled
  • USB Connectivity
  • On-board Media Storage
  • Can be powered by USB, the vehicle, or 12V Power Adapter (included)

Kit Contains

  • lodestar Unit
  • Power Adaptor
  • USB Cable
  • Quick Start Guide
  • Carrying Case
  • Includes: Analysis Software Included (Hercules), Data Logger Software (Gryphon Logger Config), Bus Engine Driver, J2534 & RP1210 API Compatible
  • Compatible with: Bus Monitor, Busmaster, Matlab, LabView, DPS Tools
